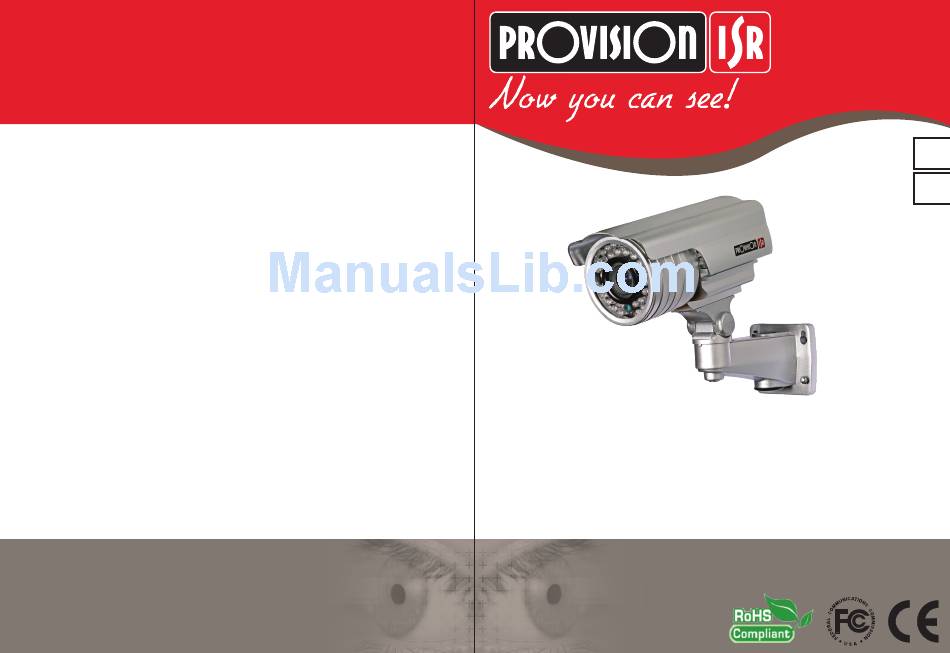

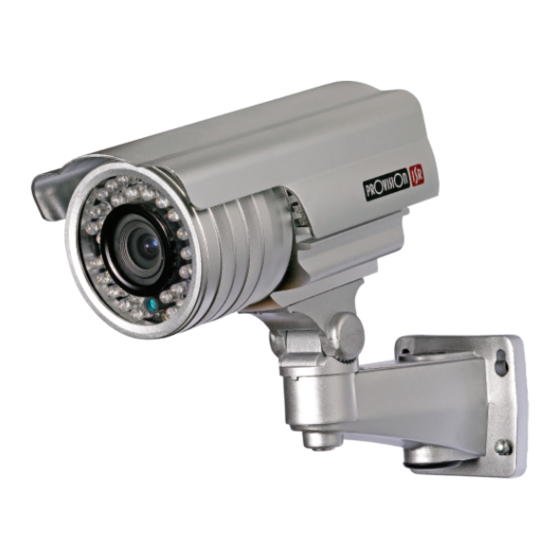

Digital CCTV Camera
Effio-E Infra Red
USER MANUAL
English / Spanish
www.provision-isr.com
www.provision-isr.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Effio-E Infra Red and is the answer not in the manual?

Questions and answers

Summary of Contents for Provision ISR Effio-E Infra Red

  • Page 1 Digital CCTV Camera Effio-E Infra Red USER MANUAL English / Spanish www.provision-isr.com www.provision-isr.com...
  • Page 2: Risk Of Electric Shock Do Not Open

    Content English Manual Manual en Español Note: WARNING In order to avoid electrical RISK OF ELECTRIC SHOCK DO NOT OPEN shock or re, please use Note: Only professional technicians is proper power according to allowed to open the front or back cover the manual.
  • Page 3: Table Of Contents

    Content Features • 650TV Lines. Features • 2D-DNR Precautions • OSD control. Structure and Components • 0.03 Lux sensitivity System connection • Motion detection OSD Menu • HLC OSD Menu Operation • Color rolling control 1) LENS • Privacy masking 2) SHUTTER/AGC Precautions 3) WHITE BAL...
  • Page 4: Structure And Components

    System connection Structure and Components Video Cable Monitor Shield IR Led Lens DC 12V Use one camera and one monitor Color Camera Monitor AES Auto Electronic Shutter Switch (Auto) BLC Backlight Compensation Switch (Auto) AGC Auto Gain Control Switch (Auto) AWB Auto White Balance Switch (Auto) Video Cable: Power Supply Socket...
  • Page 5: Osd Menu

    OSD Main Menu OSD Menu Main Menu ▲ - Joystick Up – Moves the cursor upwards. Lens ▼ - Joystick Down – Moves the cursor downwards. Auto/Manual ◄ - Joystick Left – Moves the cursor to the left/change selection. Shutter ►...
  • Page 6: Osd Menu Operation

    - Use ▲ or ▼to scroll the setup page. OSD Menu Operation AUTO IRIS LENS The LENS menu allows you to set the lens which attached to You’re camera. TYPE MANUAL IRIS LENS: Where the aperture is fixed or set manually by MODE AUTO the user.
  • Page 7: Shutter/Agc

    2) a) SHUTTER/AGC - Use ◄ or ► to select Auto and press O to enter the AUTO SETUP menu. Here you can control SHUTTER function such as brightness level and AGC mode. AUTO SETUP The shutter – Controls the amount of light according to your own environment.
  • Page 8 b) From the main menu - Use ▲ or ▼ to move up and down in the menu. SHUTTER/AGC MANUAL SETTINGS. - Use ◄ or ► to change SHUTTER value between 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000. - Scroll to SHUTTER/AGC using ▲ or ▼. - Use ◄...
  • Page 9: White Bal

    a) ATW 3) WHITE BAL Auto Tracing White Balance - Auto white balance of color, which White balance adjustment - adjust the white balance of color tracks the changes of white at the pictures in real time, comparing it necessary for the correct reproduction of colors including white as with standard white color and reproduce the colors without the need white and other colors based on it.
  • Page 10: Backlight

    b) USER 1/USER 2 4) BACKLIGHT Manually adjusts blue color lever and red color level. You can select between the special backlights modes – BLC or HLC B-GAIN – Blue color level. according to your envioroment or turn it off. R-GAIN –...
  • Page 11: Pict Adjust

    - Scroll to PICT ADJUST using ▲ or ▼. HLC (highlight compensation) (function that suppresses strong headlights at night and improves visibility to provide clear images with superb picture quality. SETUP MENU LENS AUTO SHUTTER/AGC AUTO WHITE BAL BACKLIGHT PICT ADJUST MOTION DET NEXT EXIT...
  • Page 12: Atr (Adaptive Tone Reproduction)

    - Use ◄ or ► to LUMINANACE/CONTRAST value between 6) ATR (Adaptive Tone Reproduction) LOW/MID/HIGH. improves the ability to create more detailed picture in both high and low luminance areas exist in the same picture. - Scroll to NEXT using ▲ or ▼. Here you can adjust luminance level (refers to both high and low luminance) and contrast level according to your envioronment.
  • Page 13: Privacy

    8) DAY/NIGHT 7) PRIVACY This option allow you to adjust your camera to the day or night mode This function is aiming at the protection of personal privacy, you can to give maximum quality of picture. select up to 4 parts on the screen to be masked with colored cover size and location of the area is also adjustable.
  • Page 14 a) AUTO sub menu b) B/W (Black/White) sub menu BURST: Selects whether to output the burst signal when the B/W For setting BURST mode ON/OFF. (NIGHT mode established (forcibly) status has been - Use ◄ or ► to change parameters value. identified.
  • Page 15 NR MODE - This function is used to set the noise reduction mode. 9) NR C LEVEL - Sets the Y filter strength. This function is used to set the noise reduction function. Y LEVEL - Sets the Y filter strength. - Scroll to NR using ▲...
  • Page 16: Camera Id

    10) CAMERA ID CAMERA ID This option allows you to select a name for your camera and select rather it will be displayed or not. If selected off the name will not be displayed. ABCDEFGHIJKLMNOPQRSTUV - Scroll to CAMERA ID using ▲ or ▼. WXYZ0123789-!”#$%&’...
  • Page 17: Sync

    11) SYNC 12) LANGUAGE This option is not adjustable – it’s always on. The Line-Lock (L/L) You can select different languages for the OSD to be displayed in: feature allows the camera to synchronize its frame rate to the power English, Chinese, Deutsch, France, Russian, Portuguese, Spanish.
  • Page 18: Camera Reset

    Specifications 13) CAMERA RESET Reset camera to default settings. MODEL I2-370CS - Scroll to CAMERA RESET using ▲ or ▼. 1/3” Sony DS CCD (PAL:ICX673AK/NTSC:ICX672AK) Image Sensor SETUP MENU CXD4127 DSP System Effective Pixels PAL:976(H)x582(V) / NTSC:976(H)x494(V) PRIVACY Scanning System DAY/NIGHT AUTO PAL/NTSC...
  • Page 19: Specifications

    Specifications Specifications MODEL I3-370CSVF MODEL I4-370CS I4-370CSVF 1/3” Sony DS CCD (PAL:ICX673AK/NTSC:ICX672AK) 1/3” Sony DS CCD (PAL:ICX673AK/NTSC:ICX672AK) Image Sensor Image Sensor CXD4127 CXD4127 DSP System DSP System Effective Pixels Effective Pixels PAL:976(H)x582(V) / NTSC:976(H)x494(V) PAL:976(H)x582(V) / NTSC:976(H)x494(V) Scanning System Scanning System PAL/NTSC PAL/NTSC Horizontal Resolution...

This manual is also suitable for:

I2-370csI3-370csvfI4-370csI4-370csvf
