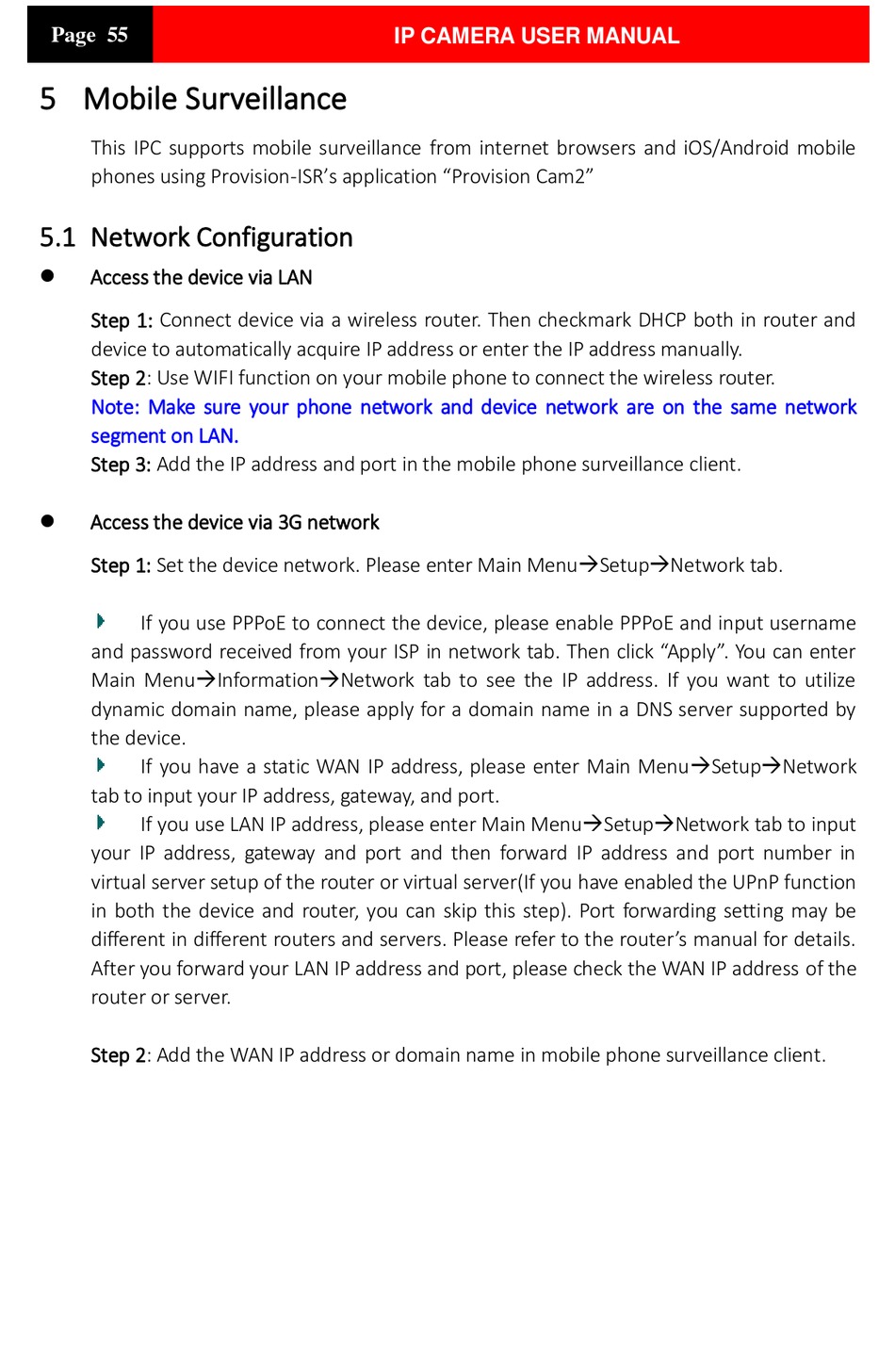

Mobile Surveillance; Network Configuration - Provision ISR IP Series User Manual

Page 55

5 Mobile Surveillance

This IPC supports mobile surveillance from internet browsers and iOS/Android mobile
phones using Provision-ISR's application "Provision Cam2"

5.1 Network Configuration

⚫
Access the device via LAN
Step 1: Connect device via a wireless router. Then checkmark DHCP both in router and
device to automatically acquire IP address or enter the IP address manually.
Step 2: Use WIFI function on your mobile phone to connect the wireless router.
Note: Make sure your phone network and device network are on the same network
segment on LAN.
Step 3: Add the IP address and port in the mobile phone surveillance client.
⚫
Access the device via 3G network
Step 1: Set the device network. Please enter Main Menu→Setup→Network tab.
If you use PPPoE to connect the device, please enable PPPoE and input username
and password received from your ISP in network tab. Then click "Apply". You can enter
Main Menu→Information→Network tab to see the IP address. If you want to utilize
dynamic domain name, please apply for a domain name in a DNS server supported by
the device.
If you have a static WAN IP address, please enter Main Menu→Setup→Network
tab to input your IP address, gateway, and port.
If you use LAN IP address, please enter Main Menu→Setup→Network tab to input
your IP address, gateway and port and then forward IP address and port number in
virtual server setup of the router or virtual server(If you have enabled the UPnP function
in both the device and router, you can skip this step). Port forwarding setting may be
different in different routers and servers. Please refer to the router's manual for details.
After you forward your LAN IP address and port, please check the WAN IP address of the
router or server.
Step 2: Add the WAN IP address or domain name in mobile phone surveillance client.
IP CAMERA USER MANUAL
