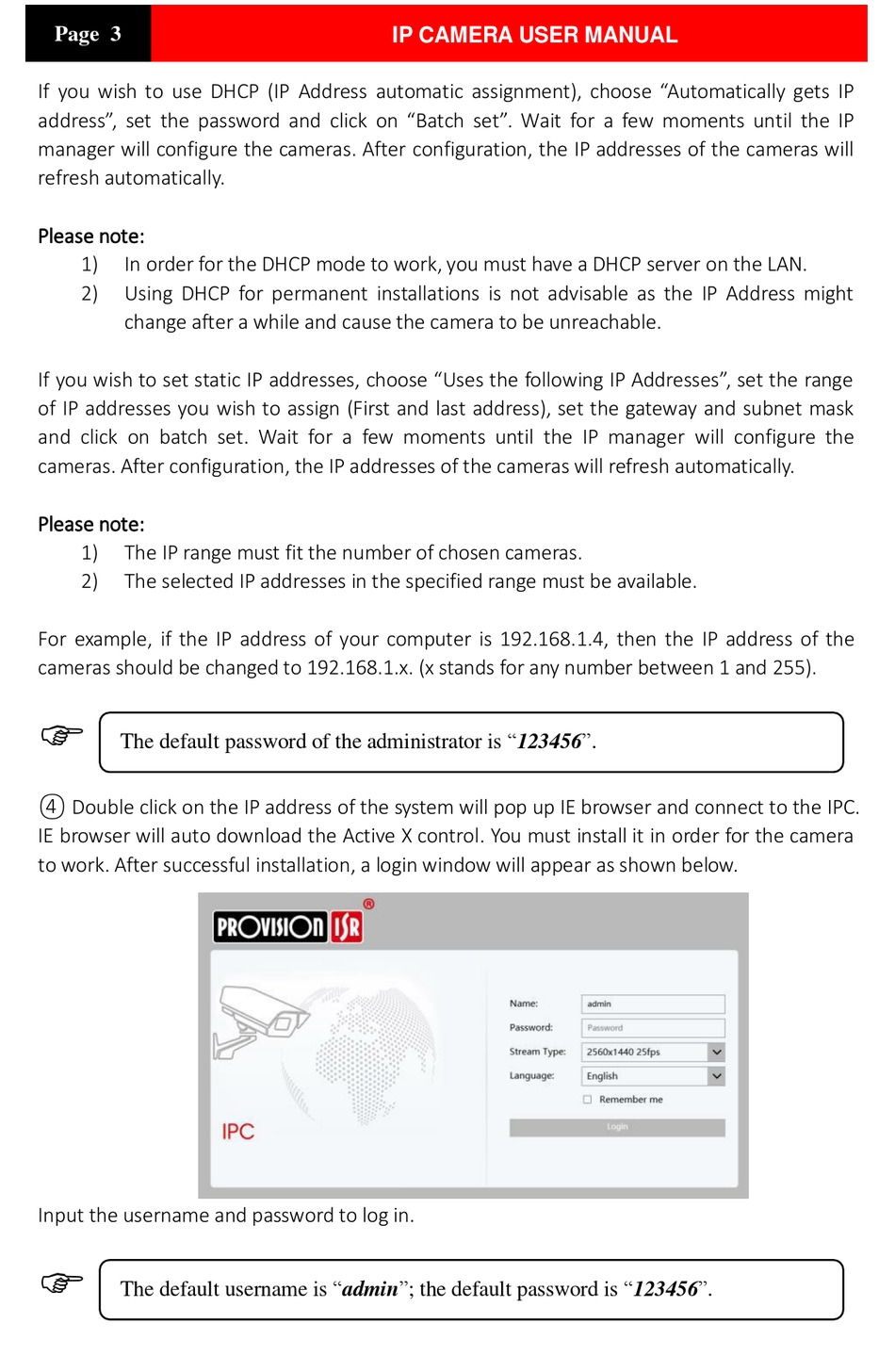

Provision ISR IP Series User Manual page 8

Page 3
If you wish to use DHCP (IP Address automatic assignment), choose "Automatically gets IP
address", set the password and click on "Batch set". Wait for a few moments until the IP
manager will configure the cameras. After configuration, the IP addresses of the cameras will
refresh automatically.
Please note:
1) In order for the DHCP mode to work, you must have a DHCP server on the LAN.
2) Using DHCP for permanent installations is not advisable as the IP Address might
change after a while and cause the camera to be unreachable.
If you wish to set static IP addresses, choose "Uses the following IP Addresses", set the range
of IP addresses you wish to assign (First and last address), set the gateway and subnet mask
and click on batch set. Wait for a few moments until the IP manager will configure the
cameras. After configuration, the IP addresses of the cameras will refresh automatically.
Please note:
1) The IP range must fit the number of chosen cameras.
2) The selected IP addresses in the specified range must be available.
For example, if the IP address of your computer is 192.168.1.4, then the IP address of the
cameras should be changed to 192.168.1.x. (x stands for any number between 1 and 255).

The default password of the administrator is "123456".
④ Double click on the IP address of the system will pop up IE browser and connect to the IPC.
IE browser will auto download the Active X control. You must install it in order for the camera
to work. After successful installation, a login window will appear as shown below.
Input the username and password to log in.

The default username is "admin"; the default password is "123456".
IP CAMERA USER MANUAL
