Network Configuration; Tcp/Ip - Provision ISR IP Series User Manual

Page 37
2. Set the application scene. First lets understand the vlues:
a.
b.
c.
d.
We have prepared 2 presets for you:
a.
b.
Use "Customize" to configure your own setting.
Eventually, set the analytic schedule in the schedule tab.
4.5.7 Analytics and Live Display.
Once enabled, the Analytics will appear on the camera's live interface. It will only appear on
Ossia devices running v1.4.3 if configured so.

4.6 Network Configuration

Network configuration includes eight submenus: Port, IP Address, Server Configuration, IP
Notify, DDNS Config, RTSP, UPnP, Mail Setting, and FTP.

4.6.1 TCP/IP

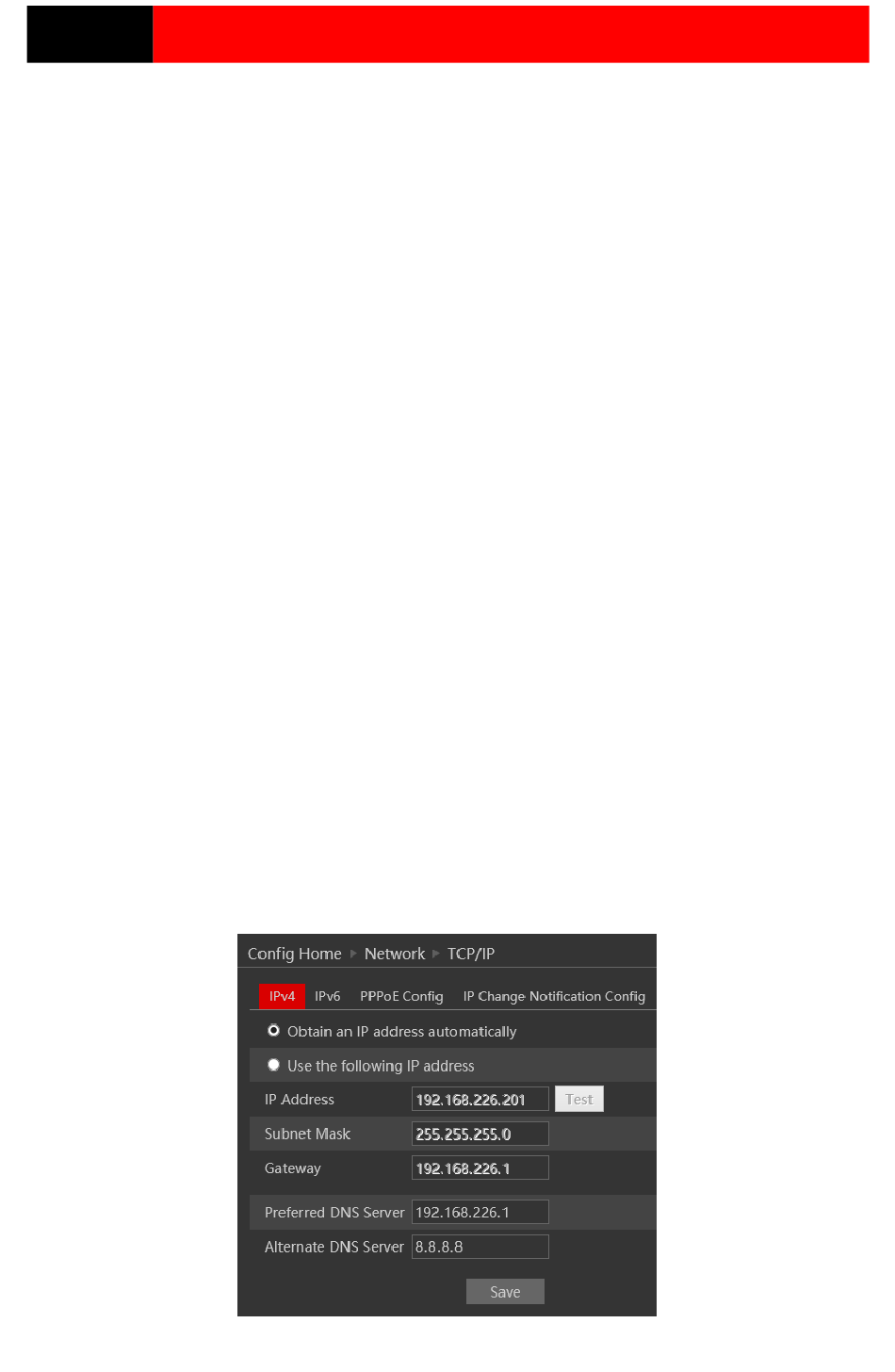

Go to "Network" → "TCP IP" tab to see the interface shown below. The first and default tab is
IPv4 Protocol. There are two options for IP setup: obtain an IP address automatically by DHCP
or a defined IP address. You may choose one of the options as required.
Snapshot intervals: The time between each snapshot capturing of the
same face.
Snapshot Number: Limit the number of snapshot taken of the same face.
Proximity Priority Comparison: Give priority to detect faces closer to the
camera (Bigger faces are closer to the camera)
Comparison during free time (Future Development).
Access Control: Very fast face sampling intervals (0.5 Seconds) without a
limit. (65535) and priority to closer faces.
Security Monitoring: Slower sampling intervals (30 Seconds) with a
snapshot limit. (3) and no priority to closer faces.
IP CAMERA USER MANUAL
