Summary of Contents for Provision ISR IP Series

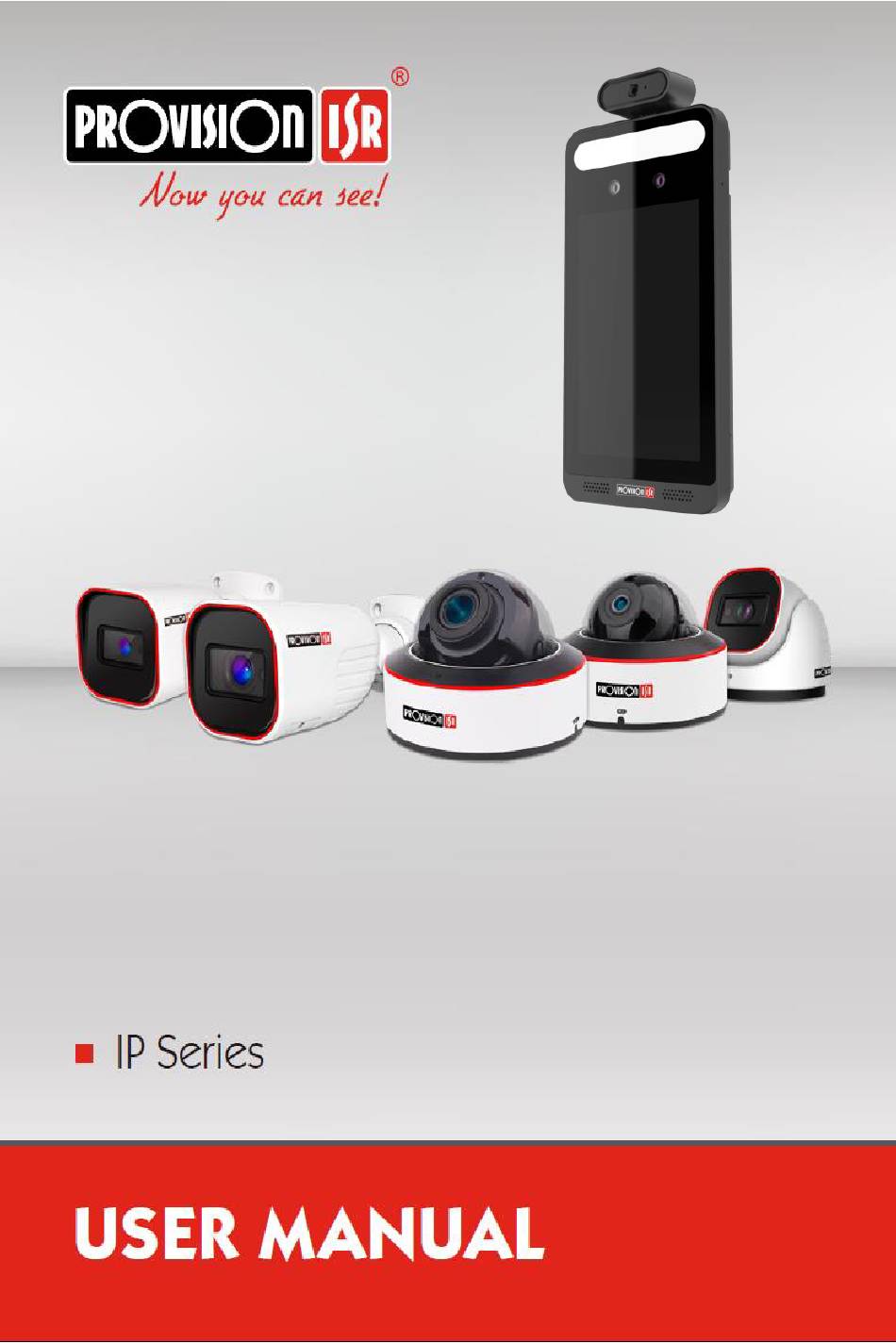

  • Page 2 EC-001 v5.x User Manual For H.265 IP Camera All rights reserved...
  • Page 3 Notes ◼ Before operating the camera, we strongly advise users to read this manual and keep it for later use. ◼ Please use the specified power supply to connect. ◼ Avoid incorrect operation, shock vibration, heavy pressing which can cause damage to the product.

  • Page 4: Table Of Contents

    IP CAMERA USER MANUAL Table of Contents Introduction ......................1 IE Remote Access ....................2 LAN ..........................2 Access through IP-Manager ................2 2.1.1 Direct Access through IE ..................4 2.1.2 WAN ..........................5 Live Preview ......................6 The Live Preview Interface ....................6 1.1.1 .............................
  • Page 5 IP CAMERA USER MANUAL RTSP ......................36 4.6.5 4.6.6 UPnP ......................37 Email Setting ....................37 4.6.7 FTP ....................... 39 4.6.8 HTTPS ......................39 4.6.9 Security ........................41 4.1.1 User ......................41 Online Users....................42 4.1.2 4.1.3 Block and Allow Lists ..................43 Security Management ..................

  • Page 6: Introduction

    Page 1 IP CAMERA USER MANUAL Introduction This IPC (short for IP Camera) is designed for high-performance CCTV solutions. It adopts the state-of-the-art video processing chips and utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure that this system will be extremely stable and reliable.

  • Page 7: Ie Remote Access

    Page 2 IP CAMERA USER MANUAL 2 IE Remote Access You may connect IPC via LAN or WAN. In this manual, we will use IE v11 for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IPC: 1.
  • Page 8 Page 3 IP CAMERA USER MANUAL If you wish to use DHCP (IP Address automatic assignment), choose “Automatically gets IP address”, set the password and click on “Batch set”. Wait for a few moments until the IP manager will configure the cameras. After configuration, the IP addresses of the cameras will refresh automatically.

  • Page 9: Direct Access Through Ie

    Page 4 IP CAMERA USER MANUAL 2.1.2 Direct Access through IE The default network settings are as shown below: IP address: 192.168.226.201 Subnet Mask: 255.255.255.0 Gateway: 192.168.226.1 HTTP: 80 Data port: 9008 You may use the above default settings when you log in the camera for the first time. ①...

  • Page 10: Wan

    Page 5 IP CAMERA USER MANUAL ② Open the IE browser and input the default address of IPC and confirm. The IE browser will download Active X control automatically. ③ After downloading and installing the Active X control, the login dialog box will appear. ④...

  • Page 11: Live Preview

    Page 6 IP CAMERA USER MANUAL ④ Go to the router’s management interface through IE browser to forward the IP address and port of the camera to the “Virtual Server”. In the picture example below you will see an example of the setting as if the IPC IP address is “192.168.6.6” and the ports are default (9008 &...

  • Page 12: Ipc Configuration

    Page 7 IP CAMERA USER MANUAL Icons and operation buttons: Icon Description Icon Description Actual Size Digital Zoom-Out Fit to screen – MVF Controls* True Proportions Fit to screen - Face Detection Bar Stretch Motion Detection Full screen indicator Enable/Disable SD Card recording live view indicator...
  • Page 13 Page 8 IP CAMERA USER MANUAL The following table will explain the available detail field. Parameter Meaning Name of the device – can be modified from Device name the OSD settings Product Model The model of the device Brand The brand of the camera Software version The current software version Software build date...

  • Page 14: Date & Time Configuration

    Page 9 IP CAMERA USER MANUAL 4.1.2 Date & Time Configuration Setting steps: 1. Go to Config→Date & Time menu as shown below. 2. Set the time zone. 3. Enable DST mode if required. DST settings are already configured according to your time zone.

  • Page 15: Storage

    Page 10 IP CAMERA USER MANUAL (Local interface only). Smart snapshot will save analytics pictures (Face detection/recognition) on the pictures local folder 4.1.4 Storage The SD card feature allows you to insert an SD card into the camera and enable the camera to operate with a local storage.
  • Page 16 Page 11 IP CAMERA USER MANUAL The next tab is “Record”. Click on it to set the video recording parameters and schedule. The video parameters are as follows: Parameter Meaning Record stream Which video stream will be used for record Pre-recording time The duration of video prior to the recording trigger Cycle recording...
  • Page 17 Page 12 IP CAMERA USER MANUAL The snapshot parameters are as follows: Parameter Meaning Image Format The image format is JPEG Resolution Set the snapshot resolution Image quality The quality of the image reflects on its size. Snapshot Interval The duration between two snapshots Snapshot Quantity The total number of snapshots to be taken after a trigger Scheduled snapshots...

  • Page 18: Video Configuration

    Page 13 IP CAMERA USER MANUAL 4.2 Video Configuration Camera Configuration includes five submenus: Display Configuration, Video Stream, OSD Config, Video Mask and ROI Config. 4.2.1 Camera Configuration Setting steps: Go to “Video Configuration” → “Display” interface as shown below.

  • Page 19: Video/Audio

    Page 14 IP CAMERA USER MANUAL The display parameters are as follows: Parameter Meaning Config file* You can set an individual configuration for Day and night. Common is used for both Brightness Set the image brightness Contrast Set the image contrast Set the image hue Saturation Set the image saturation...

  • Page 20: Osd Configuration

    Page 15 IP CAMERA USER MANUAL Resolution: The higher the resolution is, the bigger the image is. Frame rate: The higher the frame rate is, the more fluent the video is. However, more storage room will be taken up. Bitrate type: CBR and VBR are available. CBR (Constant Bit-Rate) means that no matter how what the video resources are, the compression bitrate will be constant as configured.

  • Page 21: Video Mask

    Page 16 IP CAMERA USER MANUAL custom OSD over the image on the left side to set their position. Then press the “Save” button to save the settings. 4.2.4 Video Mask You can set 4 mask areas at most. To set up video mask 1.

  • Page 22: Screen Brightness

    Page 17 IP CAMERA USER MANUAL 4.2.5 Screen Brightness Set the brightness level of the EC-001 LCD screen. 4.2.6 White Light Control The EC-001 is equipped with soft white light that assist the unit to perform the face detection/recognition tasks. The white light has 3 modes: Auto: the light will turn on automatically based on the surrounding light conditions Manual: The light is on permanently.

  • Page 23: Alarm Configuration

    Page 18 IP CAMERA USER MANUAL 4.3 Alarm Configuration Alarm configuration includes four submenus: Motion Detection, General Fault, Alarm in and Alarm Out. 4.3.1 Temperature Measurement In this interface you can set the EC-001 temperature thresholds as well as the system response to abnormal values.

  • Page 24: Mask Detection

    Page 19 IP CAMERA USER MANUAL Alarm Triggers: Alarm Out 1/2 triggers the alarm out relay Trigger Audio Alarm Sound the corresponding alarm audio using the built in speaker. Trigger SD Snap takes a snapshot (SD card must be available) Trigger SD Recording Initiates video recording over the SD card (SD card must be available)
  • Page 25 Page 20 IP CAMERA USER MANUAL tab is “SD Card Full”: Enable the alarm if required. This alarm will only be relevant if “Recycle Record” is not marked. If “recycle record” is active, the SD card will never get full. After enabling the alarm, choose the responses required from the camera in case the alarm will be active.
  • Page 26 Page 21 IP CAMERA USER MANUAL network will be assigned with the same IP address of the IPC (or vice versa). To activate it, enable the alarm. After enabling the alarm, choose the responses required from the camera in case the alarm will be active.

  • Page 27: Alarm In

    Page 22 IP CAMERA USER MANUAL communication by the camera. After the setting is complete, click “Save”. 4.3.4 Alarm In Enter “Alarm” “Alarm In” to see a screen as shown below: → 2. Enable the alarm to activate it and see the configuration parameters: Parameter Meaning You can set it to “NO”...

  • Page 28: Alarm Out

    Page 23 IP CAMERA USER MANUAL 4. If required you can copy these settings to the 2 alarm input. 5. Next, you will need to set the alarm schedule. Click on the “Schedule” tab to get the following interface: 6. Set the active alarm time for each of the weekdays. You can also set a holiday schedule and add required dates to it.
  • Page 29 Page 24 IP CAMERA USER MANUAL 2. Alarm out has 3 modes as described below: A. Alarm Linkage (Shown Above): This mode will set the alarm out to be triggered as a response to any of the available alarms (Motion, Alarm in, Analytics). If this mode is chosen you will need to set it properly.

  • Page 30: Face

    Page 25 IP CAMERA USER MANUAL 4.4 Face The EC-001 offers advanced face detection/recognition analytics. User for identifying guests and staff together with keeping an optional record of the visitors and their temperature status. 4.4.1 Face Recognition Face detection Analytics will detect all faces within a defined area and save it to a local storage (SD Card) 1.

  • Page 31: Face Database Management

    Page 26 IP CAMERA USER MANUAL A. Since the EC-001 can track and follow faces in the scene, we can use the “Deduplication Period” so the unit will ignore a face for the set period after the first detection. In this case, since the deduplication period is set to 4 seconds, A man standing in front of the EC-001 for a long duration will trigger a face...

  • Page 32: Access Control

    Page 27 IP CAMERA USER MANUAL Image icon. Choose the image and save it. Bulk adding people to the database: 1) Prepare a folder including all the images of the people you want to add to the unit. 2) Prepare a .csv file with the following fields: A.

  • Page 33: Tampering Alarm Setting

    Page 28 IP CAMERA USER MANUAL Select Language – Set the GUI language Select Voice – Set the audio notifications language Screen Sleep Time – The duration without people traffic after which the screen will turn off Volume – The audio alert vlume Screen Brightness –...

  • Page 34: Wiegand Config

    Page 29 IP CAMERA USER MANUAL You can mark any combination of the above. Once these conditions are met, the “Lock” relay will be switched. There is also a password option to bypass all of the above (inputting the password will open the door regardless of any conditions).
  • Page 35 Page 30 IP CAMERA USER MANUAL Wiegand Input: 1. Connect the EC-001 to an external card reader through the Wiegand interface (D0, D1, GND) 2. Under the Wiegand interface, set the Alarm Trigger mode to “Wiegand Input” and save. 3. Edit an existing person from the database or add a new person. 4.
  • Page 36 Page 31 IP CAMERA USER MANUAL 6. Connect your lock to the corresponding alarm output. 7. Under “Alarm → Alarm out”, confirm that the corresponding alarm out mode is set to “Alarm Linkage” and set the Alarm type to NO/NC as required. 8.

  • Page 37: Network Configuration

    Page 32 IP CAMERA USER MANUAL 5. Upon a successful face recognition, the EC-001 will send the ID number to the controller via the Wiegand interface. 4.6 Network Configuration Network configuration includes eight submenus: Port, IP Address, Server Configuration, IP Notify, DDNS Config, RTSP, UPnP, Mail Setting, and FTP.
  • Page 38 Page 33 IP CAMERA USER MANUAL Please note: In order for the DHCP mode to work, you must have a DHCP server on the LAN. Using DHCP for permanent installations is not advisable as the IP Address might change after a while and cause the camera to be unreachable. Manual IP Assignment: If you wish to set static IP addresses, choose “Use the following IP Address”, set the range of IP addresses you wish to assign (First and last address), set the gateway and subnet mask and click on batch set.

  • Page 39: Port

    Page 34 IP CAMERA USER MANUAL The next tab is “IP Change Notification Config”: If you have used DHCP and you need to be notified that the IP Address assigned to the camera was changed, enable it and set Email or FTP for the notification process.

  • Page 40: Ddns Configuration

    Note: DDNS is used to register for a hostname with DDNS username and password. Provision ISR now allows you to use our mint DDNS server in order to create a virtual address for your security device on the internet. Each account is limited to 35 different addresses using your preferred domain name address instead of using IP addresses.

  • Page 41: Rtsp

    Page 36 IP CAMERA USER MANUAL Fill in the hostname you want to apply for and press "Request Domain" (for example "home") If there is no problem with the domain registration you will see the following message: “Your domain was successfully created.”...

  • Page 42: Upnp

    Page 37 IP CAMERA USER MANUAL 1. Enable the RTSP if required. 2. RTSP Port: Access Port of the streaming media. The default port is 554. 3. RTSP Address: each of the streams have a unique RTSP address. Input the desired address into your RTSP player.
  • Page 43 Page 38 IP CAMERA USER MANUAL The input fields are as follows: Field Meaning Sender’s e-mail address Sender Address User Name The username of the Email account Password The password for the Email account Server Address The SMTP/Outgoing Email server address Secure Connection Choose between Unnecessary/SSL/TLS SMTP Port...

  • Page 44: Ftp

    Page 39 IP CAMERA USER MANUAL Notice: If you change the static IP into PPPoE and select mailbox, there will be an e-mail sent to your mailbox for notifying a new IP address. 4.6.8 FTP Go to “Network” →”FTP” interface as shown below. To add a new FTP server click on “Add”...
  • Page 45 Page 40 IP CAMERA USER MANUAL The HTTPS must have an SSL certificate in order to work properly. An authentic certificate must be created by an authorized SSL certificate provider. This will confirm its security and validity. (The internet browser will authenticate the certificate when connecting to the camera).

  • Page 46: Security

    Page 41 IP CAMERA USER MANUAL Please note: Using this method will display an error message by the browser everytime you connect to the camera, as the camera is not recognized as a certified SSL certificate issuer. 3. If you wish to create an SSL certificate with an issuer of your choice, choose “Create a certificate request”.

  • Page 47: Online Users

    Page 42 IP CAMERA USER MANUAL Adding a user: Click on the “Add” button to pop up the “Add user” dialog box. Input the username, password and confirm the password. Set the user type. 3 user types are available: A. Administrator – Can perform all action and settings on the camera.

  • Page 48: Block And Allow Lists

    Page 43 IP CAMERA USER MANUAL You can view the IP address, port, username and user type used for the connection. The “Kick Out” button will kick out the selected user and input his IP address to the blacklist. Click on it for the relevant user and confirm the prompt message. Important Note: once the user is kicked out, the IP address used for connection will be blacklisted.

  • Page 49: Security Management

    Page 44 IP CAMERA USER MANUAL Enable the filtering you wish to activate. For the demonstration, we will enable both IP and MAC filtering, so the instructions below are true for both. Choose the type of list you wish to create (block or allow) Input the IP/MAC address you wish to add to the list Set whether the input is IPv4/IPv6/MAC address Click on add.

  • Page 50: Maintenance

    Page 45 IP CAMERA USER MANUAL 4.2 Maintenance Maintenance includes 4 submenus: Backup & Restore, Reboot, Upgrade and Operation log. 4.2.1 Configure Backup & Restore Backup and restore are used to save the camera’s configuration on a PC and use it in case the camera’s configuration was changed or when you wish to change the configuration of several cameras to be uniformed.

  • Page 51: Reboot Device

    Page 46 IP CAMERA USER MANUAL 4.2.2 Reboot Device Go to “Maintenance”→”Reboot” to see the interface as shown below. In order to reboot the IPC click on the reboot “Reboot” button and confirm the pop up prompt message, then wait for the reboot process to finish. You can also set a scheduled reboot.

  • Page 52: Playback

    Page 47 IP CAMERA USER MANUAL Notice: You must not disconnect to PC or close the IPC during the upgrade process to prevent permanent damage to the camera. The camera update file is ***.TAR. the “TAR” file should not be extracted. 4.3 Playback Playing back videos taken by the camera have 2 options: A.
  • Page 53 Page 48 IP CAMERA USER MANUAL Double click on the image/video from the list for it to show on the main playback window and it to the playback queue. The playback controls are described below. Notice that it is different for Videos and Photos •...
  • Page 54 Page 49 IP CAMERA USER MANUAL Download the displayed Play a slideshow of the image to your PC (SD queued images Card search only) Download the displayed image and queue list to Stop the slideshow your PC (SD Card search only) Dwell time...

  • Page 55: Mobile Surveillance

    Page 50 IP CAMERA USER MANUAL 5 Mobile Surveillance This IPC supports mobile surveillance from internet browsers and iOS/Android mobile phones using Provision-ISR’s application “Provision Cam2” 5.1 Network Configuration ⚫ Access the device via LAN Step 1: Connect device via a wireless router. Then checkmark DHCP both in router and device to automatically acquire IP address or enter the IP address manually.
  • Page 56 Page 51 IP CAMERA USER MANUAL 6 Q & A 1. Q: How to find my password if I forget it? A：The default username is “admin” and the default password is “123456”. If you have changed the password and you can’t remember it, press and hold the physical reset button on the camera (If available) or use the IP Manager to reset the camera to factory default as follows: A.
  • Page 57 Page 52 IP CAMERA USER MANUAL 4. Q：IE cannot download ActiveX control. How can I do? a. Your IE browser probably set to block ActiveX controls. Please perform the following steps: ① Open IE browser. Click Tools-----Internet Options…. ② Select Security------Custom Level….Refer to Fig 4-1 ③...
  • Page 58 Page 53 IP CAMERA USER MANUAL...
