Preparing for ECG Recording: Electrode Application
N black
R red
C1 white
C2 white
C3 white
Nst
C4 white (Nap)
Nax
C5 white
C6 white
L yellow
F green

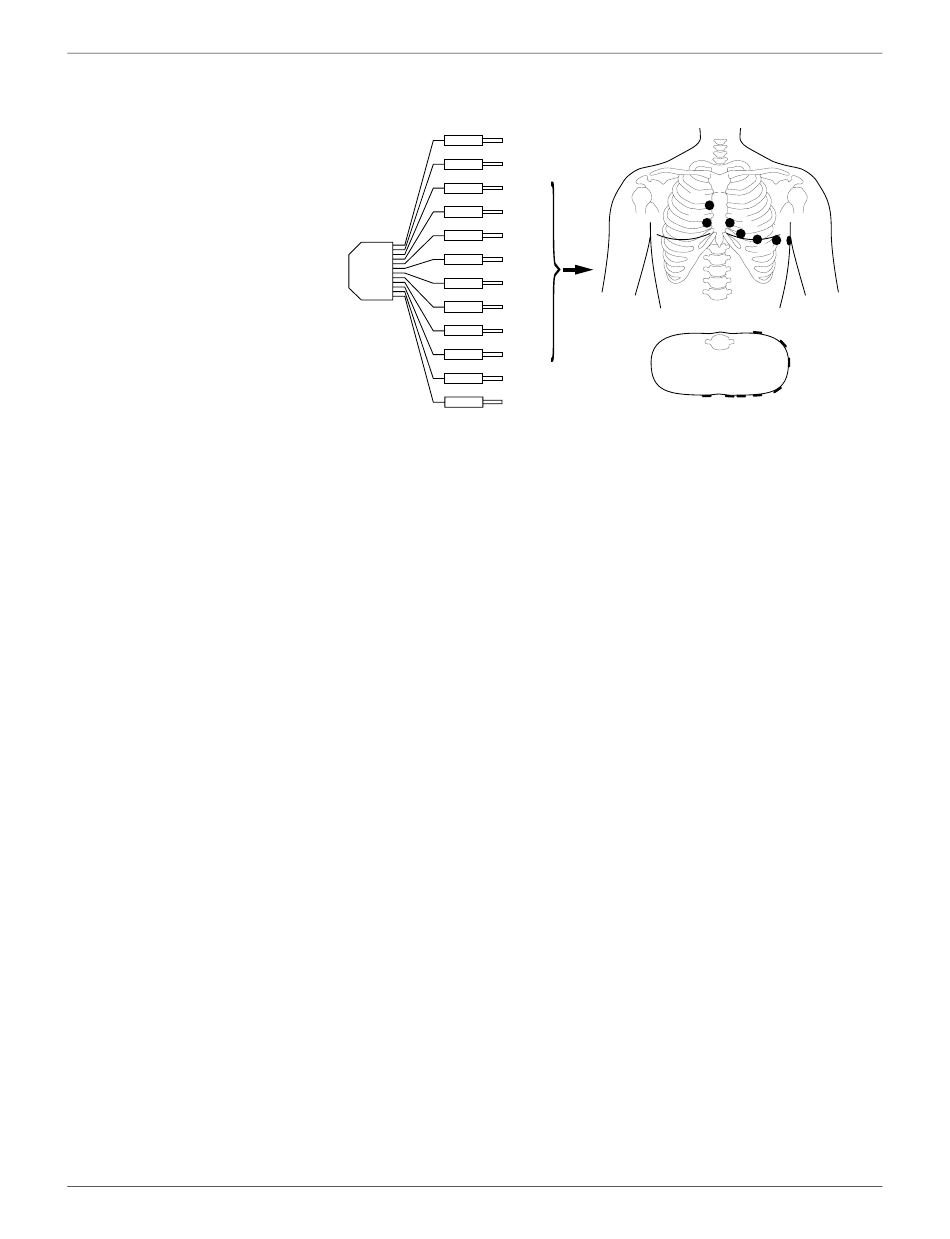

Connecting the Patient Cable (12-Lead Cable, NEHB Leads)
MAC 1200/1200 ST
2012250-021
right leg
right arm
Nst
C1
left arm
left leg
C2
C3
C5
C6
C4
(Nap)
C8
C7 (Nax)
C6
C5
C2 C3 C4
C1
Nst Nap
