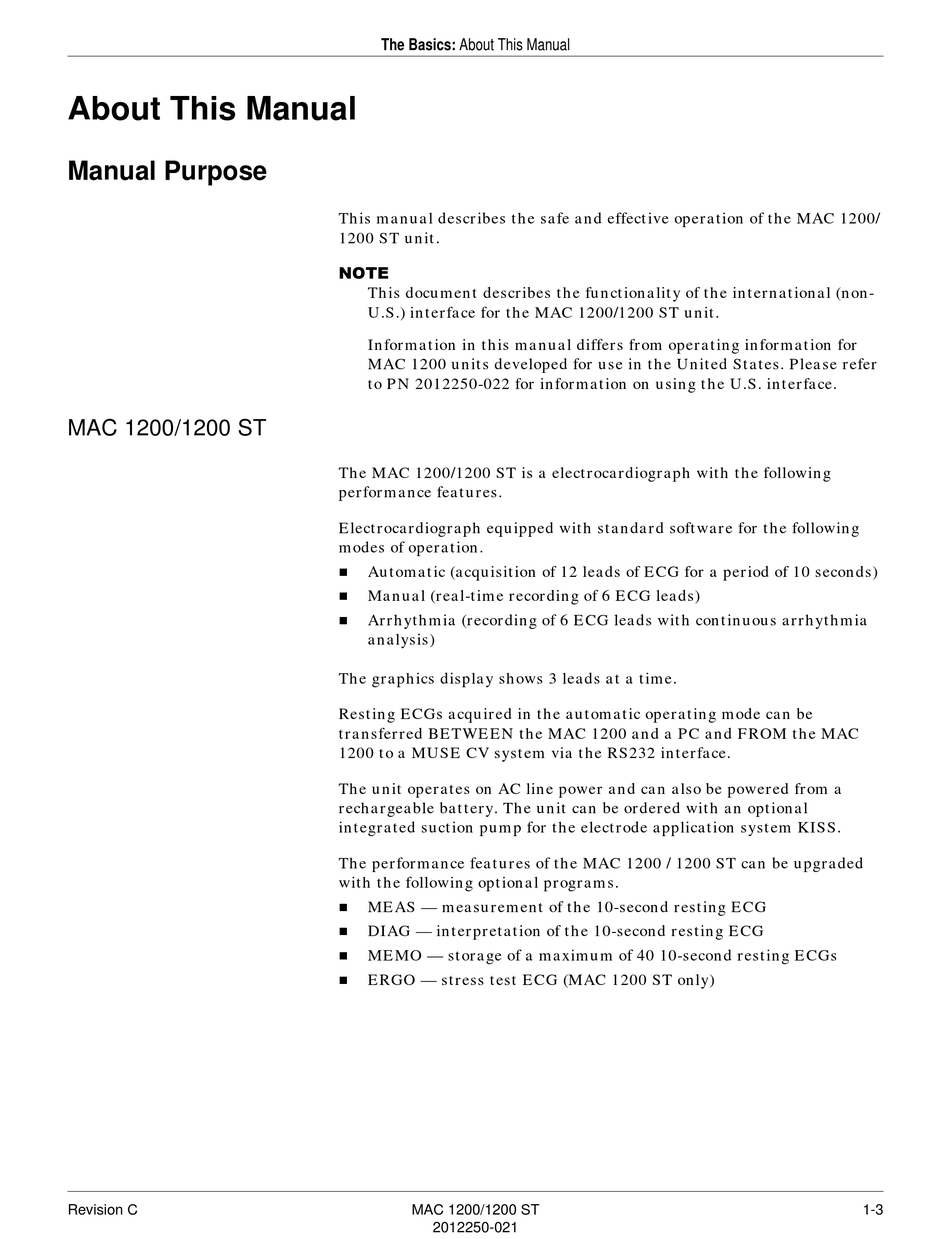

About This Manual

Manual Purpose

MAC 1200/1200 ST
Revision C
The Basics: About This Manual
This manual describes the safe and effective operation of the MAC 1200/
1200 ST unit.
127(
This document describes the functionality of the international (non-
U.S.) interface for the MAC 1200/1200 ST unit.
Information in this manual differs from operating information for
MAC 1200 units developed for use in the United States. Please refer
to PN 2012250-022 for information on using the U.S. interface.
The MAC 1200/1200 ST is a electrocardiograph with the following
performance features.
Electrocardiograph equipped with standard software for the following
modes of operation.
Automatic (acquisition of 12 leads of ECG for a period of 10 seconds)
Manual (real-time recording of 6 ECG leads)
Arrhythmia (recording of 6 ECG leads with continuous arrhythmia
analysis)
The graphics display shows 3 leads at a time.
Resting ECGs acquired in the automatic operating mode can be
transferred BETWEEN the MAC 1200 and a PC and FROM the MAC
1200 to a MUSE CV system via the RS232 interface.
The unit operates on AC line power and can also be powered from a
rechargeable battery. The unit can be ordered with an optional
integrated suction pump for the electrode application system KISS.
The performance features of the MAC 1200 / 1200 ST can be upgraded
with the following optional programs.
MEAS — measurement of the 10-second resting ECG
DIAG — interpretation of the 10-second resting ECG
MEMO — storage of a maximum of 40 10-second resting ECGs
ERGO — stress test ECG (MAC 1200 ST only)
