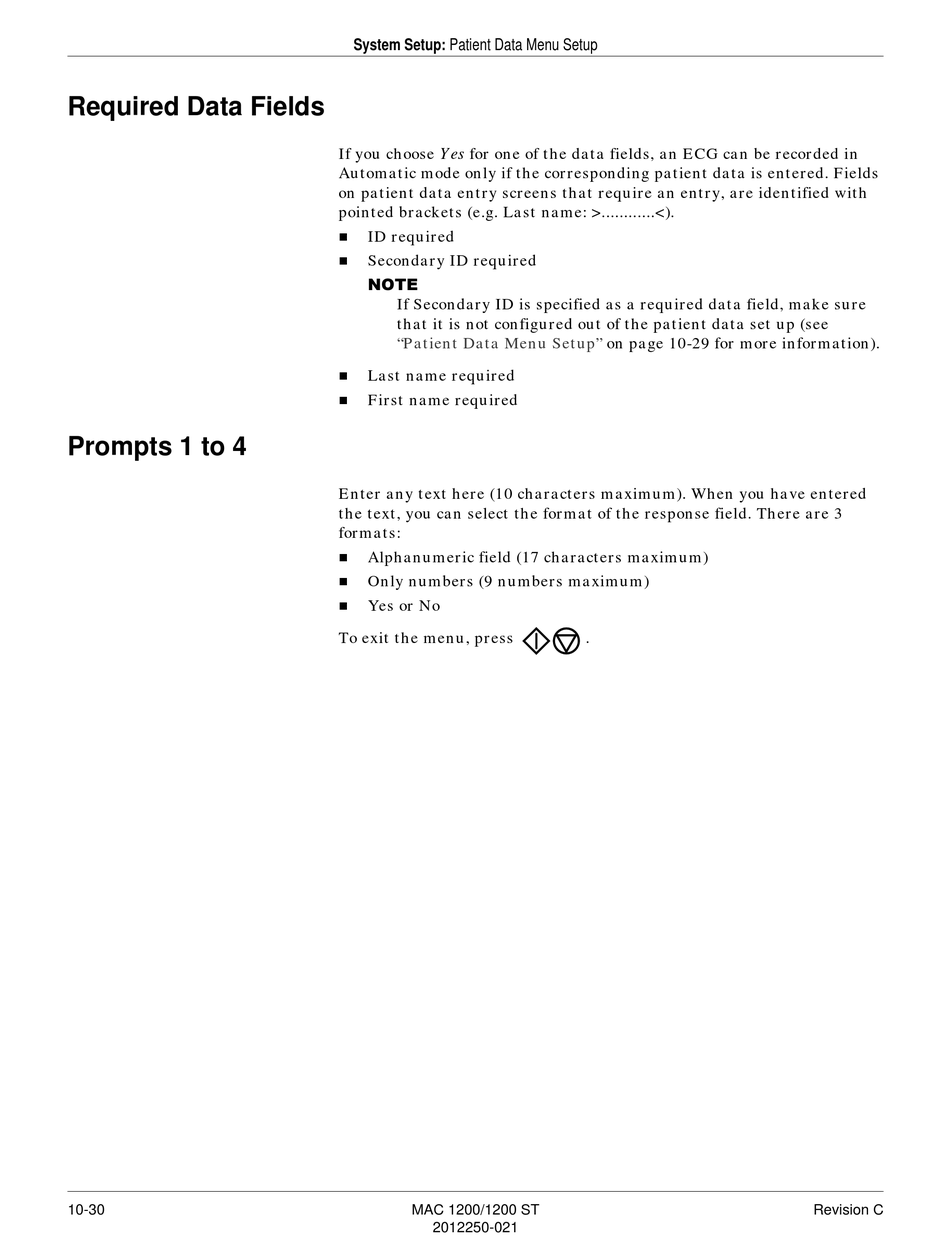

Required Data Fields

Prompts 1 to 4

10-30
System Setup: Patient Data Menu Setup
If you choose Yes for one of the data fields, an ECG can be recorded in
Automatic mode only if the corresponding patient data is entered. Fields
on patient data entry screens that require an entry, are identified with
pointed brackets (e.g. Last name: >............<).
„
ID required
„
Secondary ID required
127(
If Secondary ID is specified as a required data field, make sure
that it is not configured out of the patient data set up (see
"Patient Data Menu Setup"
„
Last name required
„
First name required
Enter any text here (10 characters maximum). When you have entered
the text, you can select the format of the response field. There are 3
formats:
„
Alphanumeric field (17 characters maximum)
„
Only numbers (9 numbers maximum)
„
Yes or No
To exit the menu, press
MAC 1200/1200 ST
2012250-021
on page 10-29 for more information).
.
