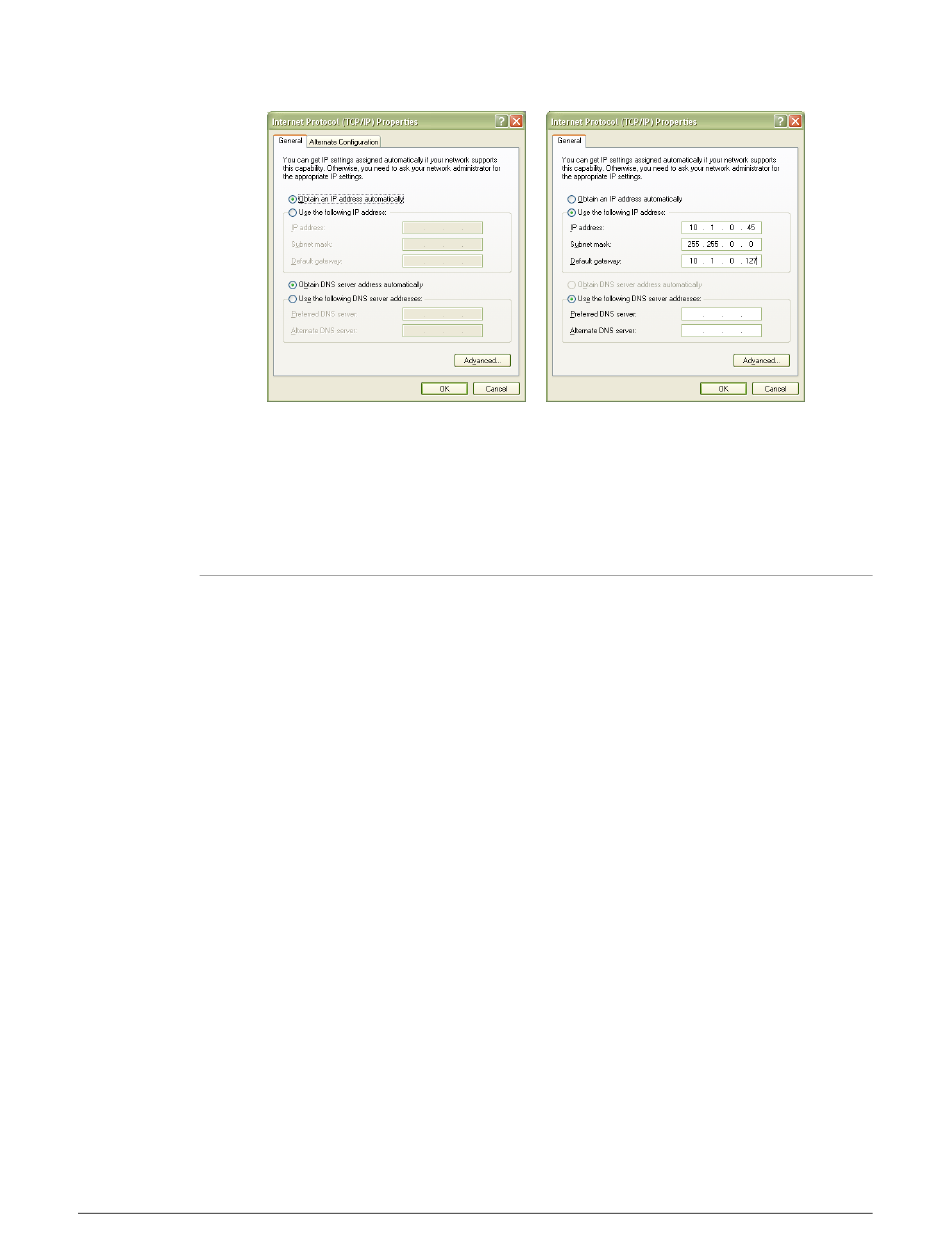

5) Determine if the PC is set to use auto or static IP. Figure 2-16 shows examples of both auto
and static IP address configurations.
F
IGURE
6) If set to use a static IP, record the IP address, subnet mask, and default gateway for use later.
Select Obtain an IP address automatically to establish a connection to the EX1200. Click
the OK button and proceed to Set the EX1200 to Static IP. If set to use a dynamic IP, click the
OK button and proceed to Set the EX1200 to Auto IP.
Set the EX1200 to Auto IP
1) Remove all network connections from the PC except for the connection to the EX1200.
Wireless adapters should be disabled as well.
2) Apply power to the EX1200 and wait for the LAN LED to turn green.
3) Discover EX1200 using LXI Discovery Tool as described in the Web Page Operation in
Section 7. The steps taken previously should ensure that discovery works.
4) Once connected to the EX1200, click on Network Configuration in the command menu.
5) Select DHCP and AutoIP in the IP Address Source field and ensure that Static IP is not
selected. Figure 2-17 shows the proper configuration. Click the Submit button to save all
changes.
EX1200 Series Preparation for Use
2-16: D
(L
)
YNAMIC
EFT
AND
S
(R
) IP A
TATIC
IGHT
DDRESS
www.vtiinstruments.com
C
ONFIGURATIONS
57
