Use of the entry-type web pages in the EX1200 are governed by a common set of operational
characteristics:

Pages initially load with the currently-entered selections displayed.

Each page contains a Submit button to accept newly entered changes. Leaving a page before
submitting any changes has the effect of canceling the changes, leaving the instrument in its
original state.

Navigation through a parameter screen is done with the Tab key. The Enter key has the same
function as clicking the Submit button and cannot be used for navigation.
VTI Instruments Logo
The VTI Instruments logo that appears on the upper left of all EX1200 web pages is a link to the
VTI Instruments corporate website: http://www.vtiinstruments.com.
S F P M
OFT RONT ANEL
The Soft Front Panel page displays a list of instruments that are available to command in the
EX1200 series chassis. After selecting an instrument, the soft front panel specific to that
instrument will appear. An example of the EX1200 SFP page can be seen in Figure 7-3.
EX1200 Series Maintenance
P
AIN AGE

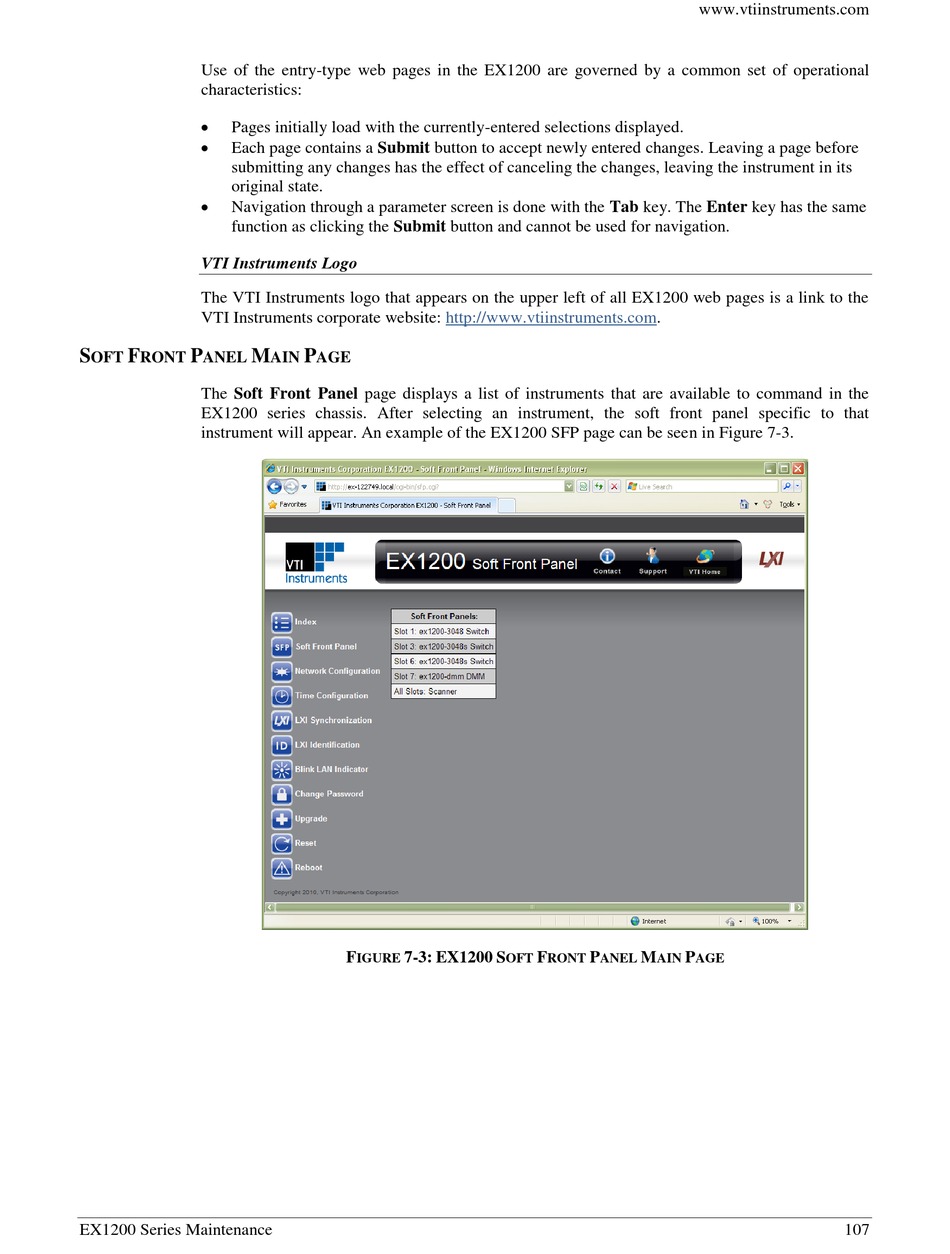

F 7-3: EX1200 S
IGURE
F P M P
OFT RONT ANEL AIN
