VTI Instruments Corp.

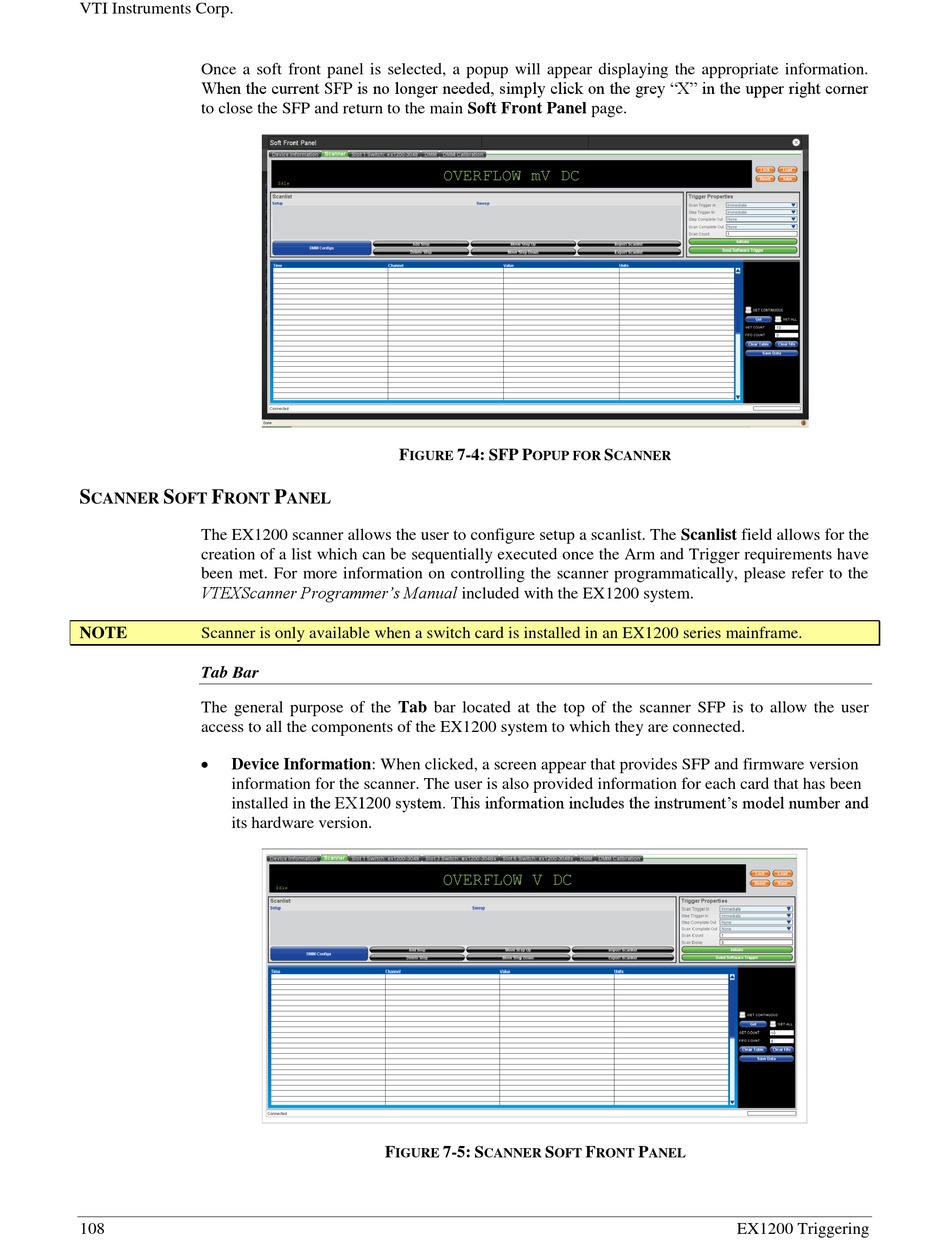

Once a soft front panel is selected, a popup will appear displaying the appropriate information.
When the current SFP is no longer needed, simply click on the grey "X" in the upper right corner
to close the SFP and return to the main Soft Front Panel page.
S S F
CANNER OFT RONT
The EX1200 scanner allows the user to configure setup a scanlist. The Scanlist field allows for the
creation of a list which can be sequentially executed once the Arm and Trigger requirements have
been met. For more information on controlling the scanner programmatically, please refer to the
VTEXScanner Programmer's Manual included with the EX1200 system.
NOTE Scanner is only available when a switch card is installed in an EX1200 series mainframe.
Tab Bar
The general purpose of the Tab bar located at the top of the scanner SFP is to allow the user
access to all the components of the EX1200 system to which they are connected.

Device Information: When clicked, a screen appear that provides SFP and firmware version
information for the scanner. The user is also provided information for each card that has been
installed in the EX1200 system. This information includes the instrument's model number and
its hardware version.
108
F
IGURE
P
ANEL
F 7-5: S
IGURE
7-4: SFP P S
OPUP FOR CANNER
S F
CANNER OFT RONT
P
ANEL
EX1200 Triggering
