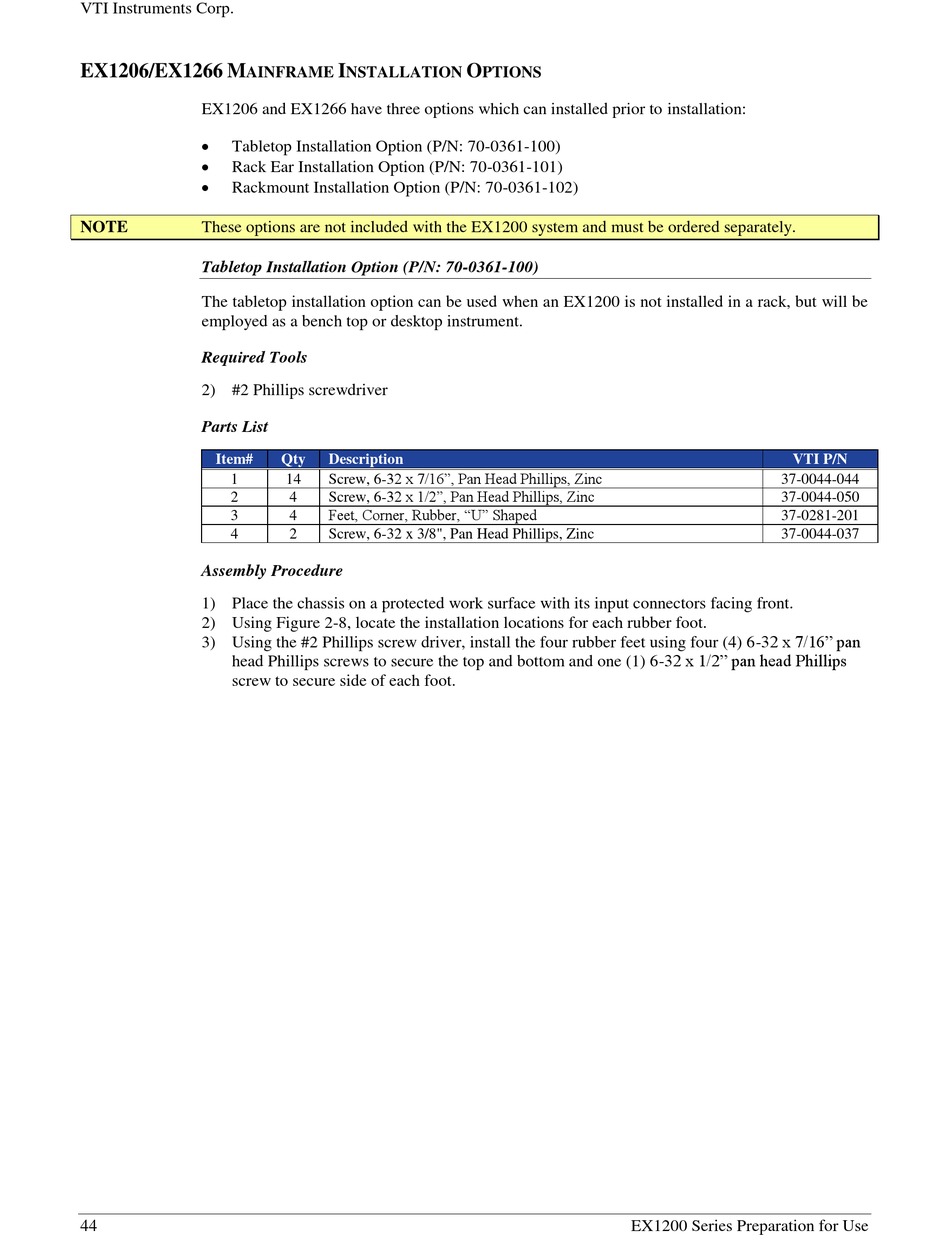

VTI Instruments Corp.
EX1206/EX1266 M
AINFRAME
EX1206 and EX1266 have three options which can installed prior to installation:

Tabletop Installation Option (P/N: 70-0361-100)

Rack Ear Installation Option (P/N: 70-0361-101)

Rackmount Installation Option (P/N: 70-0361-102)
NOTE These options are not included with the EX1200 system and must be ordered separately.
Tabletop Installation Option (P/N: 70-0361-100)
The tabletop installation option can be used when an EX1200 is not installed in a rack, but will be
employed as a bench top or desktop instrument.
Required Tools
2) #2 Phillips screwdriver
Parts List
Item#
1
2
3
4
Assembly Procedure
1) Place the chassis on a protected work surface with its input connectors facing front.
2) Using Figure 2-8, locate the installation locations for each rubber foot.
3) Using the #2 Phillips screw driver, install the four rubber feet using four (4) 6-32 x 7/16" pan
head Phillips screws to secure the top and bottom and one (1) 6-32 x 1/2" pan head Phillips
screw to secure side of each foot.
44
I
NSTALLATION
Qty Description
Screw, 6-32 x 7/16", Pan Head Phillips, Zinc
14
Screw, 6-32 x 1/2", Pan Head Phillips, Zinc
4
Feet, Corner, Rubber, "U" Shaped
4
2 Screw, 6-32 x 3/8", Pan Head Phillips, Zinc
O
PTIONS
EX1200 Series Preparation for Use
VTI P/N
37-0044-044
37-0044-050
37-0281-201
37-0044-037
