G W P
ENERAL EB AGE

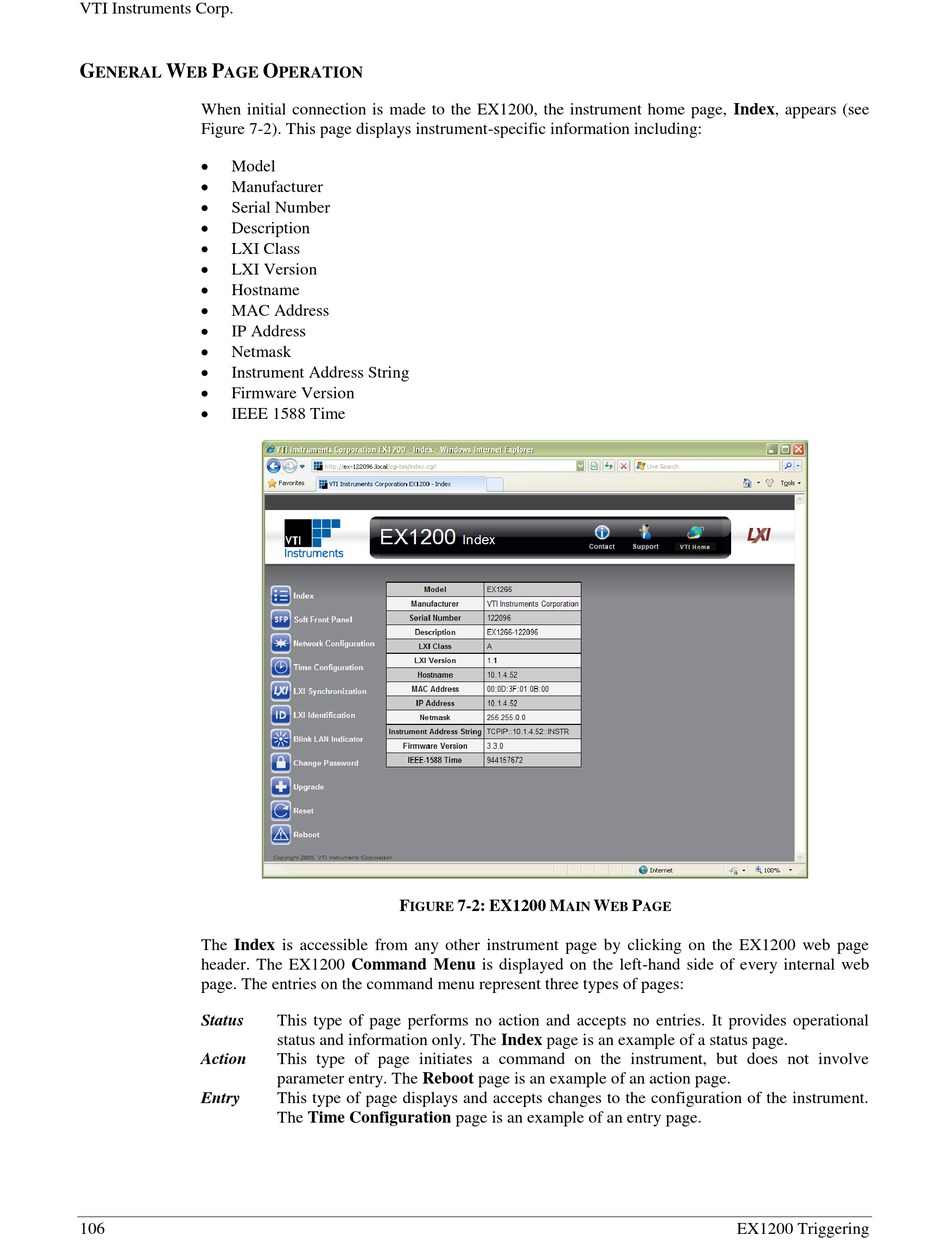

When initial connection is made to the EX1200, the instrument home page, Index, appears (see
Figure 7-2). This page displays instrument-specific information including:

Model

Manufacturer

Serial Number

Description

LXI Class

LXI Version

Hostname

MAC Address

IP Address

Netmask

Instrument Address String

Firmware Version

IEEE 1588 Time
The Index is accessible from any other instrument page by clicking on the EX1200 web page
header. The EX1200 Command Menu is displayed on the left-hand side of every internal web
page. The entries on the command menu represent three types of pages:
Status
Action
Entry
106
O
PERATION
F
IGURE
This type of page performs no action and accepts no entries. It provides operational
status and information only. The Index page is an example of a status page.
This type of page initiates a command on the instrument, but does not involve
parameter entry. The Reboot page is an example of an action page.
This type of page displays and accepts changes to the configuration of the instrument.
The Time Configuration page is an example of an entry page.
7-2: EX1200 M W P
AIN EB AGE
EX1200 Triggering
