VTI Instruments Corp.
DMM S F P
OFT RONT
The DMM Soft Front Panel provides an interface for the user to configure and perform
measurements with an EX1200 DMM. Note that this option is only available on EX1200 systems
where the DMM is installed.
Tab Bar
The general purpose of the Tab bar located at the top of the scanner SFP is to allow the user
access to all the components of the EX1200 system to which they are connected.

Device Information: When clicked, a screen appears that provides SFP and firmware version
information for the DMM.

Monitor and Control: When clicked, it provides the ability to set the DMM's options,
perform measurements, and collect data.

Calibration: This tab provides the calibration and verification routines, as well as access to
the stored adjustment data.
Status Display
The Status Display field functions similarly to a DMM front panel display on a standard,
standalone DMM while its takes measurements. It provides information regarding the
measurements being taken as well additional data.

Auto?: AUTO is displayed if the DMM is currently set to auto-range mode. This area will be
blank otherwise.

Current Action: Indicates the DMM's current action, such as Idle, Measuring, or Waiting
for Trigger.

Internal Temperature: Indicates the current internal temperature of the DMM.

Last Measurement: Displays the latest measurement taken by the DMM.
118

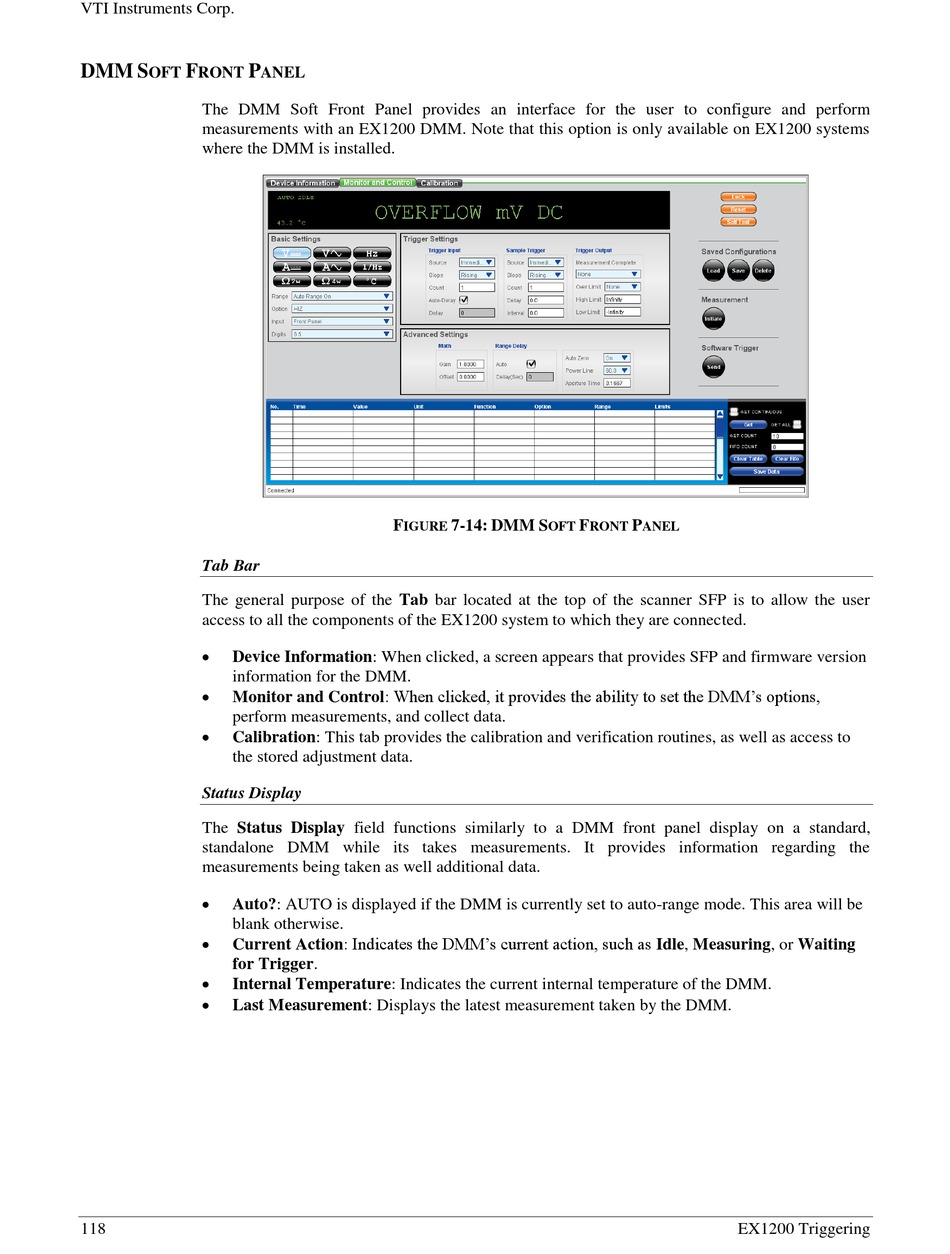

ANEL
F
IGURE
7-14: DMM S F
OFT RONT
P
ANEL
