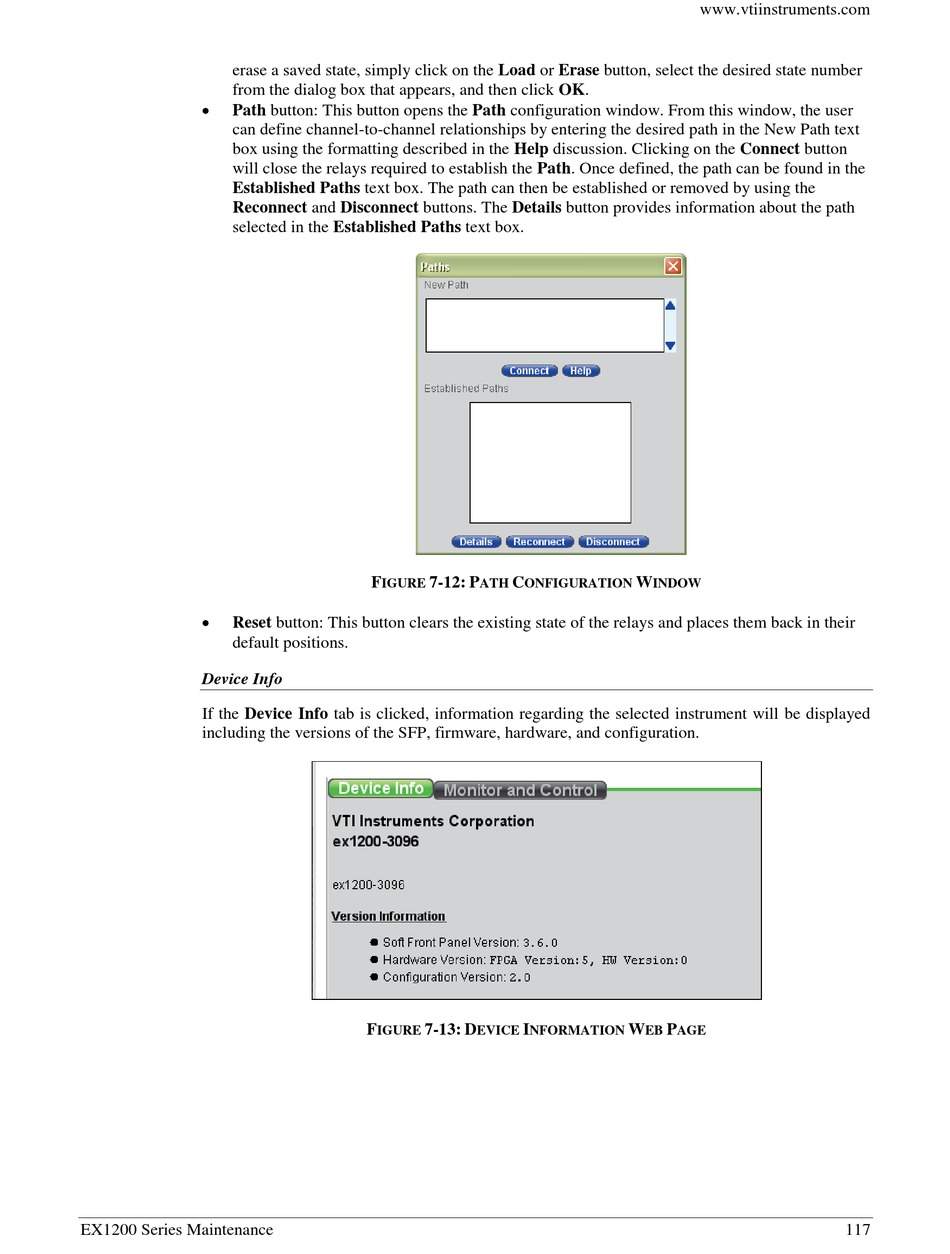

erase a saved state, simply click on the Load or Erase button, select the desired state number
from the dialog box that appears, and then click OK.

Path button: This button opens the Path configuration window. From this window, the user
can define channel-to-channel relationships by entering the desired path in the New Path text
box using the formatting described in the Help discussion. Clicking on the Connect button
will close the relays required to establish the Path. Once defined, the path can be found in the
Established Paths text box. The path can then be established or removed by using the
Reconnect and Disconnect buttons. The Details button provides information about the path
selected in the Established Paths text box.

Reset button: This button clears the existing state of the relays and places them back in their
default positions.
Device Info
If the Device Info tab is clicked, information regarding the selected instrument will be displayed
including the versions of the SFP, firmware, hardware, and configuration.
EX1200 Series Maintenance
F 7-12: P C
IGURE ATH ONFIGURATION
F 7-13: D I
IGURE EVICE NFORMATION
