LXI Module to Module Parameters
LXI Domain: an 8-bit number, 0 to 255, that indicates the domain the EX1200 is using for
Wired Trigger Parameters
Wired-OR Bias: indicates whether the Wired-OR bias for each Trigger Bus channel (LXI0
LXI I
DENTIFICATION
This status page provides the user information about the EX1200 mainframe as well as all the
plug-in modules that are installed. Firmware, driver, and network information can also be
collected from this page. Note that the page name adjusts to identify the model of the mainframe
(as seen in "EX1266 LXI Identification" show in Figure 7-19).
EX1200 Series Maintenance
LAN events. All events sent by this device will include this data. Likewise, the device
will only accept events that include the same LXI Domain data.
through LXI7) is enabled or disabled.

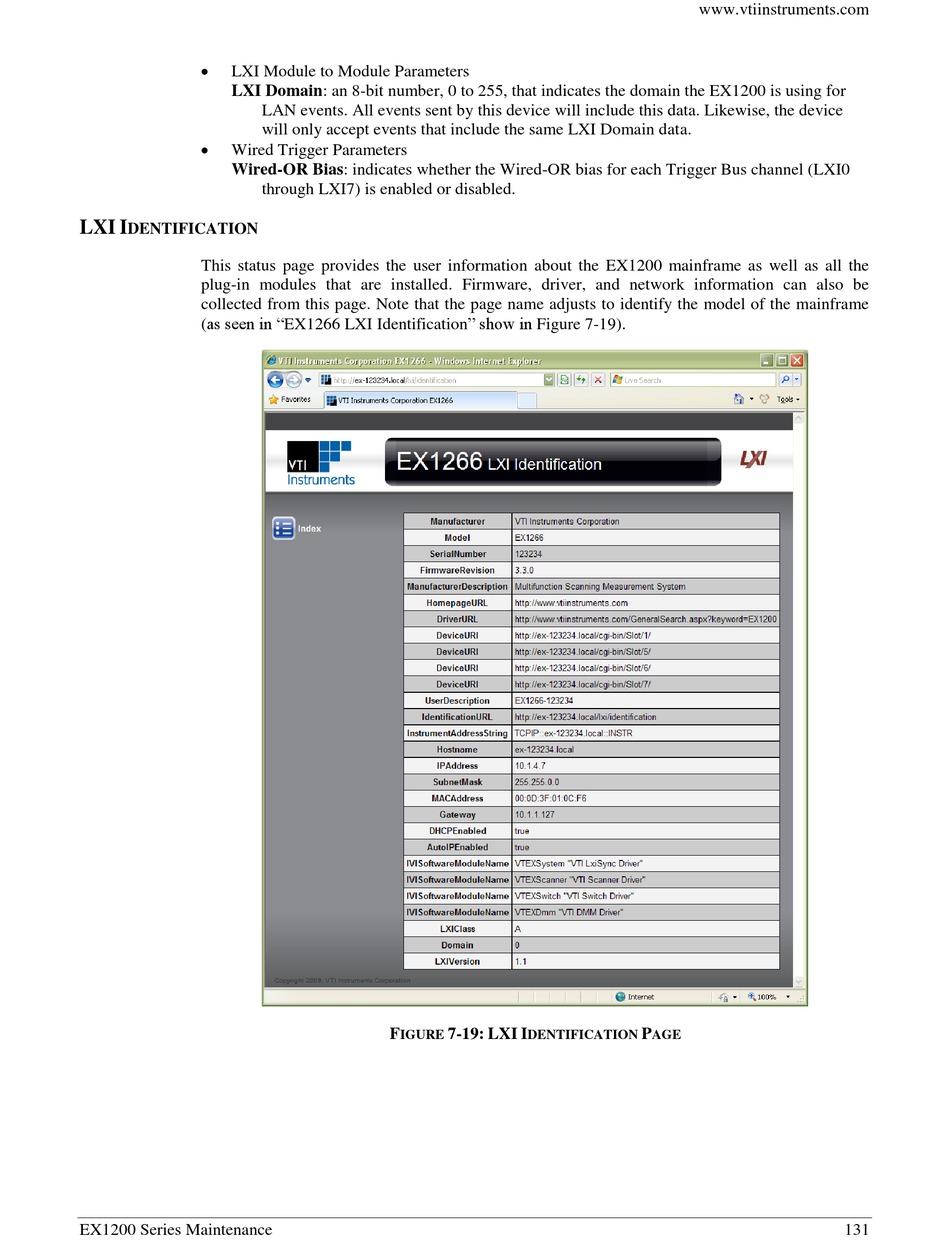

F
IGURE
7-19: LXI I
DENTIFICATION
www.vtiinstruments.com
P
AGE
131
