F 2-13: R
IGURE
B P
LANKING ANEL
When a chassis is not fully populated, blanking panels (P/N: 41-0472-012) should be installed into
the empty slots to maintain proper air flow through the chassis. Blanking panels should be ordered
with the mainframe if empty slots are anticipated.
C /D
ONNECTING ISCONNECTING
When connecting the power cord to an EX1200 series mainframe, there should be no connections
to the front panel of any plug-in cards that may be installed and the power switch at the rear of the
mainframe should be in OFF position. Connect the power line cord to the EX1200 series
mainframe outlet, then connect all input signals to the plug-in cards, then turn the power supply
ON. Do not touch exposed pins or connectors.
S I
OFTWARE NSTALLATION
The fastest way to begin controlling an EX1200 is to discover the unit using LXI Discovery Tool
utility and then manipulate the instrument's Java-based SFP. To do this, the following is required:

A PC or laptop computer

Microsoft™ Windows™ XP/7/8 OS and Internet Explorer™ (IE)

An internet connection

Java™ Runtime Environment

LXI Discovery Tool
EX1200 Series Preparation for Use
H I
ACKMOUNT ARDWARE
L P
INE OWER
(JRE) version 6.0 (or later)
D (E

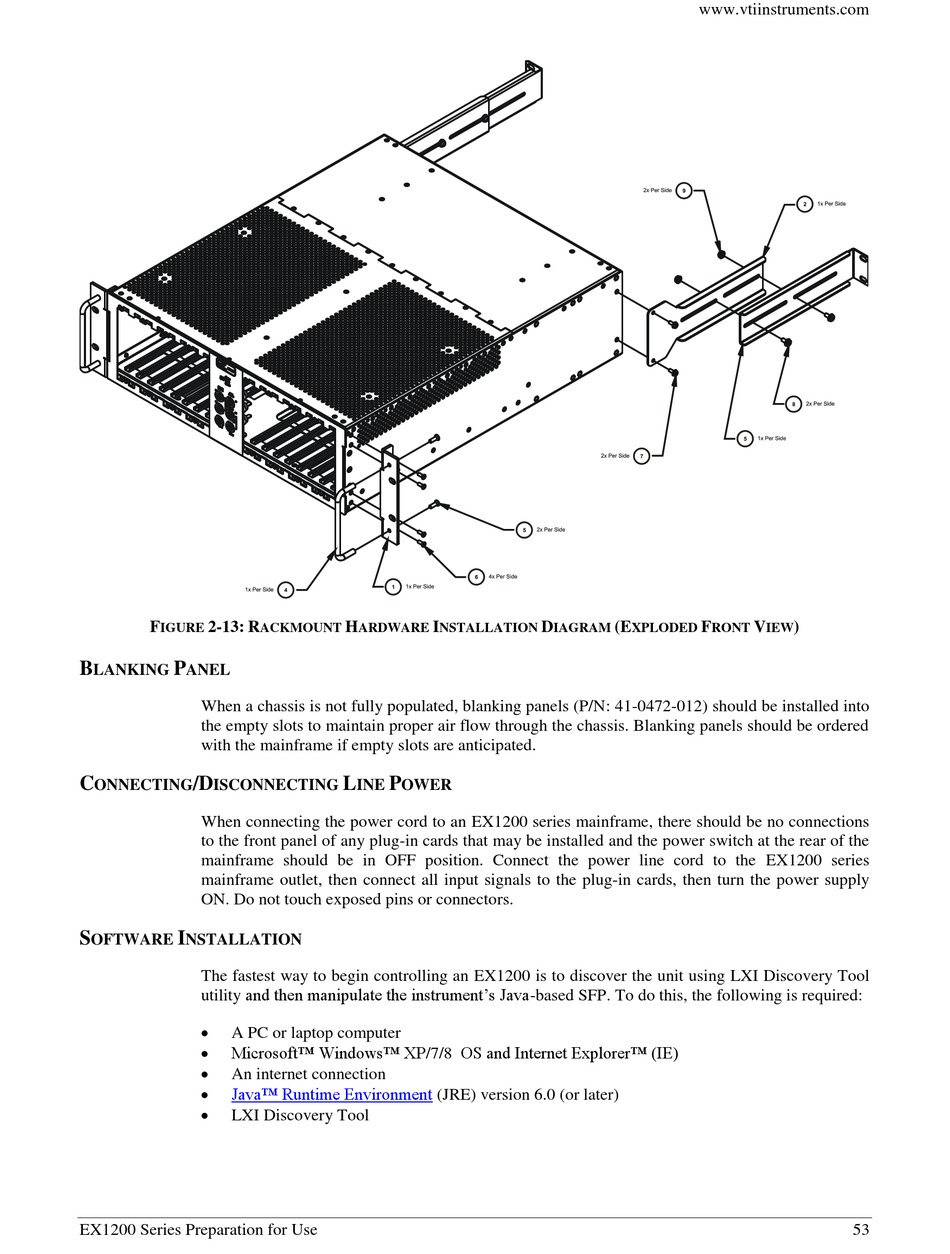

NSTALLATION IAGRAM
