5) In the Reference Instruments section, select the appropriate instrument available on the
GPIB/LAN network for the calibrator, external DMM, and function generator. This
information can also be obtained from LAN/GPIB Gateway's web page. Refer to the
LAN/GPIB Gateway's user's manual for more information.
6) Once the instruments have been selected, click the Connect button. If the connection is
successful, the SFP will display the 5700A's calibration information. Click OK to proceed.
Enter the DMM's serial number when prompted.
7) In the Temperature section, enter the ambient temperature, in °C, into the External field, as
shown in Figure 9-11.
8) In the Calibration Status section, click the Initiate button.
9) As the calibration process progresses, prompts will appear indicating the connections that
need to be made between the EX1200 DMM and the reference standards.
The calibrator's "Aux Current Out" must be connected to the DUT's "Input I" jack at all times.
NOTE
10) Upon completion of calibration, a window will appear indicating whether any failures
occurred. Save the test logs for future reference.
11) Copy the cal constants to a file for future reference.
P V
ERFORMING ERIFICATION
When verification is run, the user can generate a report that indicates the measured and expected
values for the points measured during the calibration process. Performing verification before and
after calibration can provide the user valuable information regarding the stability of an instrument.
Prior to performing verification, ensure the following:

The EX1200 DMM (device under calibration), the function generator, the DMM, and the
calibrator/amplifier must all be powered up for a minimum of one hour before calibration

The Agilent 3458A "Auto Cal All" procedure must be performed prior to verification.

The 5700A's "Cal Zero" procedure must be performed prior to verification.

Ensure that the "I FUSE" is installed in the EX1200 DMM.
Verification Procedure
1) Follow steps 1) through 3) in the Performing Calibration section.
2) From the Calibration Functions section of the Calibration page, select Verification from the
drop down menu.
3) Follow steps 5) through 9) in the Performing Calibration section.
4) When the test is finished, a popup window will tell you if there were any failures. Save the
test logs and test results.
5) Copy the test logs and test results. Use these values to make the calibration report.
EX1200 Series Maintenance
Device Drop Menu
Enter Ambient Temperature

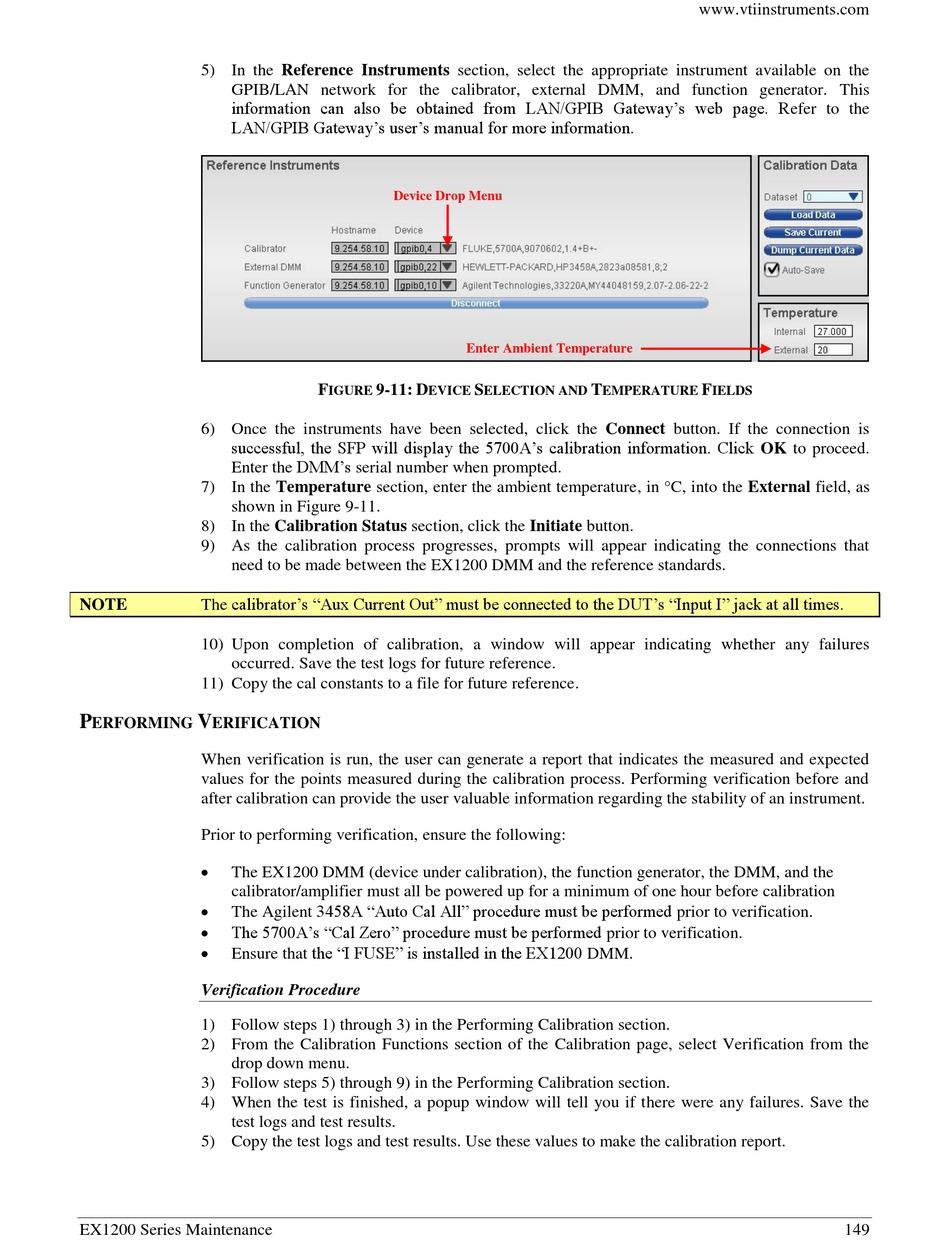

F 9-11: D S
IGURE EVICE ELECTION AND
www.vtiinstruments.com
T F
EMPERATURE IELDS
149
