VTI Instruments Corp.
Calibration Procedure

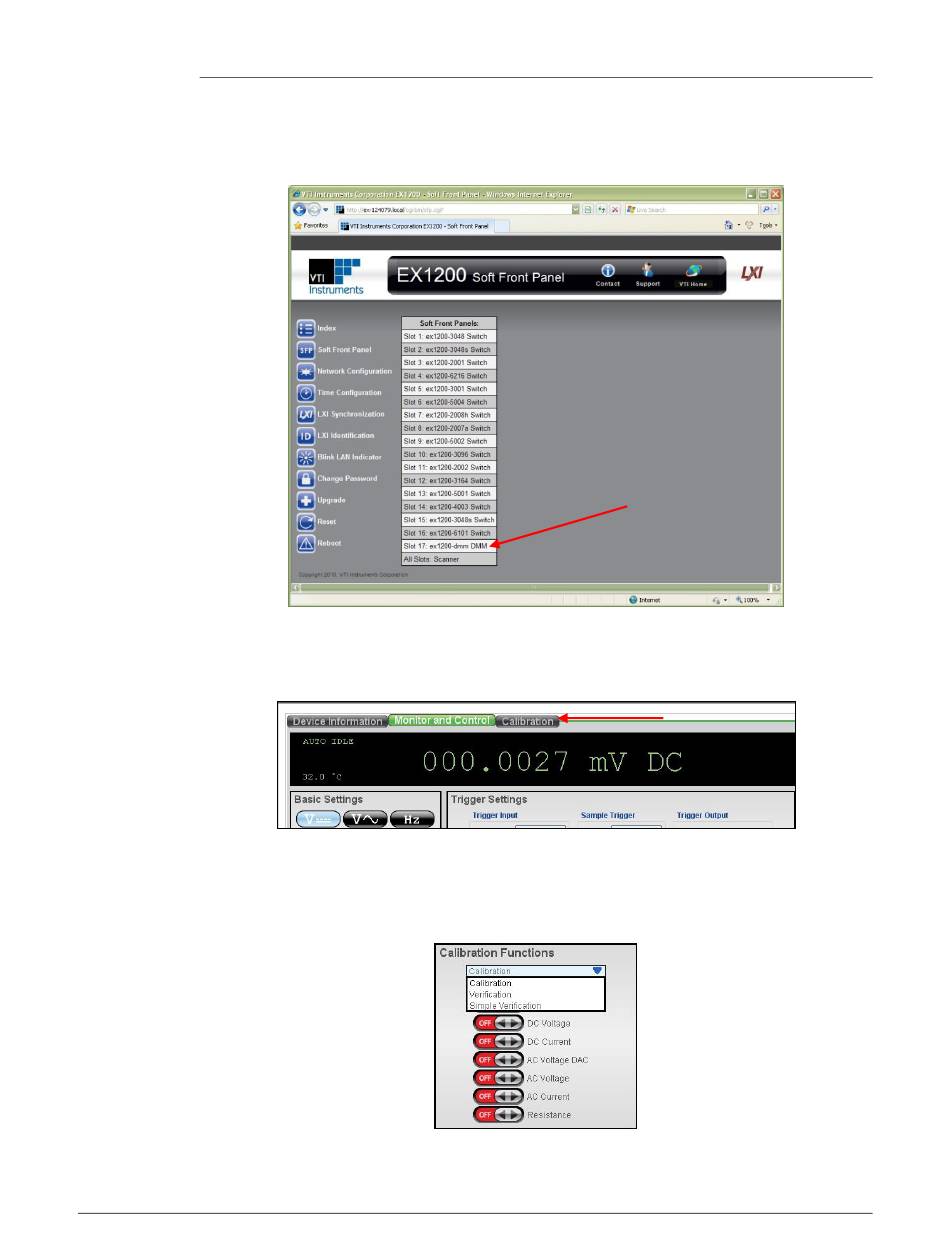

1) Connect to the embedded web page. See Connecting to the EX1200 for assistance.
2) Click Soft Front Panel from the Index page to navigate to the Soft Front Panel page. Select
the ex1200-dmm DMM from the list of available plug-in modules (the slot designation will
vary depending on the mainframe being used).
3) At the top of the DMM's soft front panel, click the Calibration button.
4) From the Calibration Functions section of the Calibration page, select Calibration from
the drop down menu.
148
F
9-8: I
IGURE
NSTRUMENT
F
9-9: C
IGURE
ALIBRATION
F
9-10: C
IGURE
ALIBRATION
Select the DMM
SFP
SELECTION PAGE
Calibration Tab
T
AB
F
S
UNCTION
ELECTION
EX1200 Series Maintenance
