Media Loading

The Printer supports up to an 8" (203mm) diameter roll of media, (if
media less than 4 inches wide is used, refer to Section 5.3.1 before
loading media). Follow the instructions outlined below when installing
the media stock.
1. Open the Printer's Side Access Cover.
2. Rotate the Printhead Latch (1) counterclockwise to unlatch and raise
the Printhead to an upright position.
3. Lower the Hinge Plate (2).
4. Slide the Media Edge Guide (3) to the outer edge and rotate it to the
down position.
16

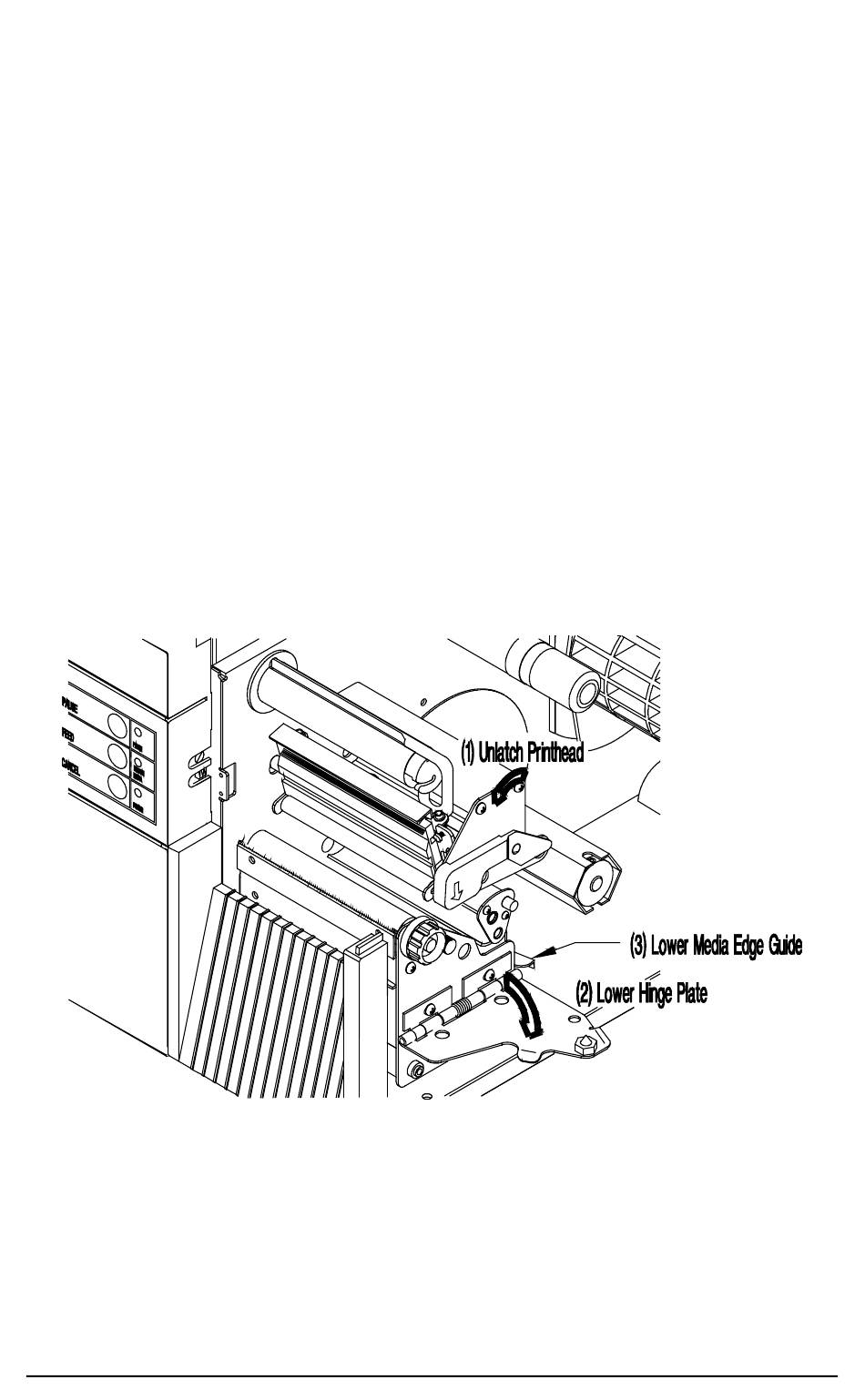

Figure 2-4 Media Access
