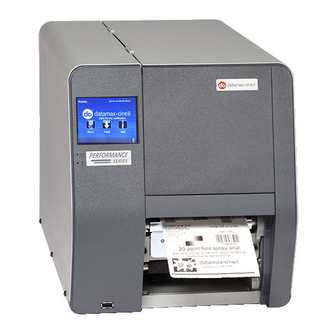

Page 3: General Safety Information
Safety Warnings and Cautions The following Warnings and Cautions are used throughout this manual: Warning: Warnings alert you to possible safety risks. Caution: Cautions alert you to the potential for equipment damage. General Safety Information Caution: This product is intended for indoor use only. All service procedures should be done by properly trained and qualified service personnel. -
Page 4: Usb Host
USB Host Installation Instructions USB Host Figure: 2 - 1 USB Host USB Host Installation Guide... -
Page 5: Tools Needed
Caution: ESD protection is required when performing these steps. Warning: The cover set may only be removed by a Datamax-O’Neil Authorized Service Center. Unauthorized service will void the manufacturer’s warranty. Warning: The printer must be powered off and disconnected from utility power prior to performing these procedures. - Page 6 USB Host Installation Instructions | 2 USB Host Installation Procedure Note: Retain all hardware for reassembly. 1. Open the media cover assembly. 2. If the present sensor option is installed on the cover, gently pry the sides of the cable chain outward to disconnect it from the present sensor cable connection cover.
- Page 7 2 | USB Host Installation Instructions 3. Remove all four 7mm nuts securing the present sensor cable connection cover to the media cover. Figure: 2 - 3 PCB Cover 4. Disconnect the present sensor cable connector and route the connector (male) out of the opening.
- Page 8 USB Host Installation Instructions | 2 6. Loosen and remove the three (3) 2.5mm hex head screws securing the right side cover to the printer chassis. Figure: 2 - 5 Right Side Screws 7. Lift and remove the cover assembly from the printer chassis. Caution: Exercise caution when removing the cover set assembly and secure it in a safe position where it will not be damaged.
- Page 9 2 | USB Host Installation Instructions 8. If applicable, loosen and remove the power ribbon transport assembly screw and cover. Figure: 2 - 7 Power Ribbon Transport Assembly Cover USB Host Installation Guide...
- Page 10 USB Host Installation Instructions | 2 9. Gently push the upper panel locking tab upward enough to begin to separate the top of the panel from the printer frame. Figure: 2 - 8 Front Panel Removal Upper Tab Lower Tab Caution: Be careful not to damage any surrounding components.
- Page 11 2 | USB Host Installation Instructions 11. Gently separate the panel from the printer frame. Note: With the display cable still attached, the panel cannot be fully separated. 12. Disconnect the display cable from the front panel connector. Caution: Do not pull the wires. Pulling the wires could damage both the wires and the connector.
- Page 12 USB Host Installation Instructions | 2 14. Connect the small end connector from the supplied cable to the USB host assembly. Note: Be sure the connection is secure. 15. Route the cable through the slot opening on the front of the printer chassis, through the cable clamp to the main PCB assembly area.
