5. Place the Media Supply Roll on the Media Hub Assembly. Slide the
media retainer against the supply roll and tighten the thumb screw.
6. Route the media over the Guide Plate, between the Media Sensor,
and over the Platen Roller (located beneath the Printhead).
7. Route the media liner (backing) around the Tear Bar to the Media
Rewinder as shown in Figure 2-9.
8. Place the Clasp over the end of the media and rotate the Media
Rewinder a few turns.
9. Rotate the Media Edge Guide up and slide it to the media's edge.
10. Lift and snap the Lower Right Front Panel closed.
11. Close the Hinge Plate and latch the Printhead by rotating the
Printhead Latch clockwise to the latched position. Close the side
cover.

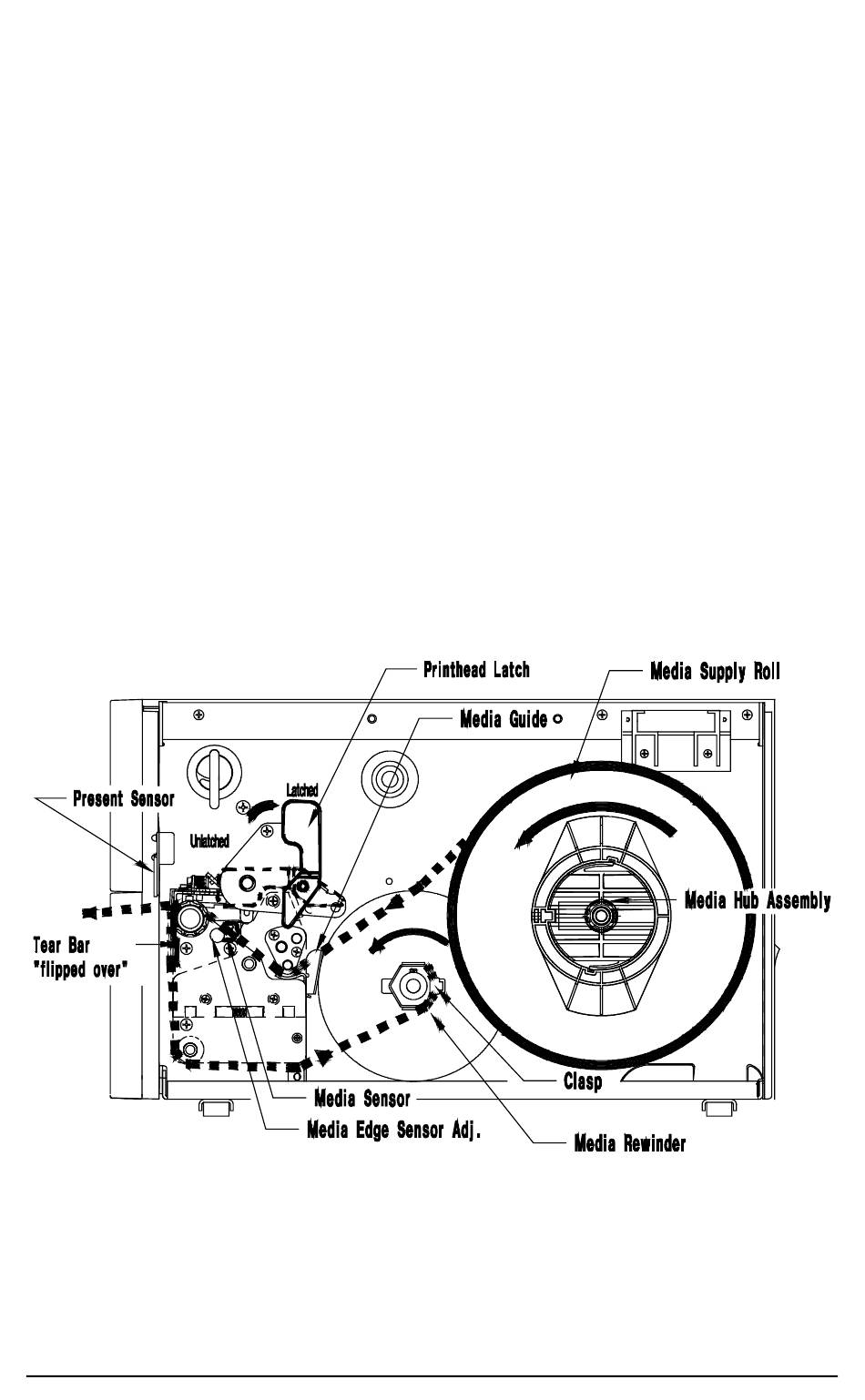

Figure 2-9 Installing Media using Peel and Present Option
