2 . 3 L o a d i n g M
2 . 3 L o a d i n g M
2 . 3 L o a d i n g M
The printer is equipped with an Adjustable Media Sensor and may require adjustment to match your

media choice, refer to Section 4.4.

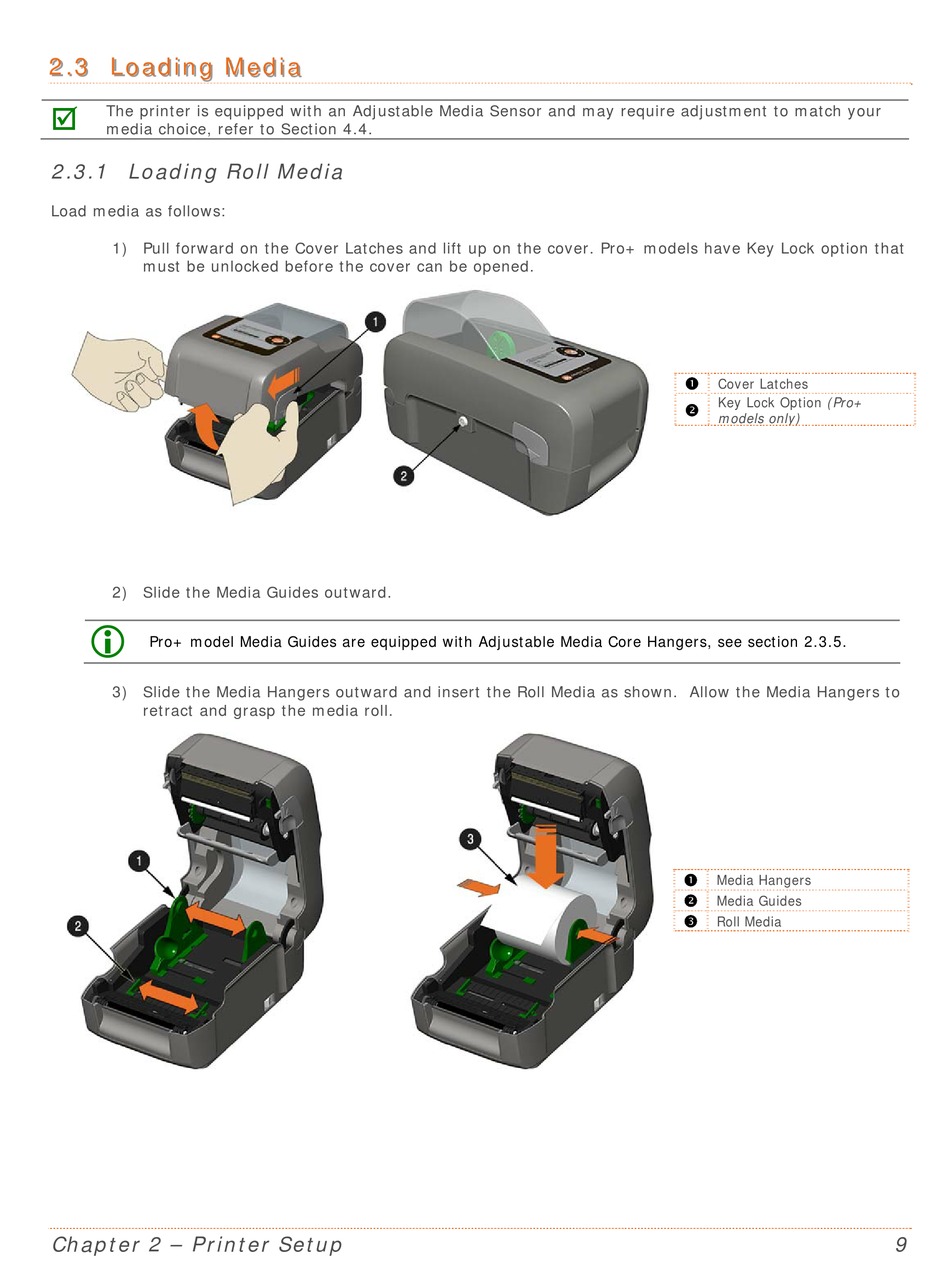

2.3.1 Loading Roll Media

Load media as follows:
1) Pull forward on the Cover Latches and lift up on the cover. Pro+ models have Key Lock option that
must be unlocked before the cover can be opened.
2) Slide the Media Guides outward.

Pro+ model Media Guides are equipped with Adjustable Media Core Hangers, see section 2.3.5.
3) Slide the Media Hangers outward and insert the Roll Media as shown. Allow the Media Hangers to
retract and grasp the media roll.
Chapter 2 – Printer Setup
e d i a
e d i a
e d i a
312
312

Cover Latches
Key Lock Option (Pro+

models only)

Media Hangers

Media Guides

Roll Media
9
