Chapter 2: Jumpers and Connectors

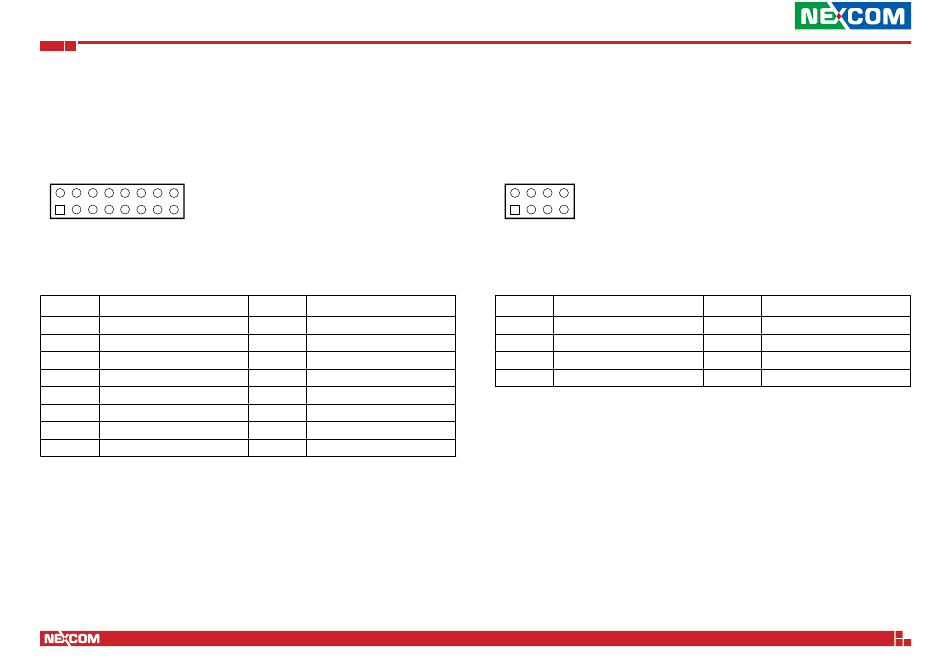

Internal Power Connector
Connector type: 2x8 16-pin header
Connector location: CON4
2
16
1
15
Pin
Definition
1
P12V_AUX
3
P12V_AUX
5
P12V_AUX
7
P12V_AUX
9
GND
11
GND
13
GND
15
GND
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
P12V_AUX
4
P12V_AUX
6
P12V_AUX
8
P5V_STBY
10
GND
12
GND
14
GND
16
GND
Internal Power Connector
Connector type: 2x4 8-pin header
Connector location: CN9
2
8
1
7
Pin
Definition
1
GND
3
GND
5
P12V
7
P12V
12
Pin
Definition
2
GND
4
GND
6
P12V
8
P12V
FTA5180 Series User Manual
