Chapter 2: Jumpers and Connectors

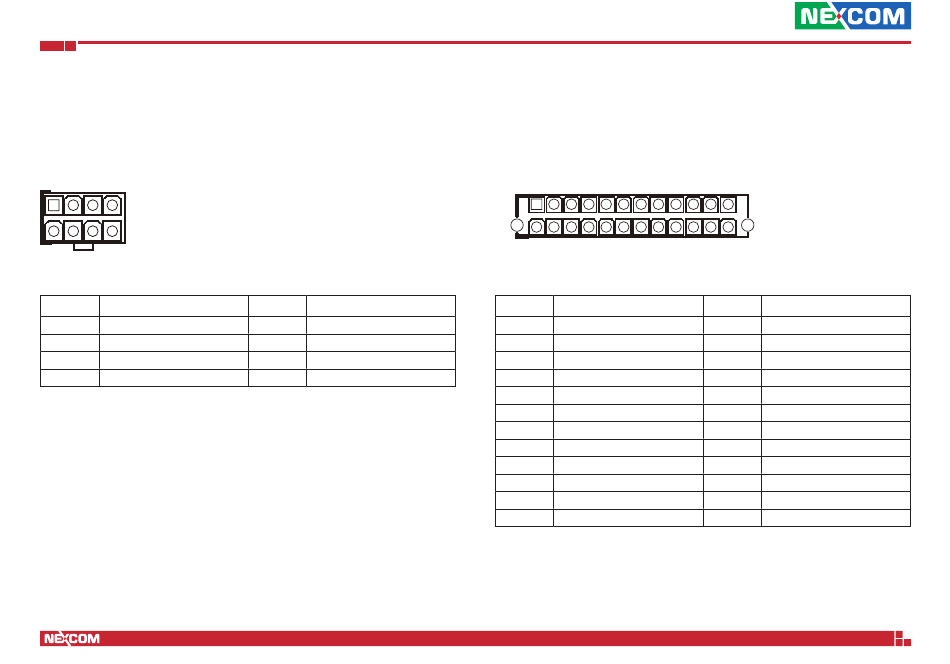

8-pin Internal Power Connector

Connector type: 2x4 8-pin boxed header, 4.2mm pitch
Connector location: CN9
1 4
5 8
Pin Definition
1 GND
3 GND
5 P12V
7 P12V
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 GND
6 P12V
8 P12V
24-pin Internal Power Connector
Connector type: 2x12 24-pin boxed header, 4.2mm pitch
Connector location: CON1
1
1
13
13
Pin Definition
1 +3.3V
3 GND
5 GND
7 GND
9 +5VSB
11 +12V
13 +3.3V
15 GND
17 GND
19 GND
21 +5V
23 +5V
11
12
12
24
24
Pin Definition
2 +3.3V
4 +5V
6 +5V
8 PW-OK
10 +12V
12 +3.3V
14 -12V
16 PS-ON
18 GND
20 RES/-5V
22 +5V
24 GND
