Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

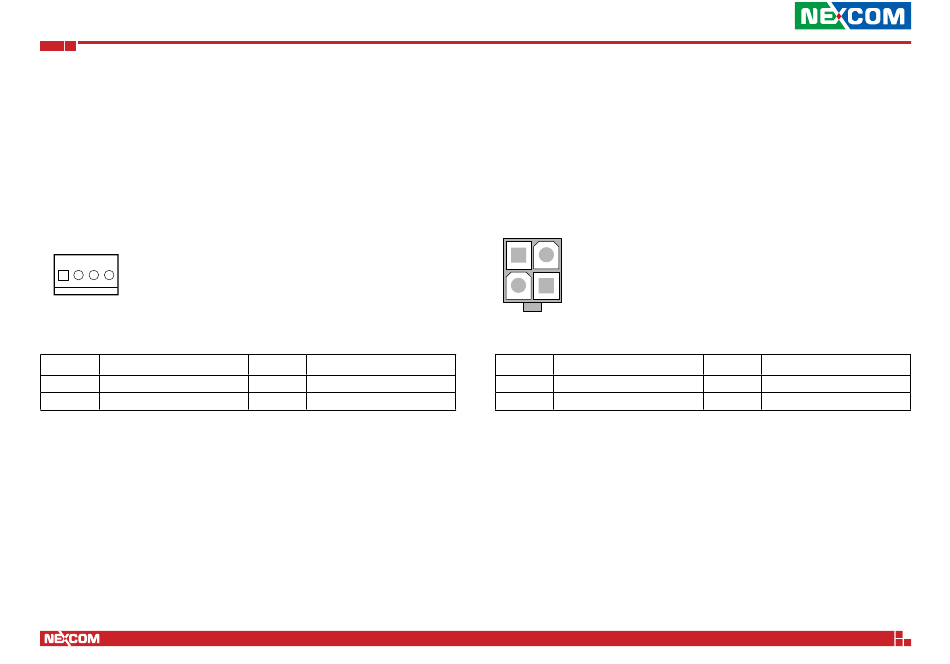

Fan Connectors

Connector type: 1x4 4-pin Wafer
Connector location: FAN1, FAN2, FAN3 and FAN4
1
4
Pin
Definition
1
GND
3
FAN_TACH
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
12V
4
FAN_PWM

Internal 12V Power Connector

Connector type: 2x2 4-pin header
Connector location: CON2
1
1
2
2
3
4
3
4
Pin
Definition
1
GND
3
12V
12
Pin
Definition
2
GND
4
12V
NSA 3190A User Manual
