Chapter 2: Jumpers and Connectors

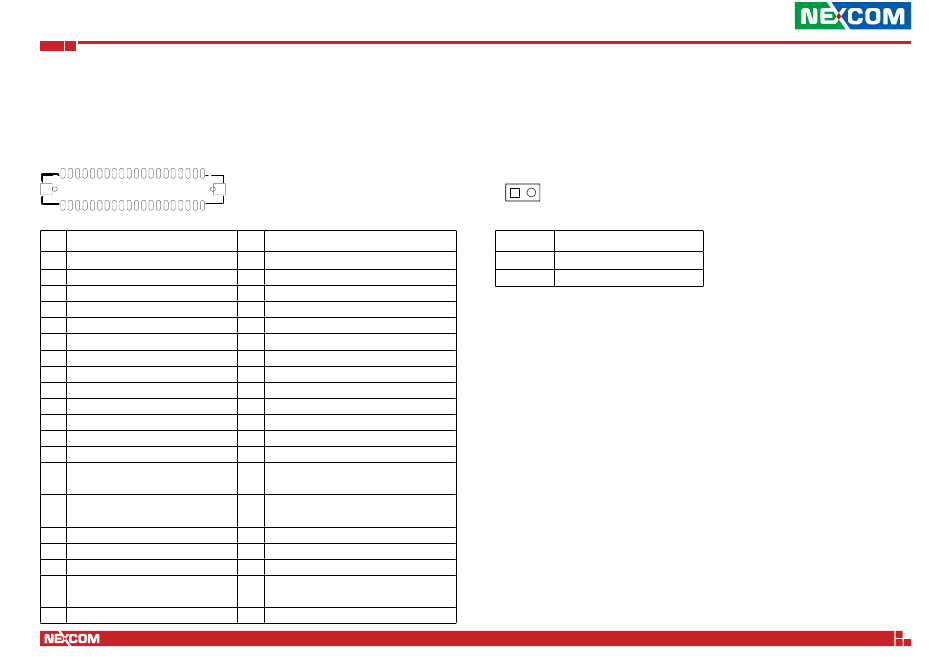

IDV connector (For Debug)

Connector type: 2x20 40-pin header
Connector location: IDV1
40
2
1 39
Pin Definition
1 P3V3_RTC_AUX
3 RST_RTCRST_N
5 P3V3_SOC
7 P1V8_AUX
9 PVNN_NAC
11 P1V05_NAC
13 RST_RSMRST_PCH_N
15 FM_CPU_MSMI_LVT3_R_N
17 P1V2_VDDQ
19 NC
21 PWRGD_PVNN_NAC
23 NC
25 FM_CPU_CATERR_LVT3_R_N
FM_CPU_PROCHOT_LATCH_
27
LVT3_R_N
FM_CPU_THERMTRIP_LATCH_
29
LVT3_R_N
31 PWRGD_DRAMPWRGD_R2
33 PWRGD_PS_PWROK_IDV
35 FM_SLPS4_N
SMB_SMLINK0_STBY_LVC3_MITI_
37
SDA
39 PECI_CPU_PCH_BMC_R1
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 PWRGD_P3V3_AUX
4 PWRGD_CPU_LVC3_PLD_R3
6 GND
8 P1V05
10 IDV_RST_PLTRST_N
12 PVNN_PCH
14 PWRGD_PVCCIN_CPU
16 GND
18 PWRGD_PCH_PWROK
20 PVCCIN_CPU
22 P2V5_PVPP
24 FM_CPU_ERR2_LVT3_N
26 GND
28 FM_CPU_ERR1_LVT3_N
30 FM_CPU_ERR0_LVT3_N
32 PVTT
34 FM_SLPS3_N
36 GND
38 SMB_SMLINK0_STBY_LVC3_SCL
40 IDV_PWR_BUTTON_N

System Power Button Header

Connector type: 1x2 2-pin header
Connector location: JP1
1 2
Pin Definition
1 IDV_PWR_BUTTON_N
2 GND
