Chapter 1: Product Introduction

Knowing Your FTA5180

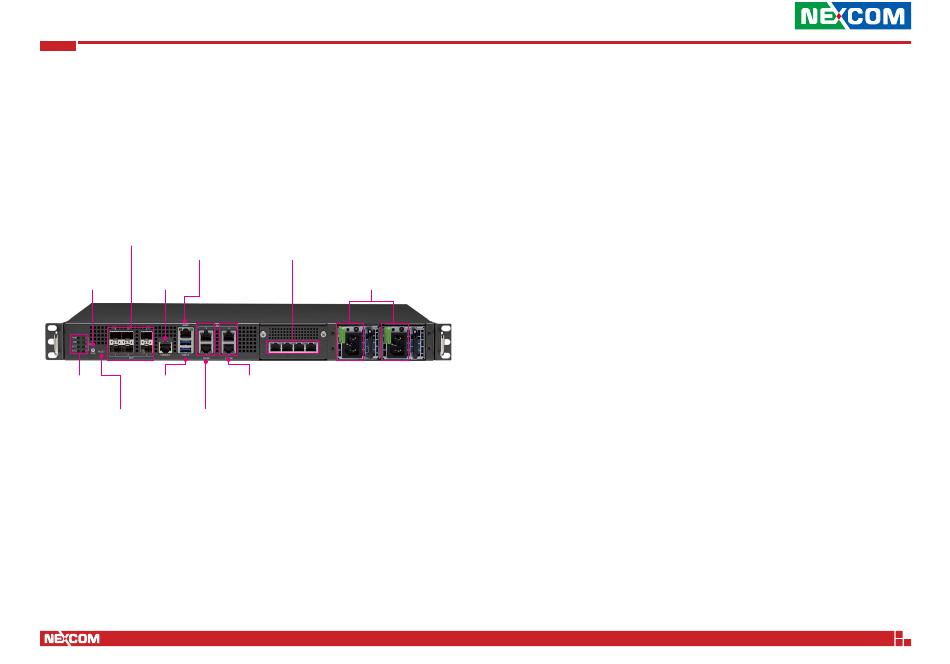

Front Panel

SFP+ Management
LAN
Power RJ45
Button Console
LED USB 3.0
Indicators
Reset 10GBASE-T
Button RJ45 PoE++
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
LAN Module
Slot
AC Power
Inlets
2.5G RJ45
PoE++
LAN LED Indicators
Indicates the data activity and link status of PWR/SSD/SYS1/SYS2/PoE ports.
Power Button
Press to power-on or power-off the system.
Reset Button
Press to restart the system.
10G SFP+ Ports
Used to connect SFP+ modules for connecting fiber optic network devices.
RJ45 Console Ports
Used to connect to devices with RJ45 type console connection.
Management LAN Port
Management LAN port used for managing the system.
USB 3.0 Port
Used to connect USB 3.0/2.0/1.1 devices.
10GBASE-T RJ45 PoE++
Used to connect the system to a local area network.
2.5G RJ45 PoE++
Used to connect the system to a local area network.
LAN Module Slot
LAN module bay to install add-on network modules.
AC Power Inlets
Used to plug an AC power cord to power the system.
