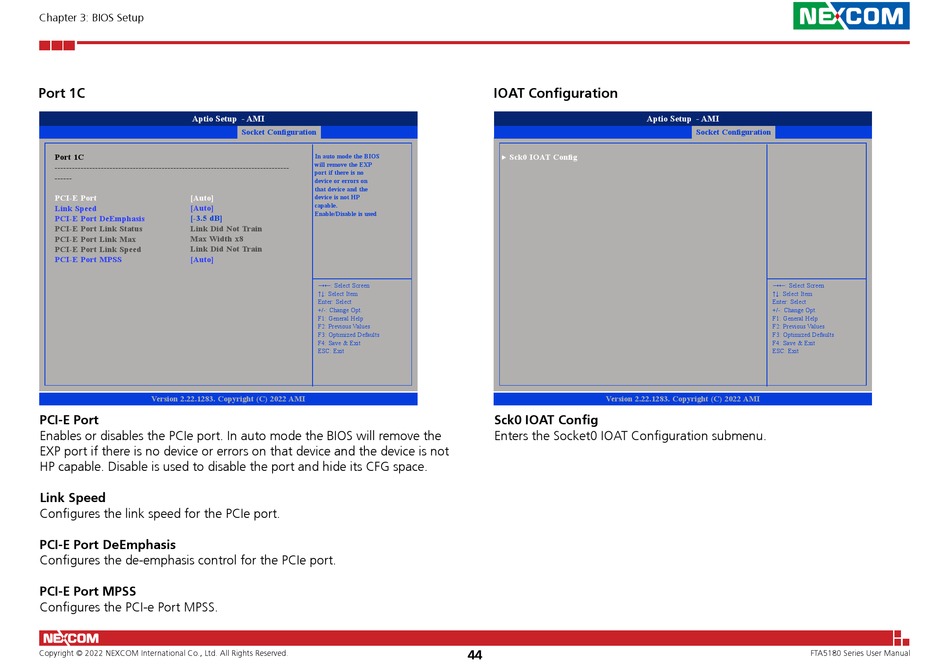

Chapter 3: BIOS Setup
Port 1C
Aptio Setup - AMI
Port 1C
---------------------------------------------------------------------------------
------
PCI-E Port [Auto]
Link Speed [Auto]
PCI-E Port DeEmphasis [-3.5 dB]
Link Did Not Train
PCI-E Port Link Status
PCI-E Port Link Max Max Width x8
PCI-E Port Link Speed Link Did Not Train
PCI-E Port MPSS [Auto]
Version 2.22.1283. Copyright (C) 2022 AMI
PCI-E Port
Enables or disables the PCIe port. In auto mode the BIOS will remove the
EXP port if there is no device or errors on that device and the device is not
HP capable. Disable is used to disable the port and hide its CFG space.
Link Speed
Configures the link speed for the PCIe port.
PCI-E Port DeEmphasis
Configures the de-emphasis control for the PCIe port.
PCI-E Port MPSS
Configures the PCI-e Port MPSS.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Socket Configuration
In auto mode the BIOS
will remove the EXP
port if there is no
device or errors on
that device and the
device is not HP
capable.
Enable/Disable is used
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
IOAT Configuration
Aptio Setup - AMI
Sck0 IOAT Config

Version 2.22.1283. Copyright (C) 2022 AMI
Sck0 IOAT Config
Enters the Socket0 IOAT Configuration submenu.
44
Socket Configuration
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
FTA5180 Series User Manual
