Nexcom FTA 5180 Series User Manual page 61

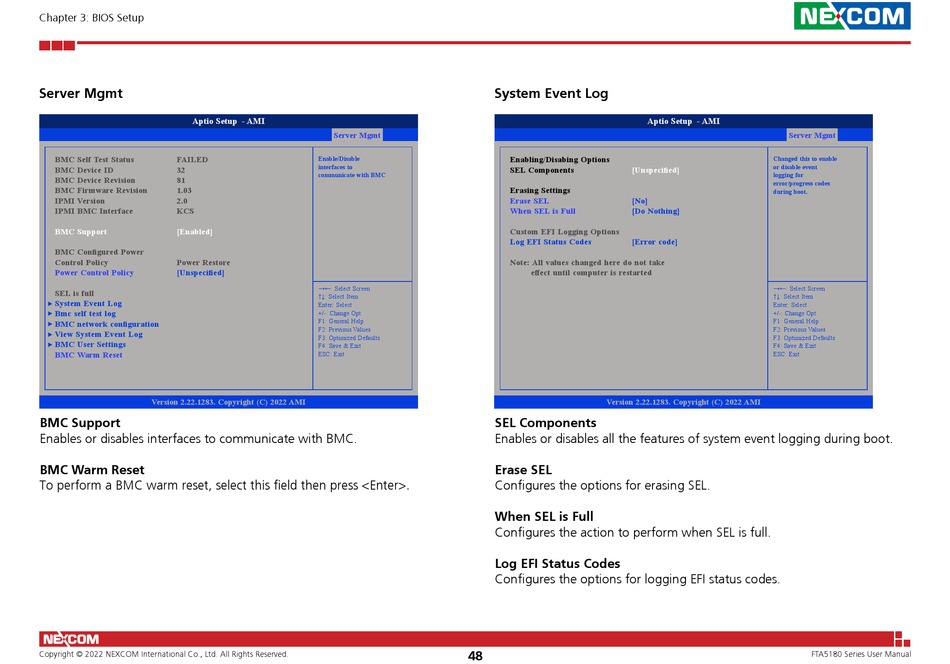

Chapter 3: BIOS Setup
Server Mgmt
Aptio Setup - AMI
BMC Self Test Status FAILED
BMC Device ID 32
BMC Device Revision 81
BMC Firmware Revision 1.03
IPMI Version 2.0
IPMI BMC Interface KCS
BMC Support [Enabled]
BMC Configured Power
Control Policy Power Restore
Power Control Policy [Unspecified]
SEL is full
System Event Log

Bmc self test log

BMC network configuration

View System Event Log

BMC User Settings

BMC Warm Reset
Version 2.22.1283. Copyright (C) 2022 AMI
BMC Support
Enables or disables interfaces to communicate with BMC.
BMC Warm Reset
To perform a BMC warm reset, select this field then press <Enter>.
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
System Event Log
Server Mgmt
Enable/Disable
interfaces to
communicate with BMC
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
SEL Components
Enables or disables all the features of system event logging during boot.
Erase SEL
Configures the options for erasing SEL.
When SEL is Full
Configures the action to perform when SEL is full.
Log EFI Status Codes
Configures the options for logging EFI status codes.
48
Aptio Setup - AMI
Enabling/Disabing Options
SEL Components [Unspecified]
Erasing Settings
Erase SEL [No]
When SEL is Full [Do Nothing]
Custom EFI Logging Options
Log EFI Status Codes [Error code]
Note: All values changed here do not take
effect until computer is restarted
Version 2.22.1283. Copyright (C) 2022 AMI
Server Mgmt
Changed this to enable
or disable event
logging for
error/progress codes
during boot.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
FTA5180 Series User Manual
