Chapter 2: Jumpers and Connectors

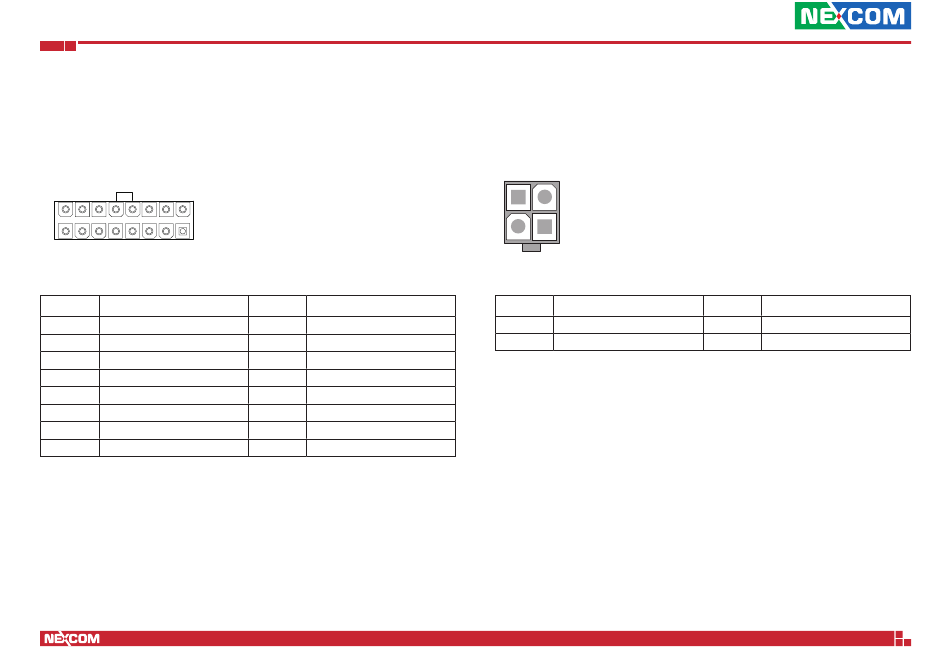

Internal Power Connector

Connector type: 2x8 16-pin header
Connector location: CON1
16 9
16 9
8 1
8 1
Pin Definition
1 P12V
3 P12V
5 P12V
7 P12V
9 GND
11 GND
13 GND
15 GND
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 P12V
4 P12V
6 P12V
8 P12V
10 GND
12 GND
14 GND
16 GND

ATX 12V Internal Power Connector

Connector type: 2x2 4-pin header
Connector location: CON2
1 2
3 4
Pin Definition
1 GND
3 P12V_V1
11
Pin Definition
2 GND
4 P12V_V1
