Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

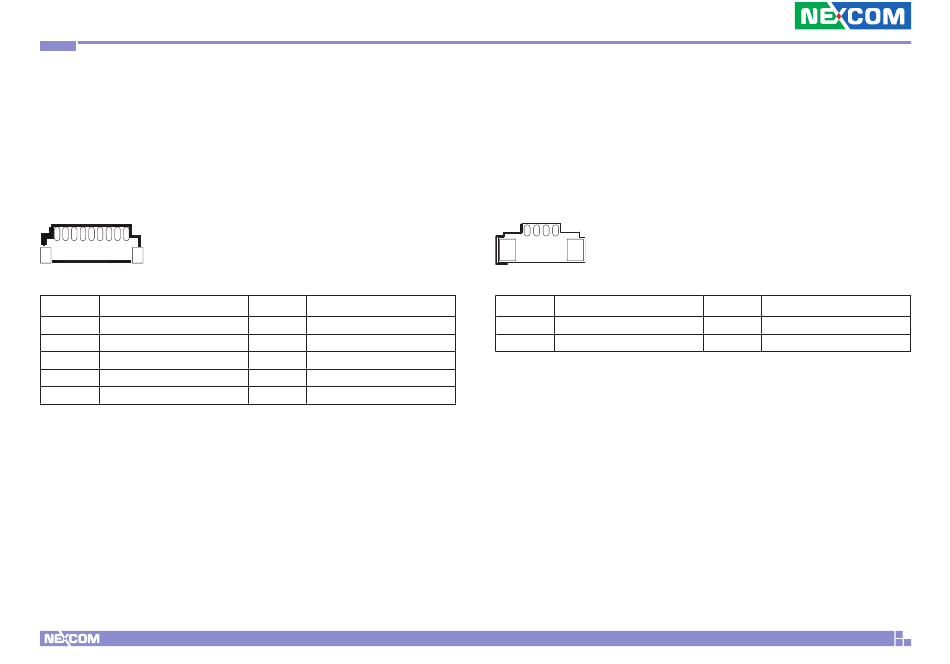

MIC and Line Out Connector

Connector location: MIC_LOUT1
1 9
Pin Definition
1 LOUT_R
3 GND
5 GND
7 MIC_JD
9 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LOUT_JD
4 LOUT_L
6 MIC_R
8 MIC_L

Speaker Connector

Connector location: SPK1
1 4
Pin Definition
1 OUT_L+
3 OUT_R+
11
Pin Definition
2 OUT_L-
4 OUT_R-
