Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External Connector

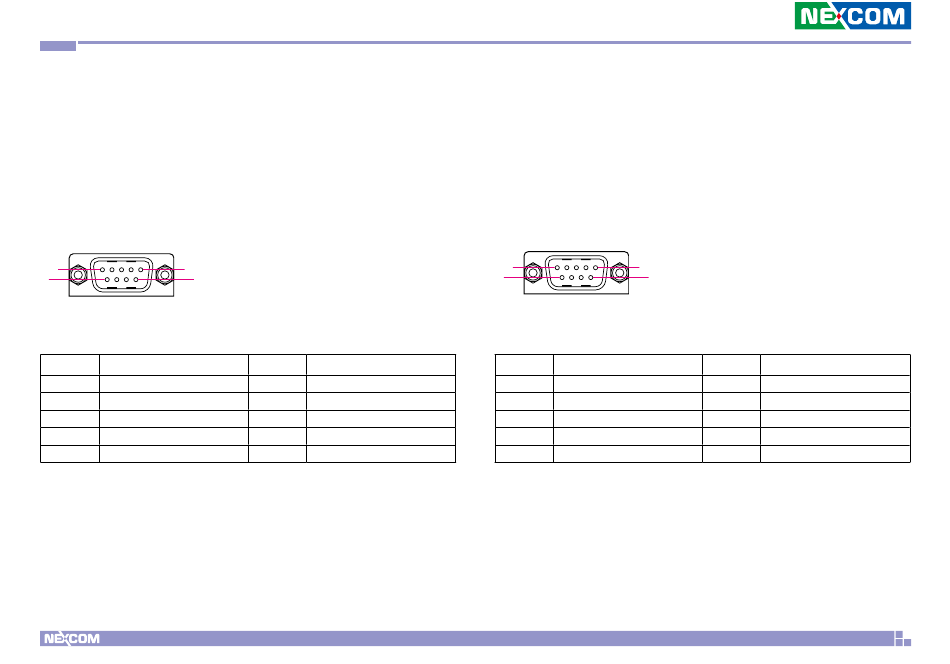

COM1 DB9 Male Connector
Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1
5
6
9
Pin
Definition
1
DCD
3
TXD
5
GND
7
RTS
9
RI
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RXD
4
DTR
6
DSR
8
CTS
COM2 DB9 Male Connector
Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM2
1
5
6
Pin
Definition
1
DCD
3
TXD
5
GND
7
RTS
9
RI
13
9
Pin
Definition
2
RXD
4
DTR
6
DSR
8
CTS
