Chapter 1: Product Introduction

Knowing Your NISE 51

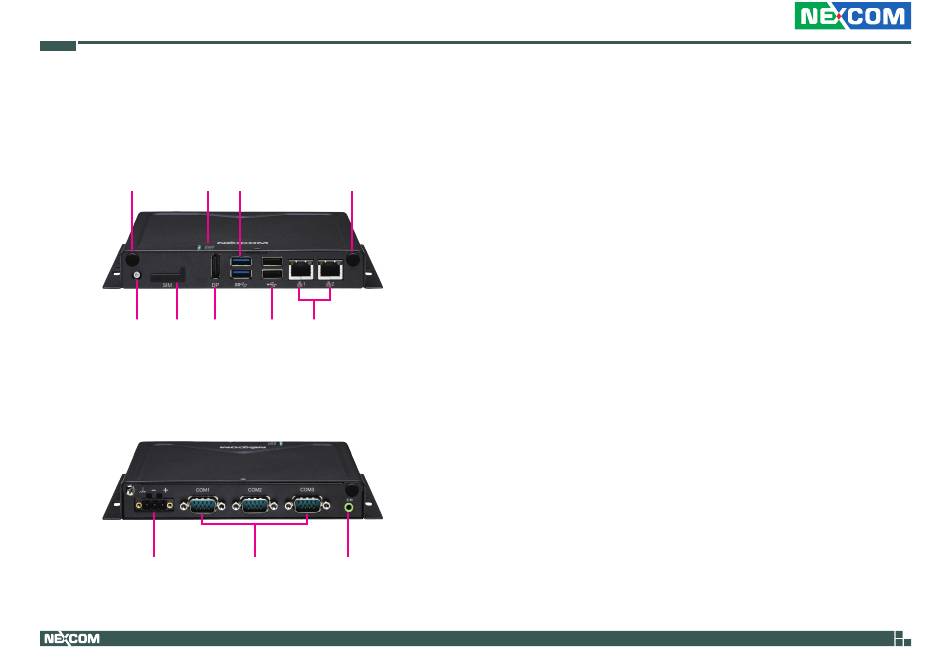

Front Panel

Antenna Hole LEDs
Power SIM DP
Switch

Rear Panel

DC Input
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
USB 3.0 Antenna Hole
USB 2.0 LAN
COM1/2/3 Line-out
Antenna Hole
Used to install external antennas.
Power Switch
Press to power-on or power-off the system.
SIM
Used to insert a SIM card.
LED Indicators
Indicates the hard drive and GPIO (programmable) activity of the system.
DisplayPort (DP)
Used to connect a DisplayPort interface display.
USB 3.0
USB 3.0 ports to connect the system with USB 3.0/2.0 devices.
USB 2.0
USB 2.0 ports to connect the system with USB 2.0/1.1 devices.
LAN
Used to connect the system to a local area network.
DC Input
Used to plug a DC power cord.
COM1 to COM3
Three DB9 ports used to connect serial devices.
– COM1 & COM2: Full RS232 signal
– COM3: RS422/485 auto flow control
Line-out
Used to connect a headphone or a speaker.
