USB3.0 Board Level Camera User Manual
·
The Line Inverter parameter is disabled by default.

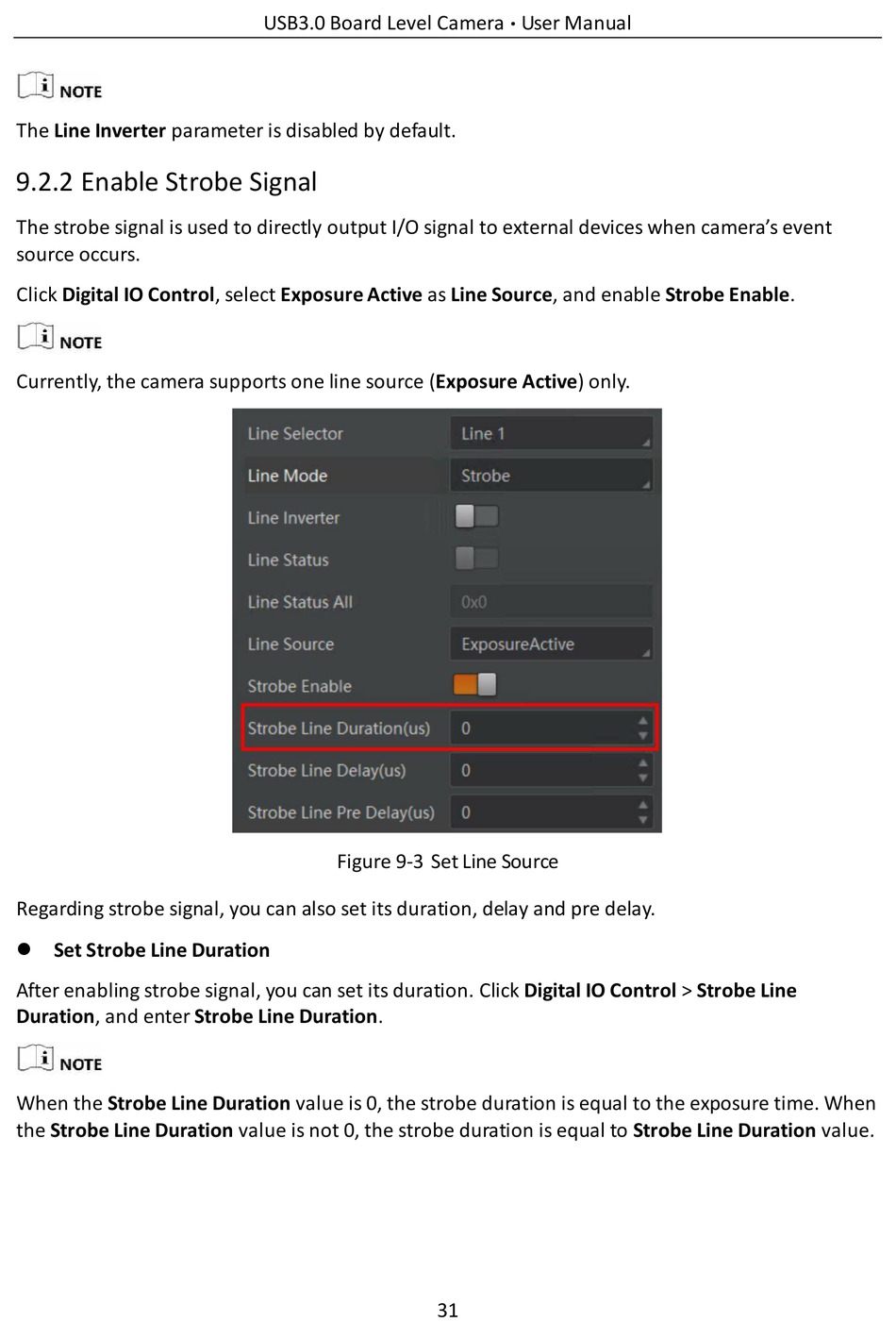

9.2.2 Enable Strobe Signal

The strobe signal is used to directly output I/O signal to external devices when camera's event
source occurs.
Click Digital IO Control, select Exposure Active as Line Source, and enable Strobe Enable.
Currently, the camera supports one line source (Exposure Active) only.
Figure 9-3 Set Line Source
Regarding strobe signal, you can also set its duration, delay and pre delay.
 Set Strobe Line Duration
After enabling strobe signal, you can set its duration. Click Digital IO Control > Strobe Line
Duration, and enter Strobe Line Duration.
When the Strobe Line Duration value is 0, the strobe duration is equal to the exposure time. When
the Strobe Line Duration value is not 0, the strobe duration is equal to Strobe Line Duration value.
31
