USB3.0 Board Level Camera User Manual
·

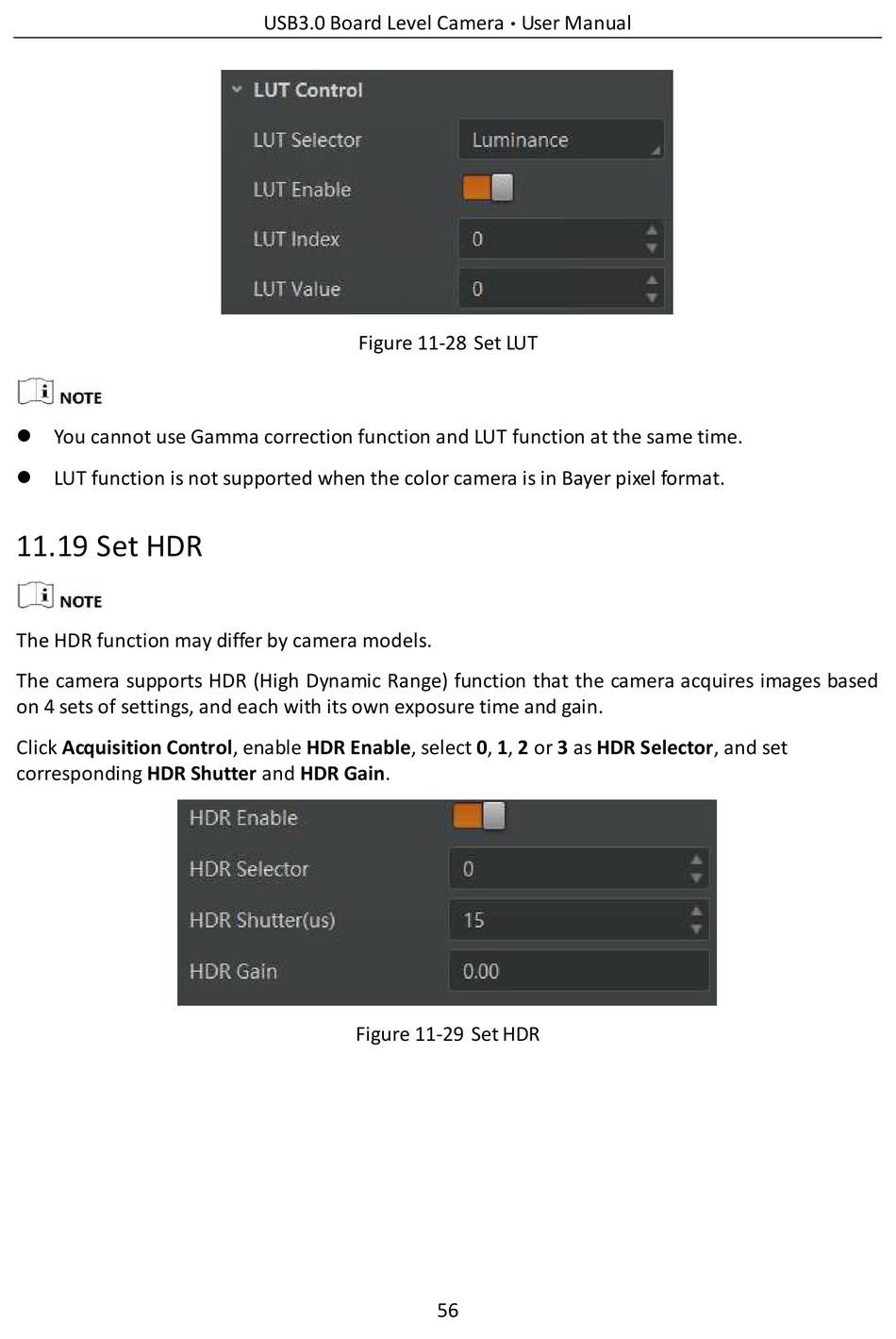

Figure 11-28 Set LUT
 You cannot use Gamma correction function and LUT function at the same time.
 LUT function is not supported when the color camera is in Bayer pixel format.
11.19

Set HDR

The HDR function may differ by camera models.
The camera supports HDR (High Dynamic Range) function that the camera acquires images based
on 4 sets of settings, and each with its own exposure time and gain.
Click Acquisition Control, enable HDR Enable, select 0, 1, 2 or 3 as HDR Selector, and set
corresponding HDR Shutter and HDR Gain.
Figure 11-29 Set HDR
56
