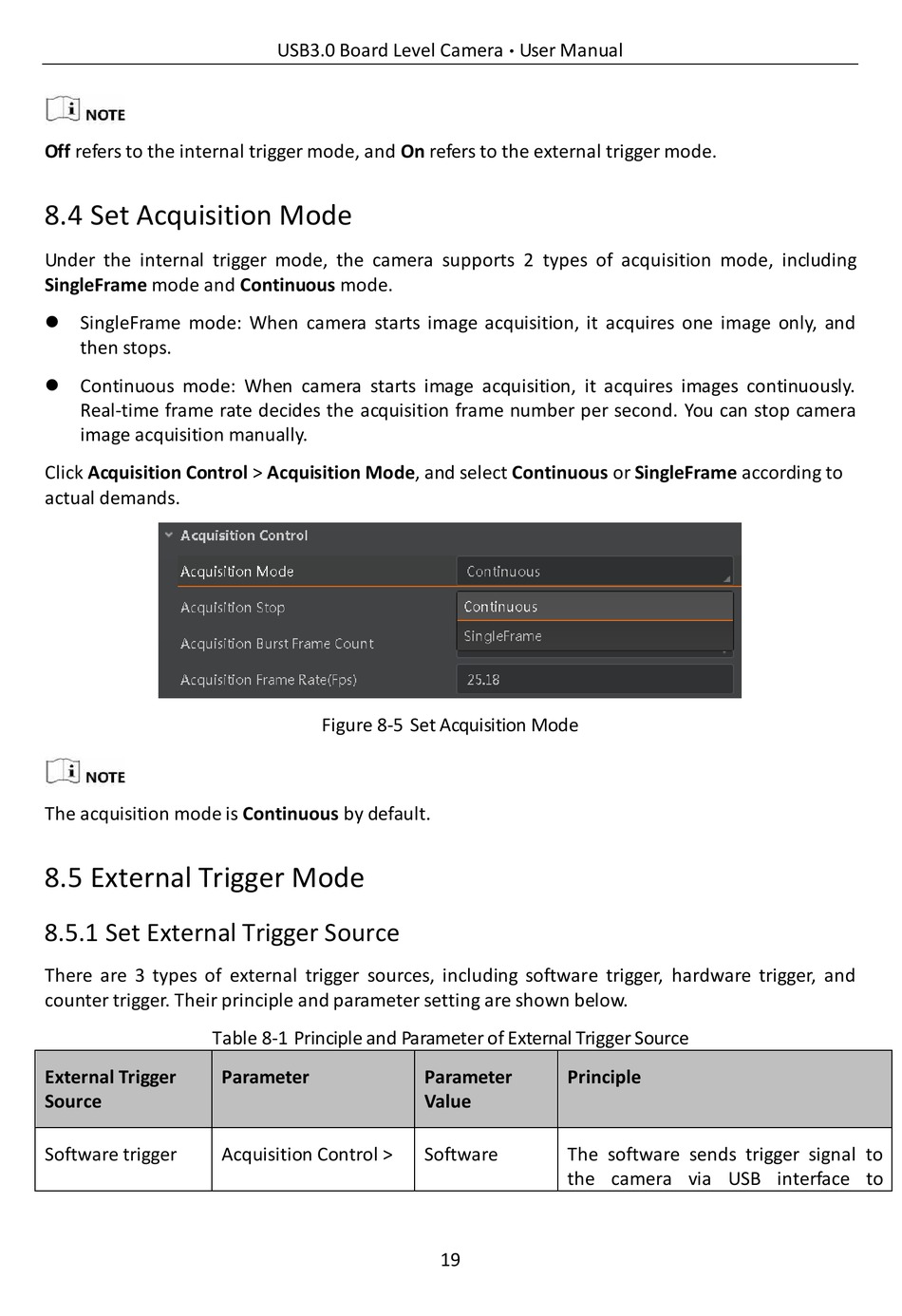

Set Acquisition Mode; External Trigger Mode; Set External Trigger Source - HikRobot USB3.0 User Manual

Off refers to the internal trigger mode, and On refers to the external trigger mode.
8.4

Set Acquisition Mode

Under the internal trigger mode, the camera supports 2 types of acquisition mode, including
SingleFrame mode and Continuous mode.
 SingleFrame mode: When camera starts image acquisition, it acquires one image only, and
then stops.
 Continuous mode: When camera starts image acquisition, it acquires images continuously.
Real-time frame rate decides the acquisition frame number per second. You can stop camera
image acquisition manually.
Click Acquisition Control > Acquisition Mode, and select Continuous or SingleFrame according to
actual demands.
The acquisition mode is Continuous by default.
8.5

External Trigger Mode

8.5.1 Set External Trigger Source

There are 3 types of external trigger sources, including software trigger, hardware trigger, and
counter trigger. Their principle and parameter setting are shown below.
Table 8-1 Principle and Parameter of External Trigger Source
External Trigger
Source
Software trigger
USB3.0 Board Level Camera
Figure 8-5 Set Acquisition Mode
Parameter
Acquisition Control >
User Manual
·
Parameter Principle
Value
Software The software sends trigger signal to
the camera via USB interface to
19
