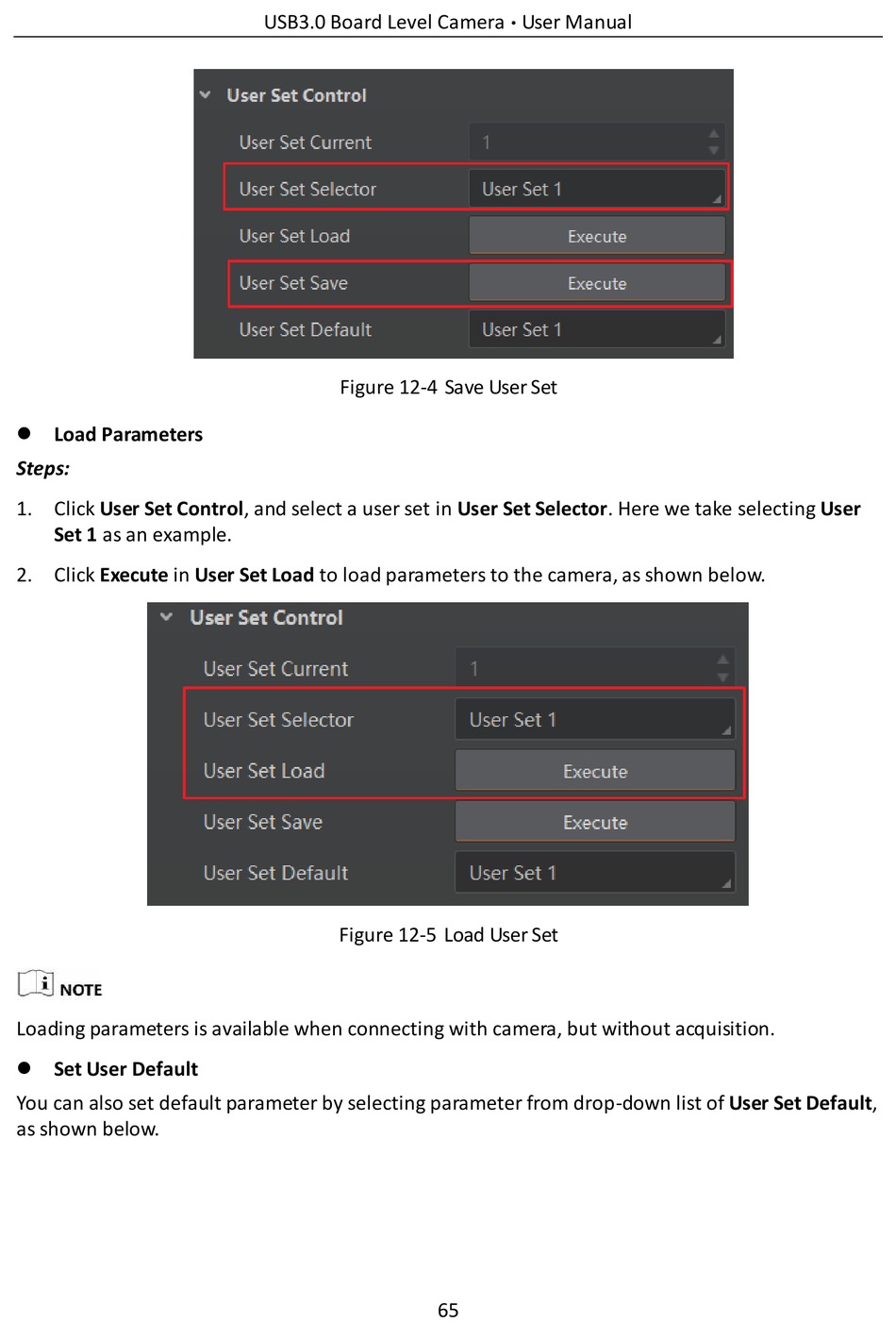

HikRobot USB3.0 User Manual page 74

USB3.0 Board Level Camera User Manual
·
Figure 12-4 Save User Set
 Load Parameters
Steps:
1. Click User Set Control, and select a user set in User Set Selector. Here we take selecting User
Set 1 as an example.
2. Click Execute in User Set Load to load parameters to the camera, as shown below.
Figure 12-5 Load User Set
Loading parameters is available when connecting with camera, but without acquisition.
 Set User Default
You can also set default parameter by selecting parameter from drop-down list of User Set Default,
as shown below.
65
