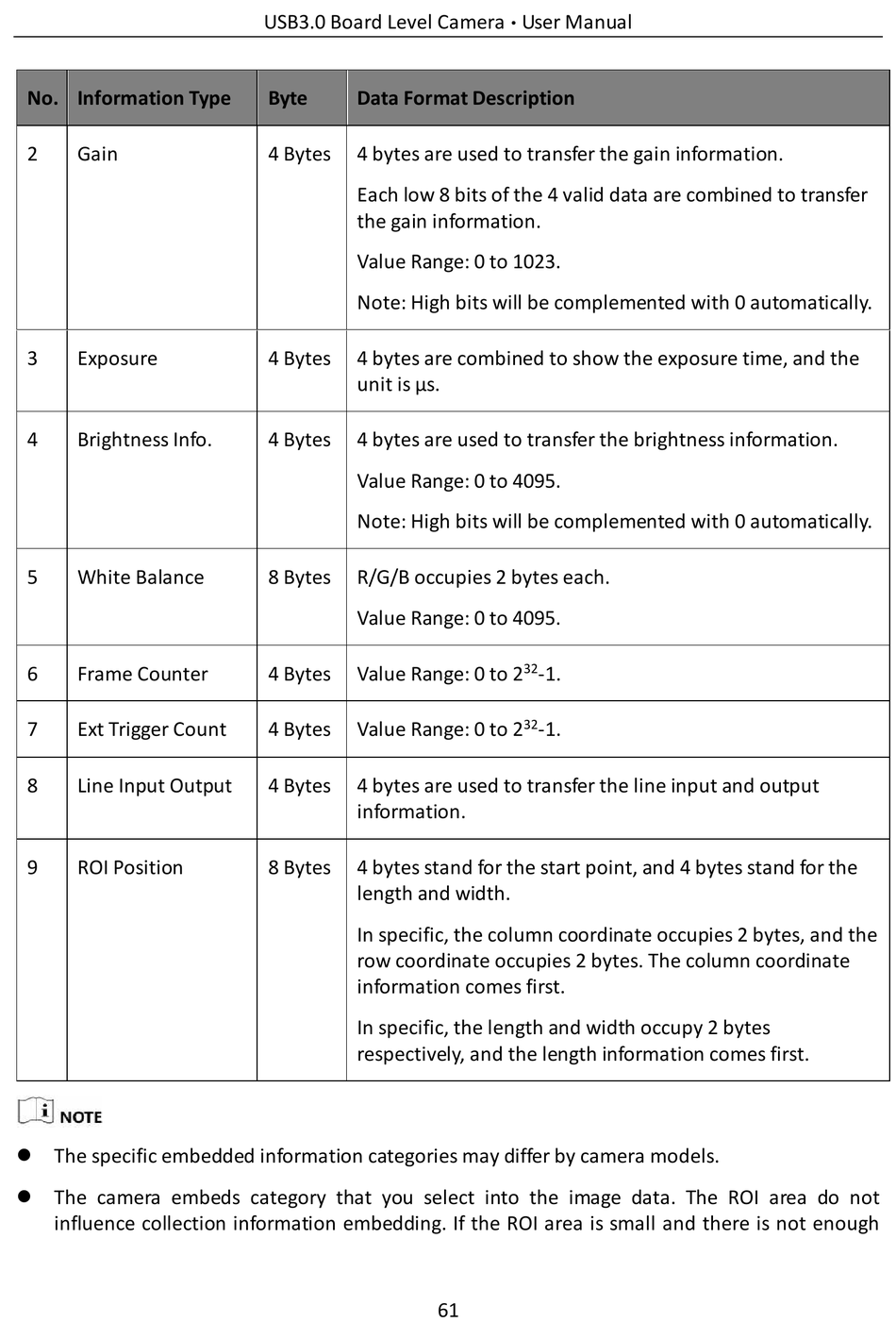

No. Information Type
2 Gain
3 Exposure
4 Brightness Info.
5 White Balance
6 Frame Counter
7 Ext Trigger Count
8 Line Input Output
9 ROI Position
 The specific embedded information categories may differ by camera models.
 The camera embeds category that you select into the image data. The ROI area do not
influence collection information embedding. If the ROI area is small and there is not enough
USB3.0 Board Level Camera
Byte Data Format Description
4 Bytes 4 bytes are used to transfer the gain information.
Each low 8 bits of the 4 valid data are combined to transfer
the gain information.
Value Range: 0 to 1023.
Note: High bits will be complemented with 0 automatically.
4 Bytes 4 bytes are combined to show the exposure time, and the
unit is µs.
4 Bytes 4 bytes are used to transfer the brightness information.
Value Range: 0 to 4095.
Note: High bits will be complemented with 0 automatically.
8 Bytes R/G/B occupies 2 bytes each.
Value Range: 0 to 4095.
4 Bytes Value Range: 0 to 2
4 Bytes Value Range: 0 to 2
4 Bytes 4 bytes are used to transfer the line input and output
information.
8 Bytes 4 bytes stand for the start point, and 4 bytes stand for the
length and width.
In specific, the column coordinate occupies 2 bytes, and the
row coordinate occupies 2 bytes. The column coordinate
information comes first.
In specific, the length and width occupy 2 bytes
respectively, and the length information comes first.
User Manual
·
32
-1.
32
-1.
