Chapter 7 Camera Features; Global Shutter; Rolling Shutter - HikRobot USB3.0 User Manual

7.1 Global Shutter

For camera that supports global shutter, its exposure starts and ends in each line simultaneously.
After the exposure, data readout starts line by line. All pixels expose at the same time, then
readout at different time, as shown below.

7.2 Rolling Shutter

For cameras that support rolling shutter: as soon as the exposure ends, and the data readout starts
simultaneously. After the whole action, the rest of rows start to expose and read out one by one.
All pixels expose at the same time, then readout at different time, as shown below.
USB3.0 Board Level Camera

Chapter 7 Camera Features

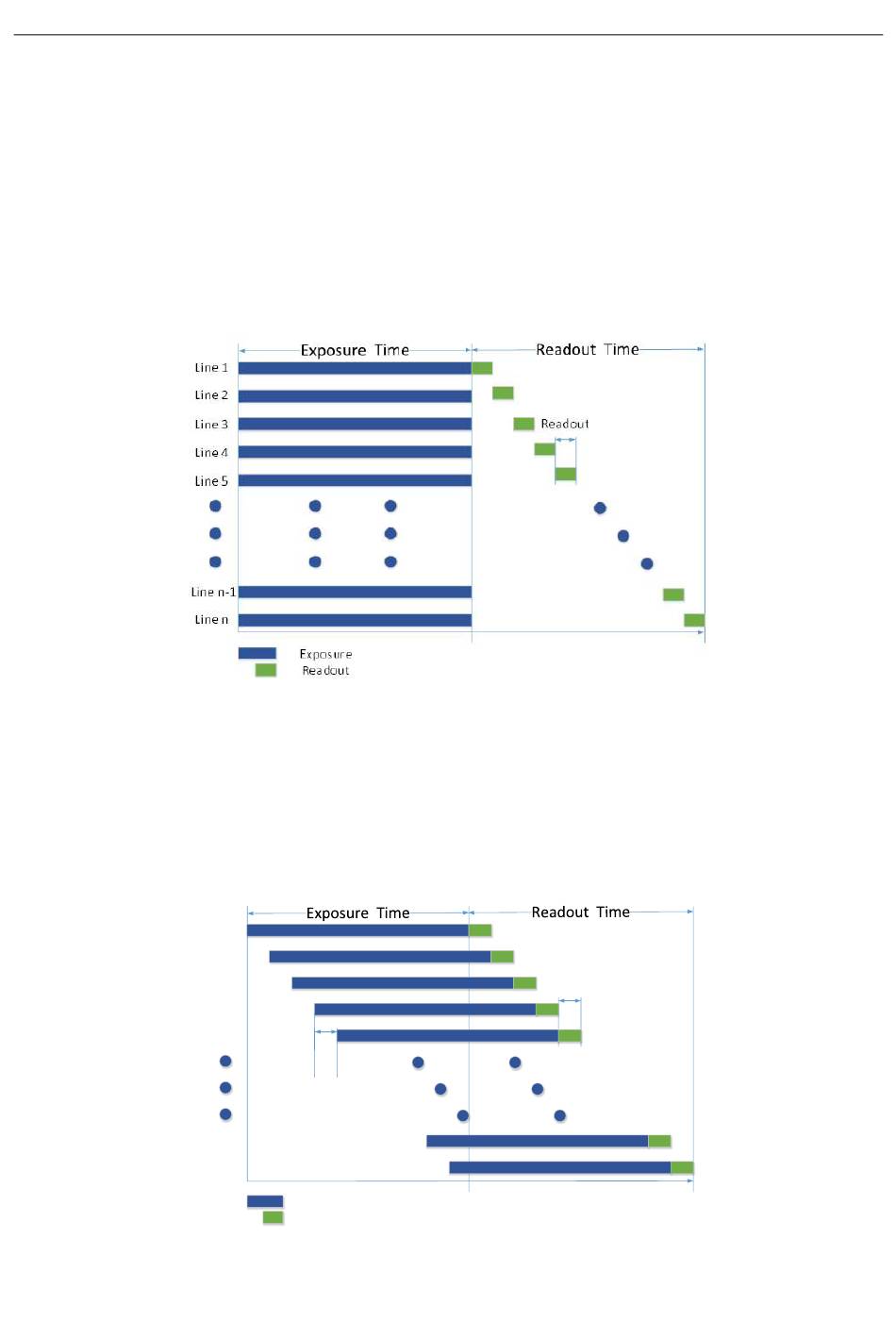

Figure 7-1 Global Shutter
Line 1
Line 2
Line 3
Line 4
Line 5
Offset=Readout
Line n-1
Line n
Exposure
Readout
Figure 7-2 Rolling Shutter
User Manual
·
Readout
13
