The sequence diagram of strobe line delay is shown below.
Trigger_in 1
Strobe
Sensor
Exposure
 Set Strobe Line Pre Delay
The camera also supports the function of strobe line pre delay, which means that the strobe signal
takes effect early than exposure. This function is applied to the external devices that have slow
response speed.
Click Digital IO Control > Strobe Line Pre Delay, and enter Strobe Line Pre Delay according to
actual demands.
USB3.0 Board Level Camera

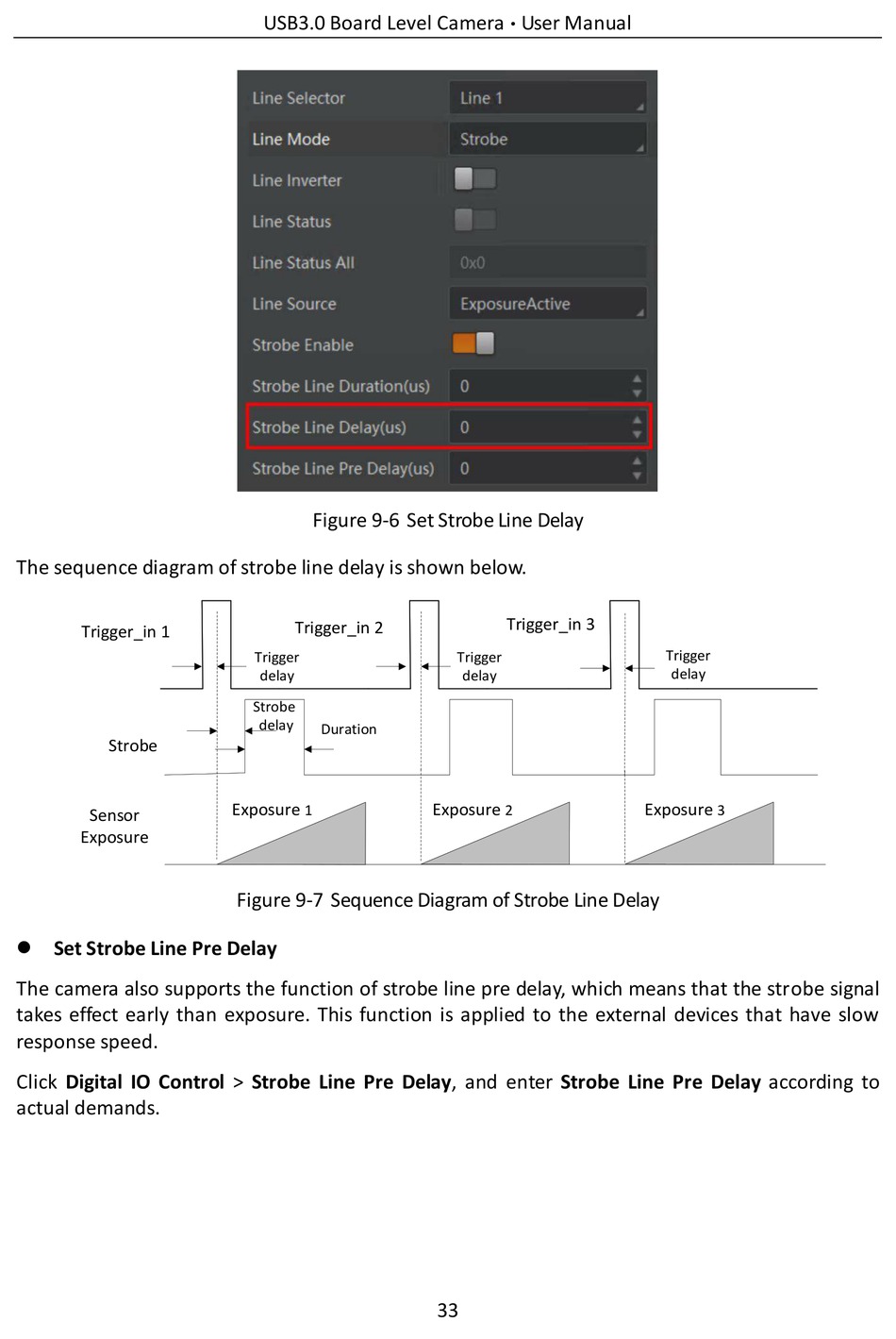

Figure 9-6 Set Strobe Line Delay
Trigger_in 2
Trigger
delay
Strobe
delay
Duration
Exposure
1
Figure 9-7 Sequence Diagram of Strobe Line Delay
User Manual
·
Trigger_in 3
Trigger
delay
Exposure
2
33
Trigger
delay
Exposure
3
