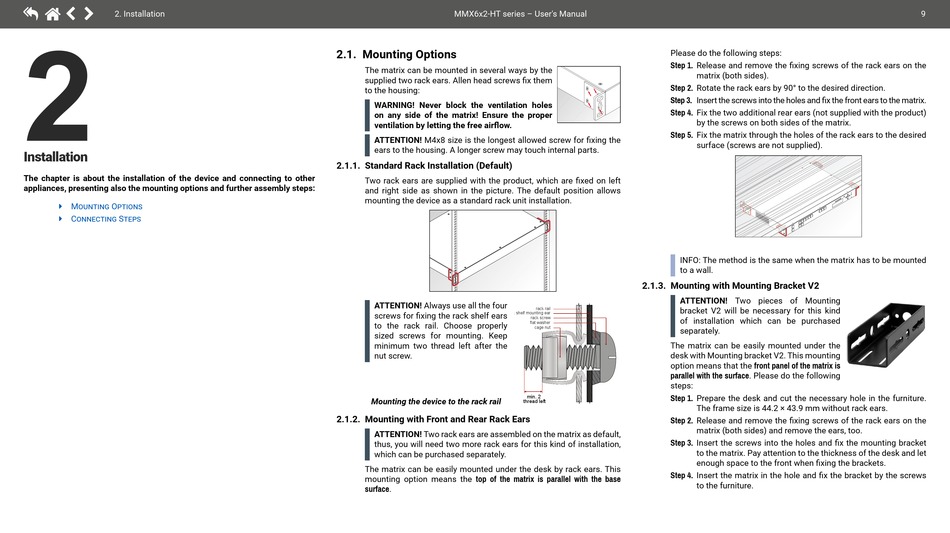

2. Installation

2
I nstallation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps:

Mounting Options

Î
Connecting Steps
Î
MMX6x2-HT series – User's Manual
2.1. Mounting Options
The matrix can be mounted in several ways by the
supplied two rack ears. Allen head screws fix them
to the housing:
WARNING! Never block the ventilation holes
on any side of the matrix! Ensure the proper
ventilation by letting the free airflow.
ATTENTION! M4x8 size is the longest allowed screw for fixing the
ears to the housing. A longer screw may touch internal parts.
2.1.1. Standard Rack Installation (Default)
Two rack ears are supplied with the product, which are fixed on left
and right side as shown in the picture. The default position allows
mounting the device as a standard rack unit installation.
ATTENTION! Always use all the four
screws for fixing the rack shelf ears
rack shelf mounting ear
to the rack rail. Choose properly
sized screws for mounting. Keep
minimum two thread left after the
nut screw.
Mounting the device to the rack rail
2.1.2. Mounting with Front and Rear Rack Ears
ATTENTION! Two rack ears are assembled on the matrix as default,
thus, you will need two more rack ears for this kind of installation,
which can be purchased separately.
The matrix can be easily mounted under the desk by rack ears. This
mounting option means the top of the matrix is parallel with the base
surface.
Please do the following steps:
Step 1. Release and remove the fixing screws of the rack ears on the
matrix (both sides).
Step 2. Rotate the rack ears by 90° to the desired direction.
Step 3. Insert the screws into the holes and fix the front ears to the matrix.
Step 4. Fix the two additional rear ears (not supplied with the product)
by the screws on both sides of the matrix.
Step 5. Fix the matrix through the holes of the rack ears to the desired
surface (screws are not supplied).
INFO: The method is the same when the matrix has to be mounted
to a wall.
2.1.3. Mounting with Mounting Bracket V2
ATTENTION! Two pieces of Mounting
bracket V2 will be necessary for this kind
rack rail
of installation which can be purchased
rack screw
flat washer
cage nut separately.
The matrix can be easily mounted under the
desk with Mounting bracket V2. This mounting
option means that the front panel of the matrix is
parallel with the surface. Please do the following
steps:
Step 1. Prepare the desk and cut the necessary hole in the furniture.
min. 2
thread left
The frame size is 44.2 × 43.9 mm without rack ears.
Step 2. Release and remove the fixing screws of the rack ears on the
matrix (both sides) and remove the ears, too.
Step 3. Insert the screws into the holes and fix the mounting bracket
to the matrix. Pay attention to the thickness of the desk and let
enough space to the front when fixing the brackets.
Step 4. Insert the matrix in the hole and fix the bracket by the screws
to the furniture.
