Extron electronics Multi-Graphic Processor MGP 464 User Manual page 92

Software Configuration and Control, cont'd
3.
4.

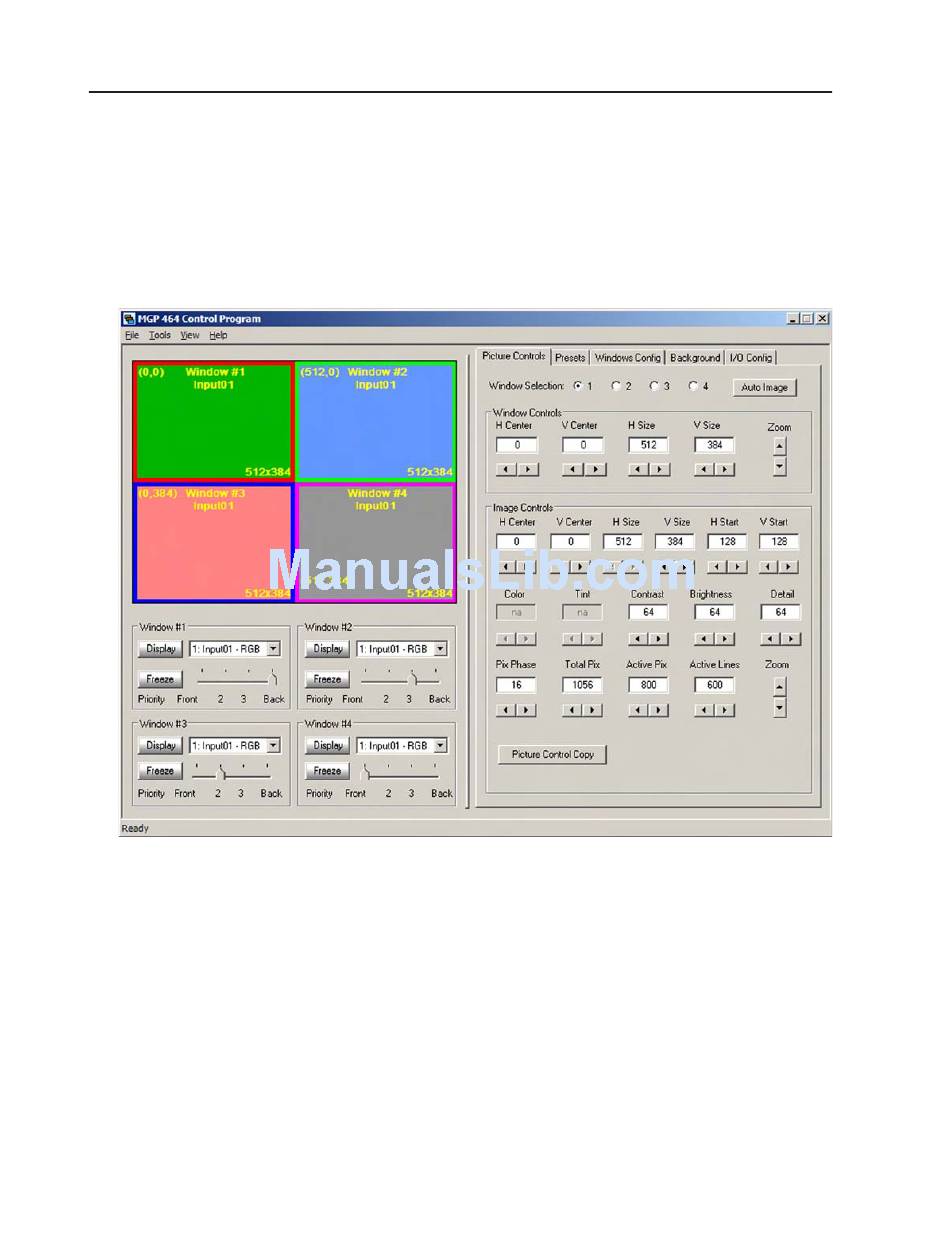

MGP 464 window
5.
4-40 MGP 464 • Software Configuration and Control
On the selected tab, enter the information required for the type of
communication you chose.
• TCP/IP: Enter your MGP's IP address, Telnet port (the default is 23), and
a password if desired.
• RS-232/422: Select your PC's communication port from the Port menu,
and the baud rate from the Speed menu. All other parameters are preset.
Click OK. After a few seconds, the MGP 464 main window opens.
For information on configuring the MGP 464 using the Windows-based
software, refer to the program's help. To access the help file, select Contents
from the Help pull-down menu, or press the F1 key.
