HTML Configuration and Control, cont'd

Uploading an image

To upload a bitmap image to the MGP,
1.

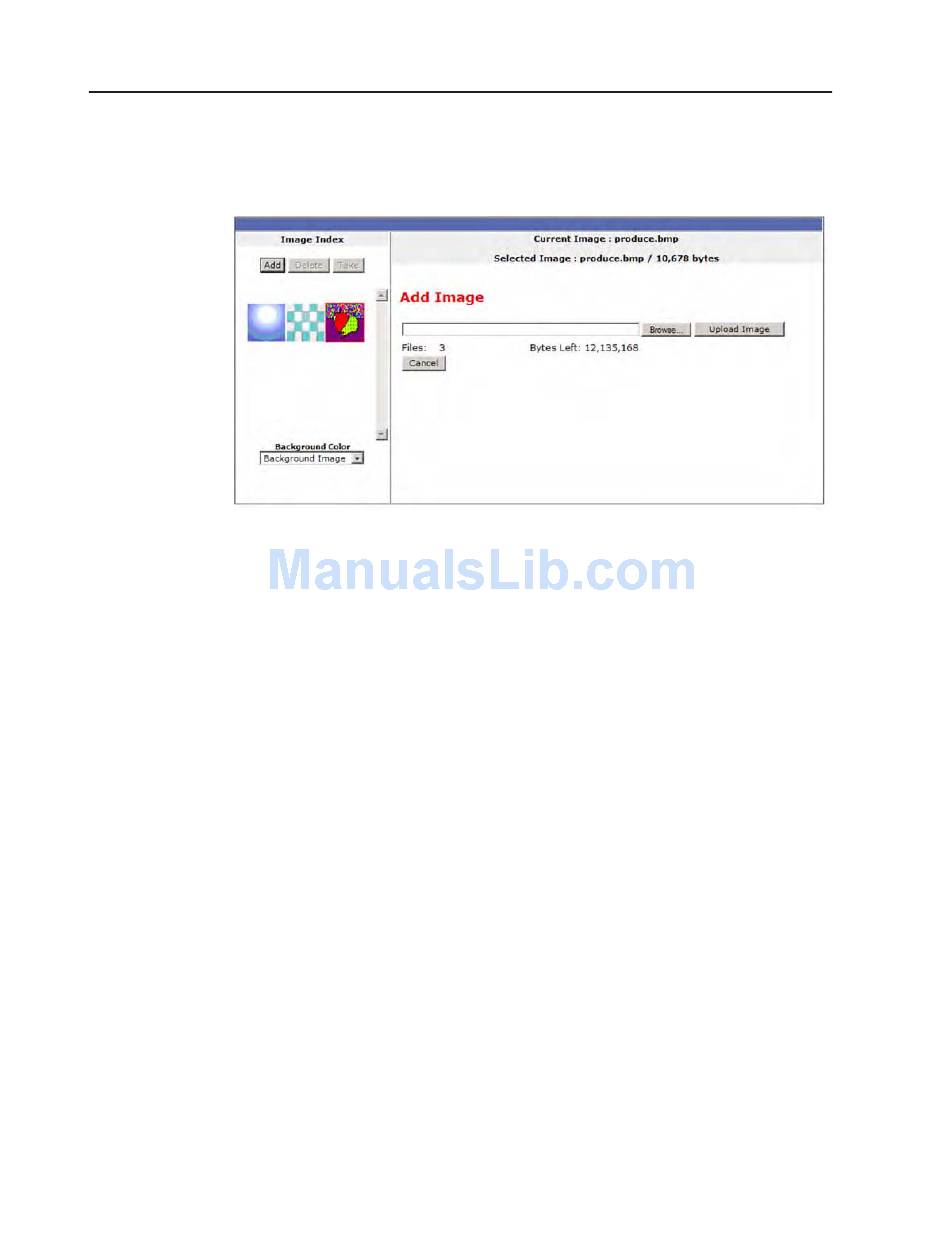

Add Image field on the Image Settings screen
2.
3.
4.

Selecting a background image

To select an uploaded image to be displayed as the background on the output
screen,
1.
2.
5-24 MGP 464 • HTML Configuration and Control
In the Image Index field, click Add. The Add Image field is displayed.
Click Browse to open the Choose file window, and locate the image (.bmp) file
that you want to upload.
Open the image file in the Choose File window. Its name and the path to it are
displayed in the Add Image field on the Image Settings screen.
Click Upload Image. This button changes to Uploading... while the file is being
loaded.
When the uploading is complete, a thumbnail image of the uploaded file is
displayed in the Image Index section.
In the Image Index section, click on the thumbnail of the image you want to
display. A larger version of the selected image appears to the right.
Click Take to select that image for the output background.
