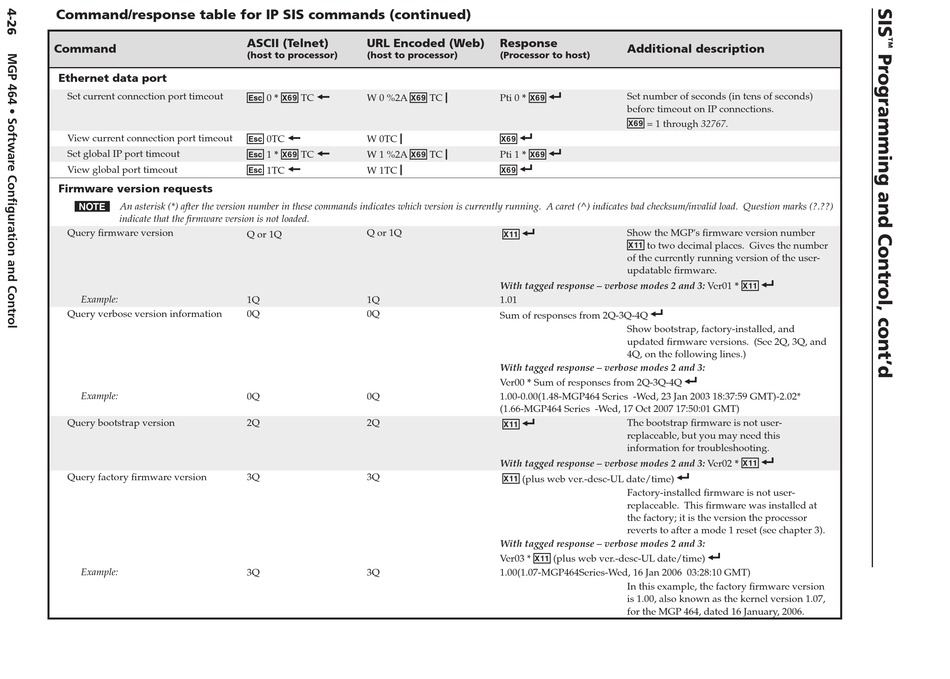

Command/response table for IP SIS commands (continued)
Command
Ethernet data port
Set current connection port timeout
View current connection port timeout
Set global IP port timeout
View global port timeout
Firmware version requests
N An asterisk (*) after the version number in these commands indicates which version is currently running. A caret (^) indicates bad checksum/invalid load. Question marks (?.??)
indicate that the firmware version is not loaded.
Query firmware version
Example:
Query verbose version information
Example:
Query bootstrap version
Query factory firmware version
Example:
PRELIMINARY
ASCII (Telnet) URL Encoded (Web)
(host to processor) (host to processor)
E X6( } X6(
0 * TC W 0 %2A
E } |
0TC W 0TC
E X6( } X6(
1 * TC W 1 %2A
E } |
1TC W 1TC
Q
Q or 1Q
Q or 1Q
1Q 1Q
0Q 0Q
0Q 0Q
2Q 2Q
3Q 3Q
3Q 3Q
Response
(Processor to host)
| X6( ]
TC Pti 0 *
X6( ]
| X6( ]
TC Pti 1 *
X6( ]
X1! ]
With tagged response – verbose modes 2 and 3: Ver01 *
1.01
Sum of responses from 2Q-3Q-4Q
With tagged response – verbose modes 2 and 3:
Ver00 * Sum of responses from 2Q-3Q-4Q
1.00-0.00(1.48-MGP464 Series -Wed, 23 Jan 2003 18:37:59 GMT)-2.02*
(1.66-MGP464 Series -Wed, 17 Oct 2007 17:50:01 GMT)
X1! ]
With tagged response – verbose modes 2 and 3: Ver02 *
X1!
(plus web ver.-desc-UL date/time)
With tagged response – verbose modes 2 and 3:
X1!
Ver03 * (plus web ver.-desc-UL date/time)
1.00(1.07-MGP464Series-Wed, 16 Jan 2006 03:28:10 GMT)
Additional description
Set number of seconds (in tens of seconds)
before timeout on IP connections.
X6(
= 1 through 32767.
Show the MGP's firmware version number
X1!
to two decimal places. Gives the number
of the currently running version of the user-
updatable firmware.
X1! ]
]
Show bootstrap, factory-installed, and
updated firmware versions. (See 2Q, 3Q, and
4Q, on the following lines.)
]
The bootstrap firmware is not user-
replaceable, but you may need this
information for troubleshooting.
X1! ]
]
Factory-installed firmware is not user-
replaceable. This firmware was installed at
the factory; it is the version the processor
reverts to after a mode 1 reset (see chapter 3).
]
In this example, the factory firmware version
is 1.00, also known as the kernel version 1.07,
for the MGP 464, dated 16 January, 2006.
