Operation, cont'd

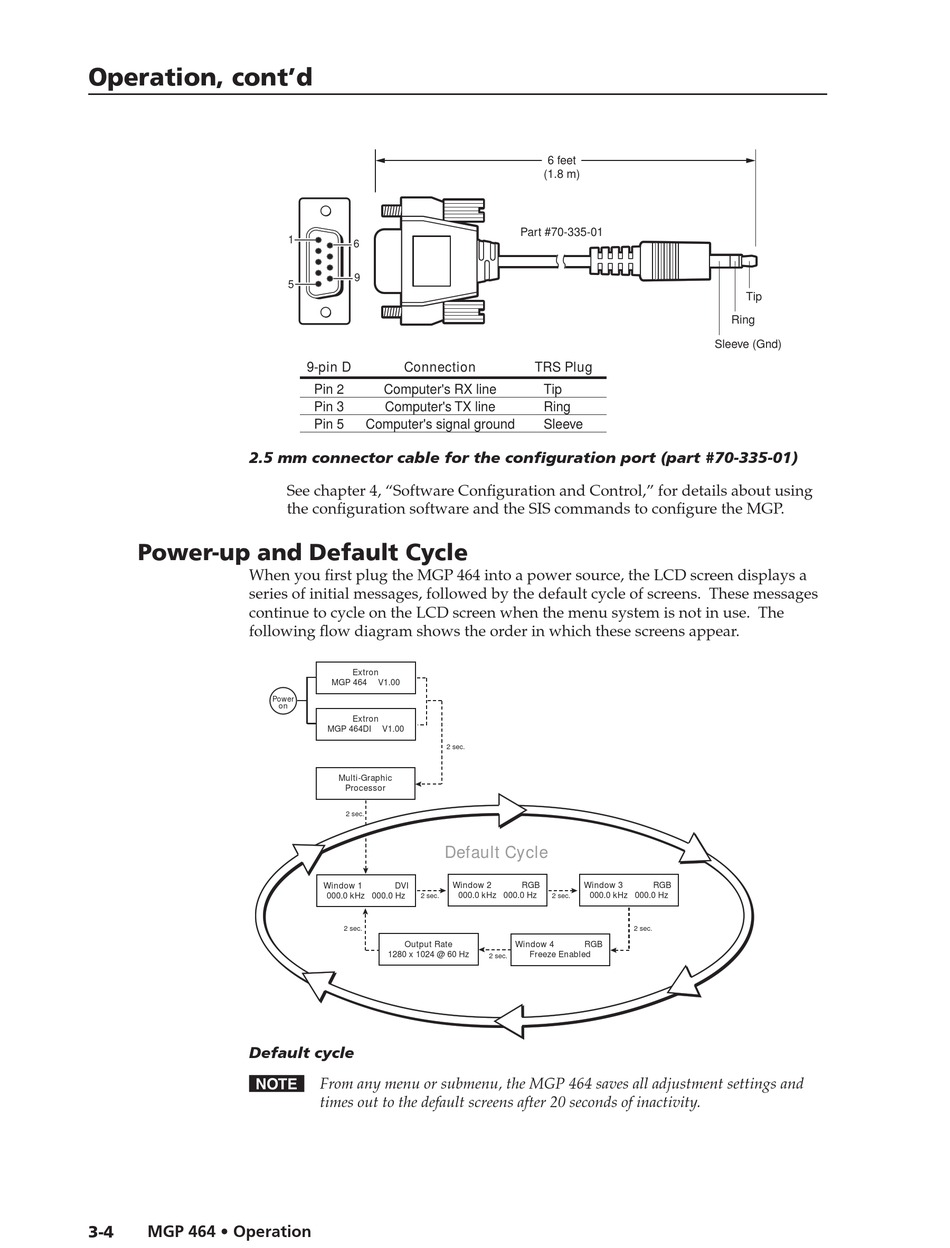

2.5 mm connector cable for the configuration port (part #70-335-01)

Power-up and Default Cycle

When you first plug the MGP 464 into a power source, the LCD screen displays a
series of initial messages, followed by the default cycle of screens. These messages
continue to cycle on the LCD screen when the menu system is not in use. The
following flow diagram shows the order in which these screens appear.
Default cycle
N From any menu or submenu, the MGP 464 saves all adjustment settings and
3-4 MGP 464 • Operation
9DBF-2.5mm TRS cable_031504.eps
1
6
9
5
9-pin D Connection
Pin 2 Computer's RX line
Pin 3 Computer's TX line
Pin 5 Computer's signal ground
See chapter 4, "Software Configuration and Control," for details about using
the configuration software and the SIS commands to configure the MGP.
Extron
MGP 464 V1.00
Power
on
Extron
MGP 464DI V1.00
2 sec.
Multi-Graphic
Processor
2 sec.
Default Cycle
Window 1 DVI
000.0 kHz 000.0 Hz
2 sec.
2 sec.
Output Rate
1280 x 1024 @ 60 Hz
times out to the default screens after 20 seconds of inactivity.
6 feet
(1.8 m)
Part #70-335-01
TRS Plug
Tip
Ring
Sleeve
Window 2 RGB Window 3
000.0 kHz 000.0 Hz 000.0 kHz 000.0 Hz
2 sec.
Window 4 RGB
Freeze Enabled
2 sec.
Tip
Ring
Sleeve (Gnd)
RGB
2 sec.
