• Circuit overloading — When connecting the equipment to the supply
circuit, consider the connection of the equipment to the supply circuit and
the effect that circuit overloading might have on overcurrent protection and
supply wiring. Consider equipment nameplate ratings when addressing this
concern.
• Reliable earthing (grounding) — Maintain reliable grounding of rack-
mounted equipment. Pay particular attention to supply connections other
than direct connections to the branch circuit (such as the use of power strips).

Rack mounting procedure

For optional rack mounting, do not install the rubber feet. To mount the MGP 464
in a rack,
1. Attach the included rack/through-desk mounting brackets (part #70-155-01)
to the unit using eight machine screws supplied with the mounting kit. (See
the illustration on the next page.)
2. Insert the unit into the rack and align the holes in the mounting brackets with
the holes in the rack. Use four machine screws to attach the brackets to the
rack.

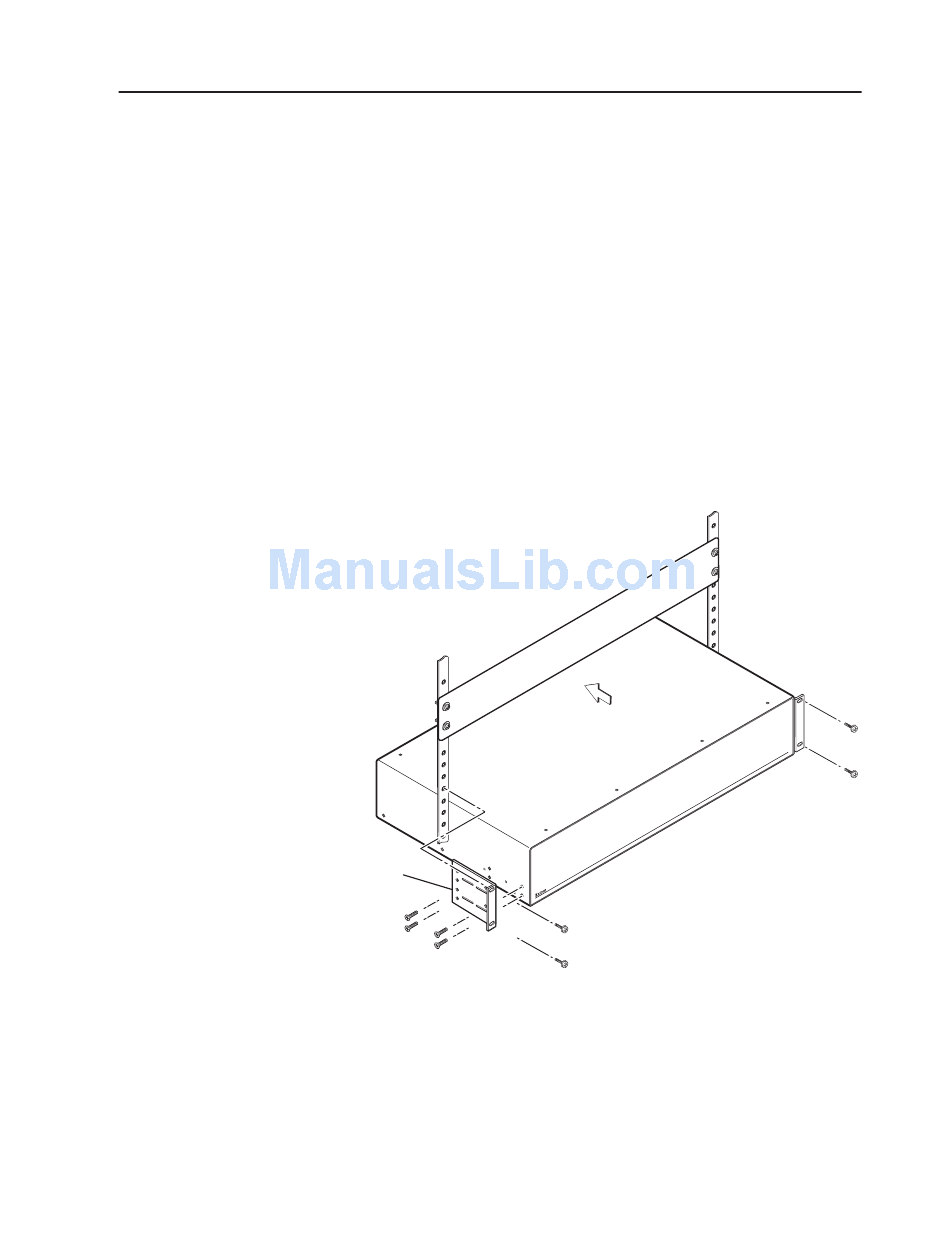

MBD 249
2U Rack Mounting
Bracket (Use four
lower holes.)
Rack mounting the MGP 464
MGP 464 • Installation 2-3
