Extron electronics Multi-Graphic Processor MGP 464 User Manual page 71

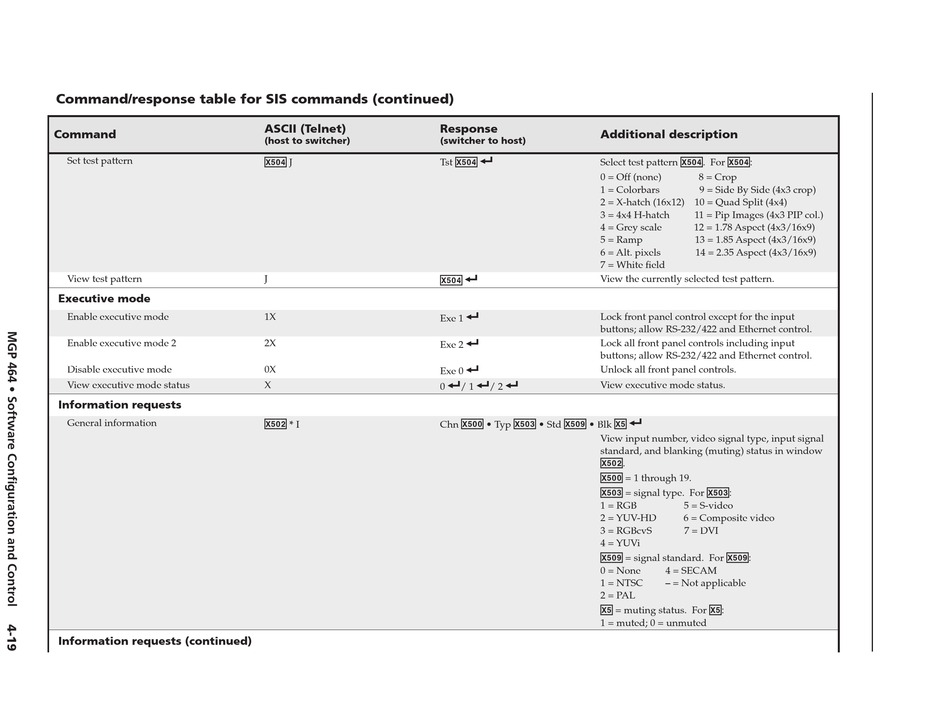

Command/response table for SIS commands (continued)
Command
Set test pattern
View test pattern
Executive mode
Enable executive mode
Enable executive mode 2
Disable executive mode
View executive mode status
Information requests
General information
Information requests (continued)
ASCII (Telnet) Response
(host to switcher) (switcher to host)
X50$
J Tst
X50$ ]
J
1X
Exe 1
2X
Exe 2
0X
Exe 0
X
0
X50@
* I Chn
PRELIMINARY
Additional description
X50$ ]
Select test pattern
0 = Off (none)
1 = Colorbars
2 = X-hatch (16x12) 10 = Quad Split (4x4)
3 = 4x4 H-hatch
4 = Grey scale
5 = Ramp
6 = Alt. pixels
7 = White field
View the currently selected test pattern.
]
Lock front panel control except for the input
buttons; allow RS-232/422 and Ethernet control.
]
Lock all front panel controls including input
buttons; allow RS-232/422 and Ethernet control.
]
Unlock all front panel controls.
] ] ]
View executive mode status.
/ 1 / 2
X50) X50# X50( X% ]
• Typ • Std • Blk
View input number, video signal type, input signal
standard, and blanking (muting) status in window
X50@
.
X50)
= 1 through 19.
X50#
= signal type. For
1 = RGB
2 = YUV-HD
3 = RGBcvS
4 = YUVi
X50(
= signal standard. For
0 = None
1 = NTSC
2 = PAL
X%
= muting status. For
1 = muted; 0 = unmuted
X50$ X50$
. For :
8 = Crop
9 = Side By Side (4x3 crop)
11 = Pip Images (4x3 PIP col.)
12 = 1.78 Aspect (4x3/16x9)
13 = 1.85 Aspect (4x3/16x9)
14 = 2.35 Aspect (4x3/16x9)
X50#
:
5 = S-video
6 = Composite video
7 = DVI
X50(
:
4 = SECAM
– = Not applicable
X%
:
