Operation, cont'd

Making changes to the serial port and IP configuration

To make changes to the serial port configuration, IP address, DHCP mode, Gateway
address, and/or Subnet mask, you must access the edit level screens as follows:
1.
2.
3.
4.
Screens are provided for editing the following parameters:
•
•
N DHCP must be off before you can edit the IP addresses.
•
•
•
N You cannot edit the MAC address; there is no editing screen for it.
Rotate either Adjust knob
to adjust the submenus.

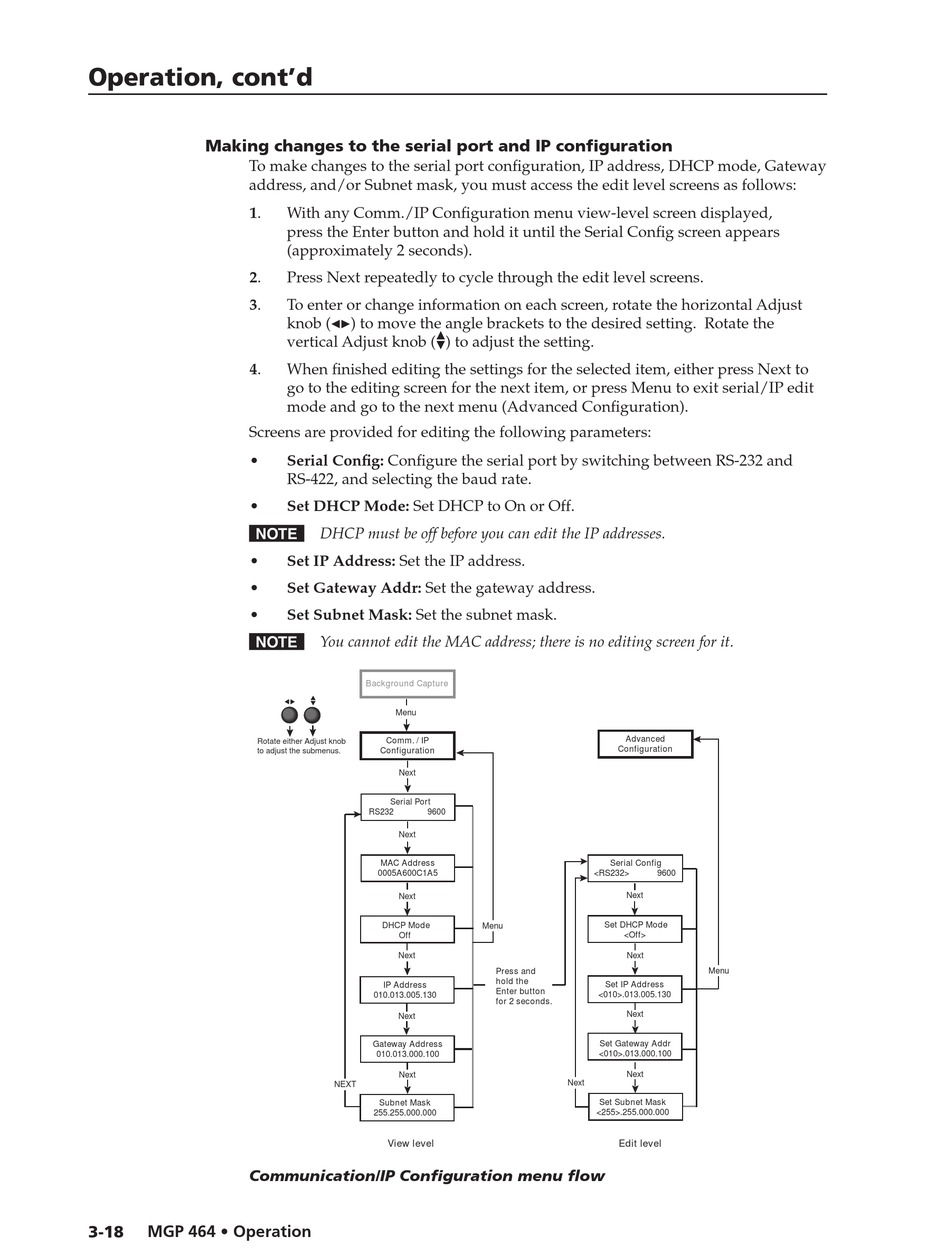

Communication/IP Configuration menu flow
3-18 MGP 464 • Operation
With any Comm./IP Configuration menu view-level screen displayed,
press the Enter button and hold it until the Serial Config screen appears
(approximately 2 seconds).
Press Next repeatedly to cycle through the edit level screens.
To enter or change information on each screen, rotate the horizontal Adjust
knob ( ) to move the angle brackets to the desired setting. Rotate the
[
{
vertical Adjust knob ( ) to adjust the setting.
When finished editing the settings for the selected item, either press Next to
go to the editing screen for the next item, or press Menu to exit serial/IP edit
mode and go to the next menu (Advanced Configuration).
Serial Config: Configure the serial port by switching between RS-232 and
RS-422, and selecting the baud rate.
Set DHCP Mode: Set DHCP to On or Off.
Set IP Address: Set the IP address.
Set Gateway Addr: Set the gateway address.
Set Subnet Mask: Set the subnet mask.
Background Capture
Menu
Comm. / IP
Configuration
Next
Serial Port
RS232 9600
Next
MAC Address
0005A600C1A5
Next
DHCP Mode
Off
Next
IP Address
010.013.005.130
Next
Gateway Address
010.013.000.100
Next
NEXT
Subnet Mask
255.255.000.000
View level
Advanced
Configuration
Serial Config
<RS232> 9600
Next
Set DHCP Mode
Menu
<Off>
Next
Press and
hold the
Set IP Address
Enter button
<010>.013.005.130
for 2 seconds.
Next
Set Gateway Addr
<010>.013.000.100
Next
Next
Set Subnet Mask
<255>.255.000.000
Edit level
