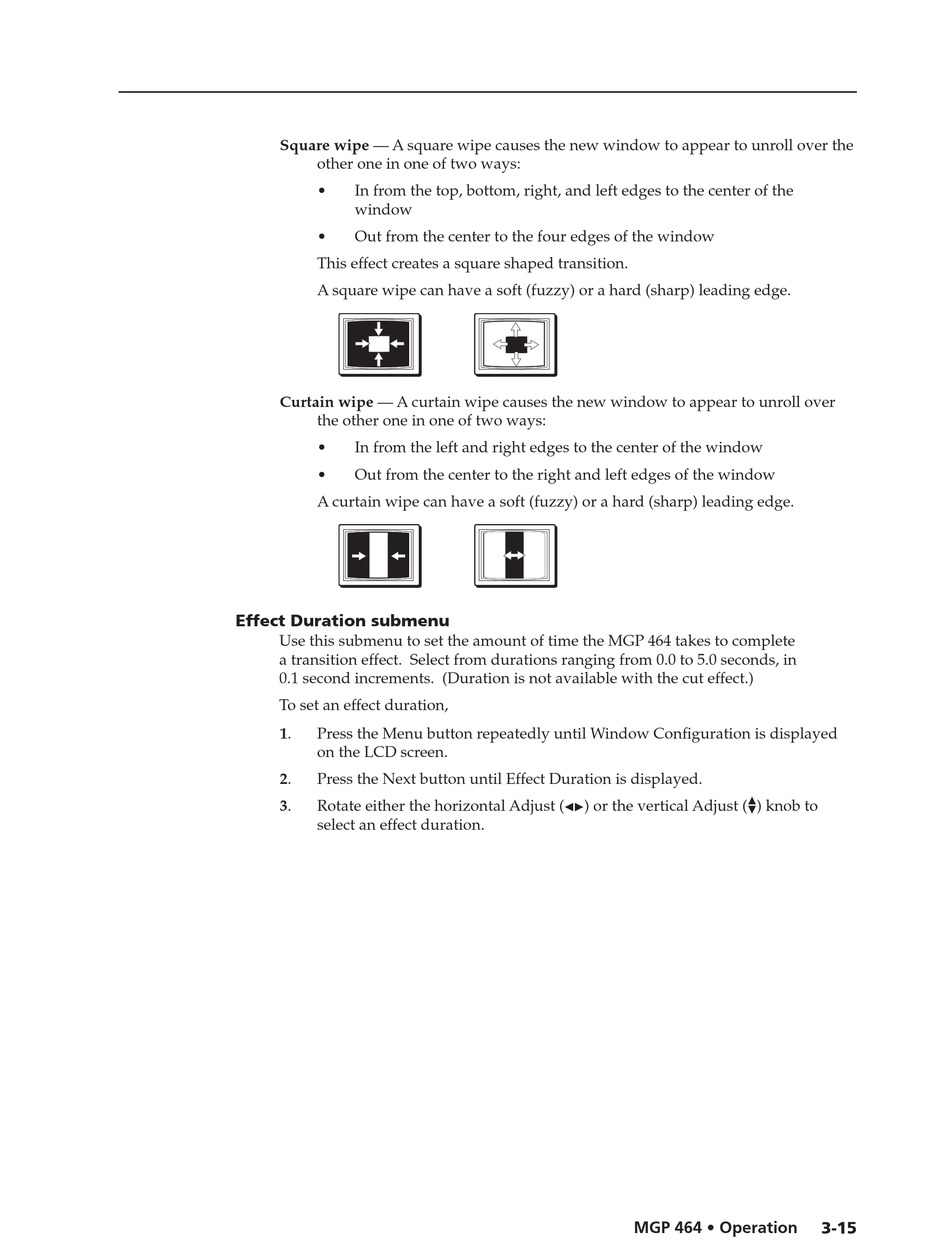

Square wipe — A square wipe causes the new window to appear to unroll over the
other one in one of two ways:
• In from the top, bottom, right, and left edges to the center of the
window
• Out from the center to the four edges of the window
This effect creates a square shaped transition.
A square wipe can have a soft (fuzzy) or a hard (sharp) leading edge.
Curtain wipe — A curtain wipe causes the new window to appear to unroll over
the other one in one of two ways:
• In from the left and right edges to the center of the window
• Out from the center to the right and left edges of the window
A curtain wipe can have a soft (fuzzy) or a hard (sharp) leading edge.

Effect Duration submenu

Use this submenu to set the amount of time the MGP 464 takes to complete
a transition effect. Select from durations ranging from 0.0 to 5.0 seconds, in
0.1 second increments. (Duration is not available with the cut effect.)
To set an effect duration,
1. Press the Menu button repeatedly until Window Configuration is displayed
on the LCD screen.
2. Press the Next button until Effect Duration is displayed.
3. Rotate either the horizontal Adjust (
select an effect duration.
) or the vertical Adjust ({) knob to
[
MGP 464 • Operation 3-15
